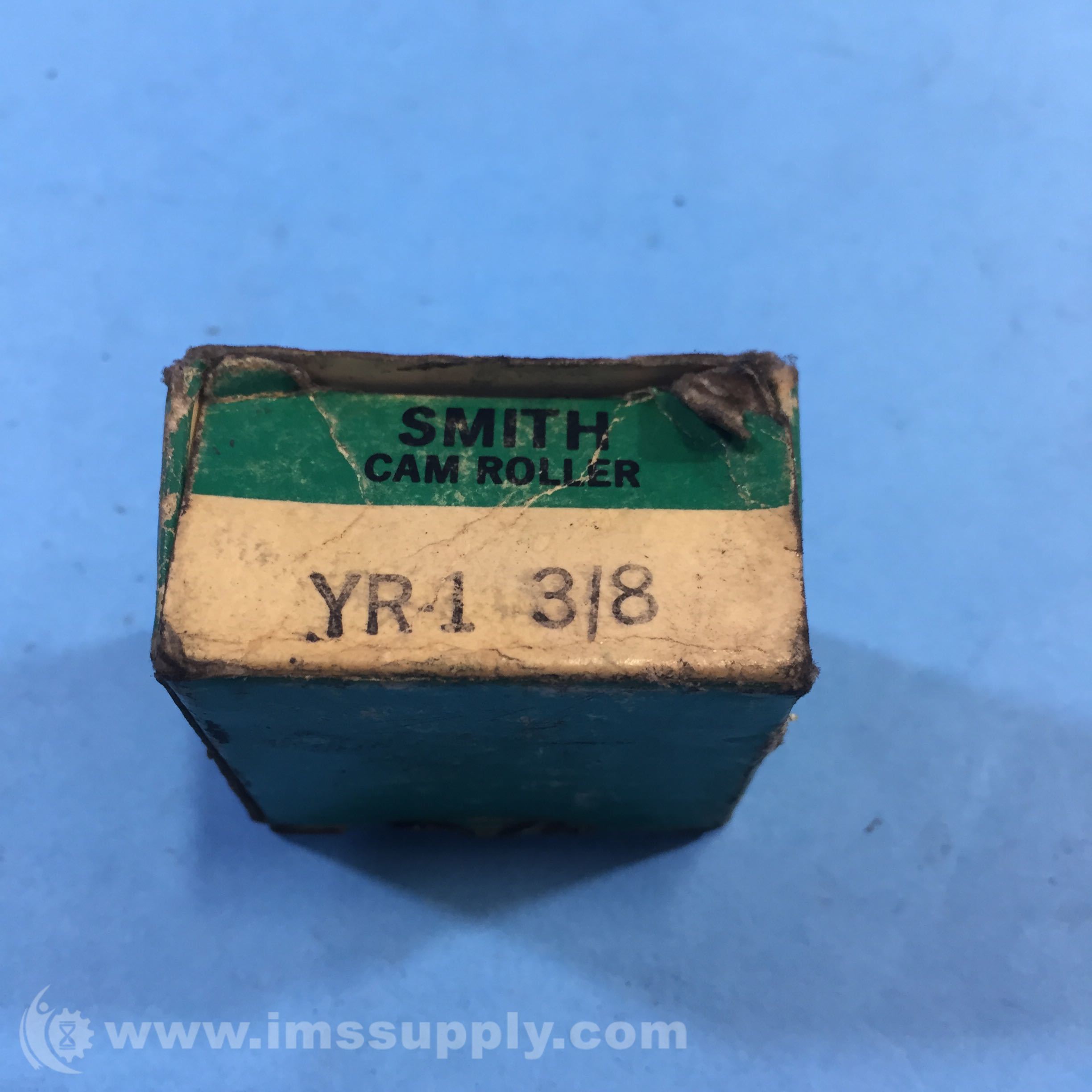

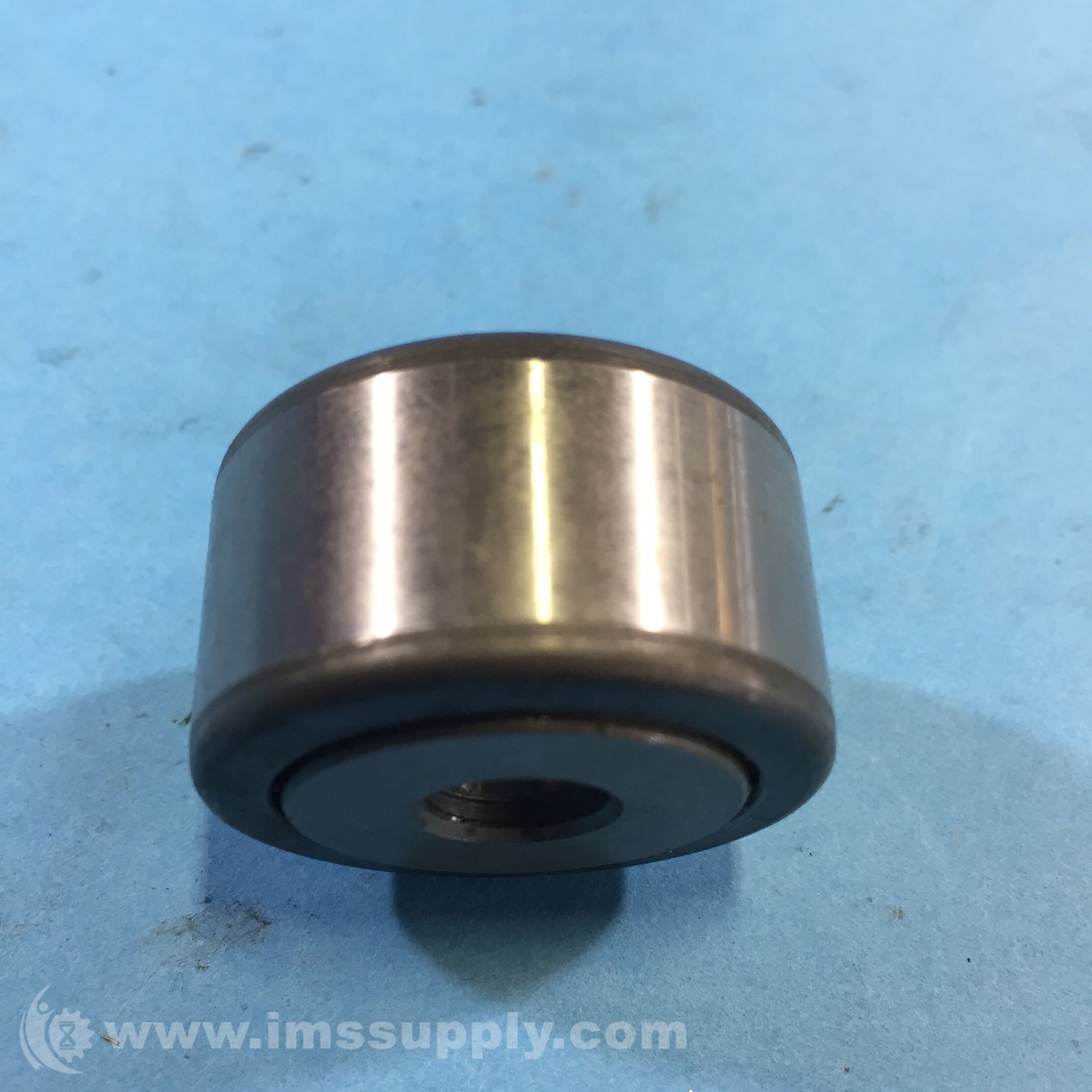

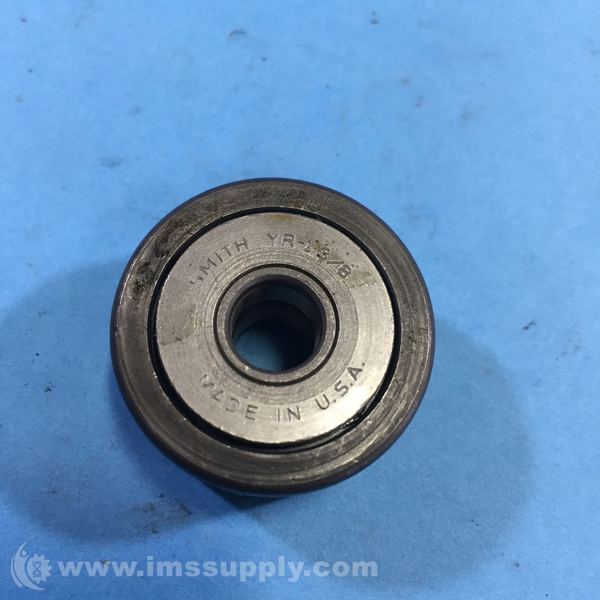

SMITH BEARING YR-1-3/8 YOKE TYPE INDUSTRIAL CAM FOLLOWER
Quick Overview
Manufactured By: SMITH BEARING
Manufacturer Part Number: YR-1-3/8
IMS Product Code: 1864154
Packaging: Sold Individually
Description:
Smith Bearing YR-1-3/8 Yoke Type Industrial Cam Follower
Yoke Type Industrial Cam Follower with needle rollers, made of High-Alloy Bearing Steel, open closure type.
Specifications
- D (Roller O.D.): 1.375
- B (Roller Width): 0.750
- A (Bore Nominal): 0.3750
- W (Overall Width): 0.8125
- Basic Dynamic Rating: 4470 lbs
- Max. Static Capacity: 8600 lbs
- D (Roller O.D.) Tolerance: +.000/-.001
- B (Roller Width) Tolerance: +.000/-.005
- W (Overall Width) Tolerance: +.005/-.010
- Recomm. Shaft Dia. Press Fit Max.: 0.3755
- Recomm. Shaft Dia. Press Fit Min.: 0.3751
- Recomm. Shaft Dia. Slip Fit Max.: 0.3747
- Recomm. Shaft Dia. Slip Fit Min.: 0.3743
- Tolerance: +.0002/-.0004
- E (Min. Clamping Dia.): 3/4
- System of Measurement: Inch
- Material: 52100 or Equivalent
- Roller Shape: Flat
- Bearing Element: Needle Rollers
- Number Of Rows: 1
- Closure Type: Open
- Radial Dynamic Load Capacity: 4470 lbf
- Radial Static Load Capacity: 8600 lbf
- Roller Material: High-Alloy Bearing Steel
- Finish Coating: Black Oxide
- Series: YR Series
- Weight: 0.3 lbs
