SPIRAX SARCO FTB-30 FLOAT & THERMOSTATIC STEAM TRAP
Quick Overview
Manufactured By: SPIRAX SARCO LIMITED
Manufacturer Part Number: FTB-30
IMS Product Code: 2149964
Packaging: Sold Individually
Description:

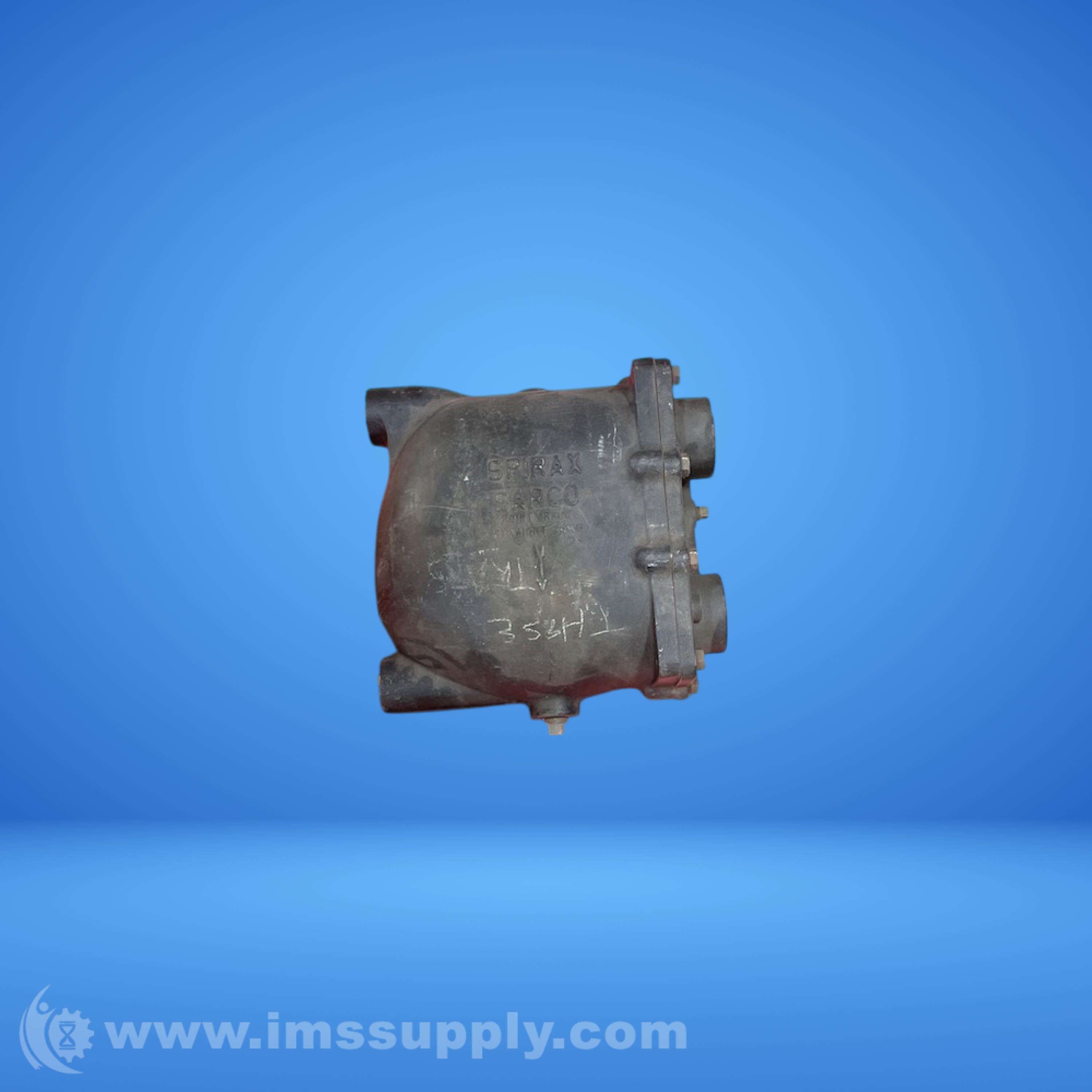

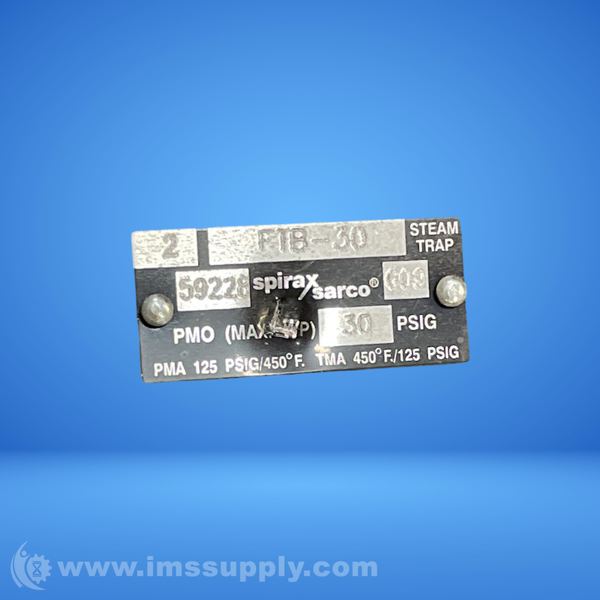

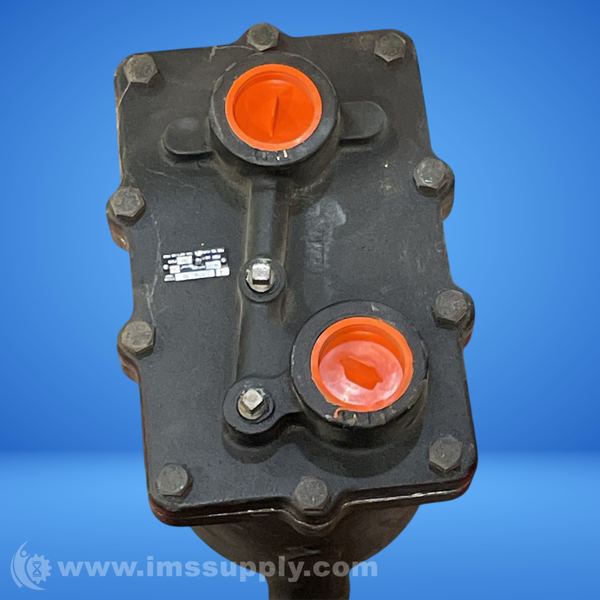

Spirax Sarco FTB-30 Float & Thermostatic Steam Trap
Float and thermostatic steam trap with 2" connection, cast iron body, 30 psi maximum operating pressure, and 45,500 pounds per hour condensate capacity.
Specifications
- Body Material: Cast Iron
- Condensate Capacity: 45500 Pound per Hour
- End Connection: Threaded x Threaded
- Material Specification: ASTM A126 CL B
- Max Pressure: 30 psi
- Media Handled: Steam
- Nominal Size: 2 Inch
- Orifice Diameter: 2.125 Inch
- Overall Dimension: 15.25 Inch Width x 9.25 Inch Depth x 15.6 Inch Height
- Pressure Rating: 30 PSIG
- Series: FTB Series
- Steam Trap Connection Size: 2"
- Steam Trap Mounting: Same Side
- Steam Trap Type: Float & Thermostatic
- Temperature Rating: 450 Deg F at 200 PSIG
- Type: Float and Thermostatic, Parallel
- Weight: 89.000 Pound
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
