SQUARE D 9007C52D LIMIT SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 9007C52D
IMS Product Code: 1760936
Packaging: Sold Individually
Description:

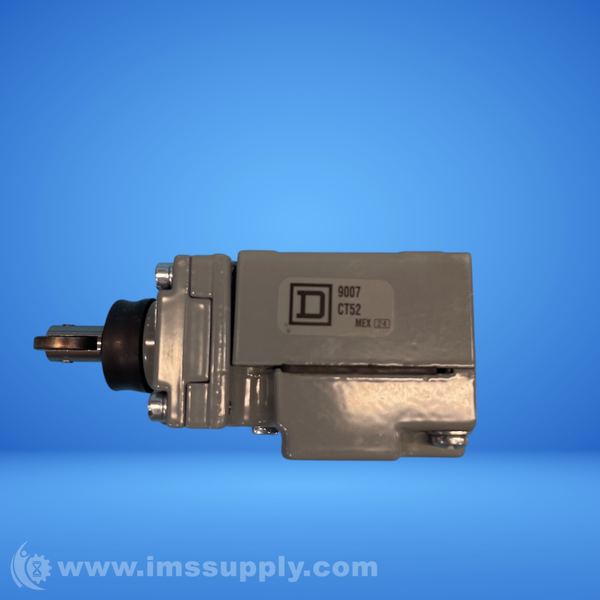

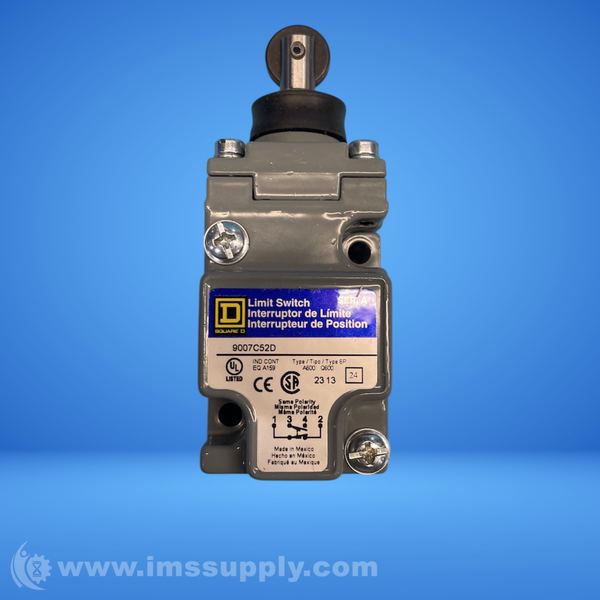

Square D 9007C52D Limit Switch
Heavy duty, compact limit switch with spring return roller plunger head and snap action operation. SPDT contact configuration, 1NO-1NC contacts, 600V 10A contact rating. NEMA 1/2/4/6/6P/12/13 enclosure rating, IP67 protection. Made in Mexico.
Specifications
- Series: 9007C
- Amperage: 10A
- Voltage: 600V
- Poles: 1
- NEMA Rating: NEMA 1/2/4/6/6P/12/13
- Duty Rating: Heavy Duty
- Contact Configuration: 1NO-1NC, SPDT
- Conduit Connection Type: 1/2 Inch NPT
- Operation Type: Spring Return, Snap Action
- Contact Rating: 600 VAC 10 Ampere, 600 VDC 2.5 Ampere
- Approval: UL, CSA, CE
- Type: Limit Switch
- Mounting Type: Panel Mount
- Switch Type: Rotary
- Dimensions: 31.8mm
- Operating Temperature: -20°C to 70°C
- Body Material: Zinc
- Head Material: Zinc
- Contacts Material: Silver contacts
- IP degree of protection: IP67
- Protective treatment: Epoxy powder coat
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
