SQUARE D 9007C62B2 LIMIT SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 9007C62B2
IMS Product Code: 1804340
Packaging: Sold Individually
Description:

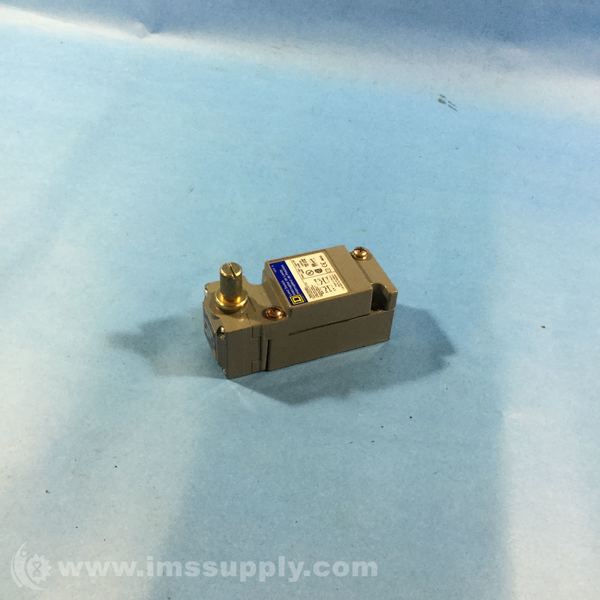

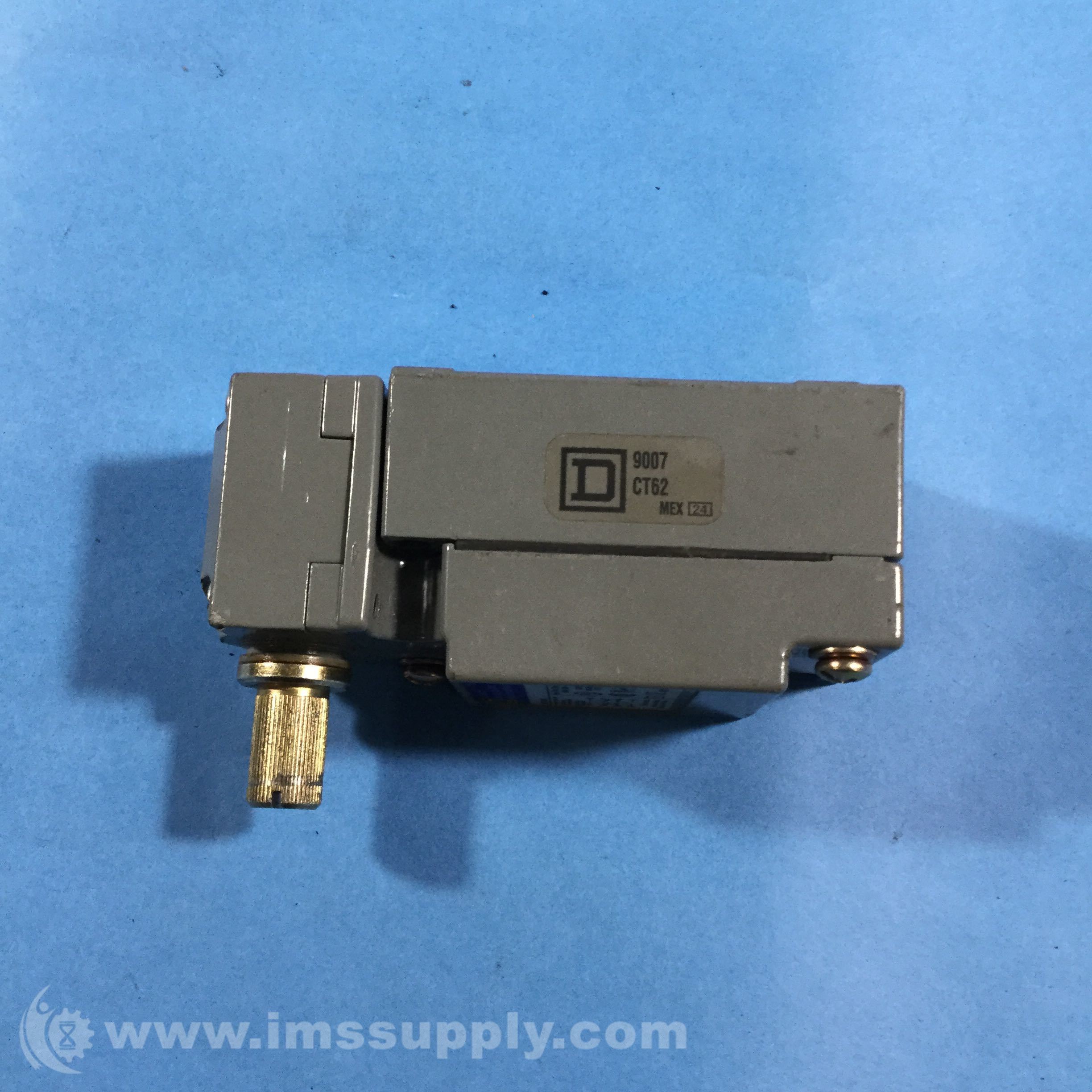

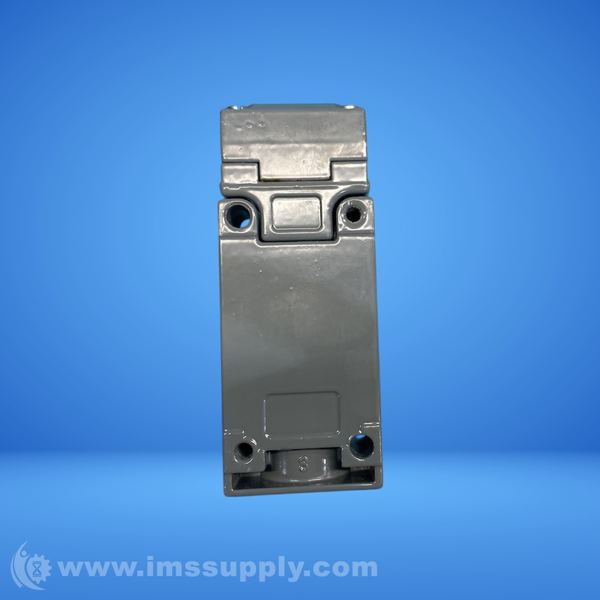

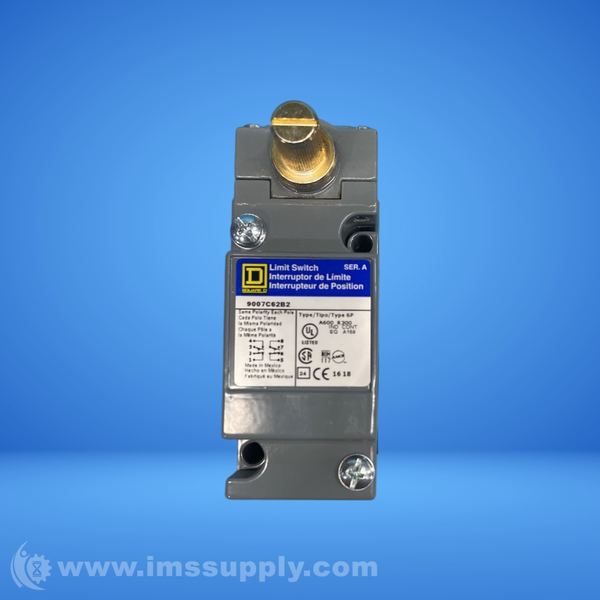

Square D 9007C62B2 Limit Switch

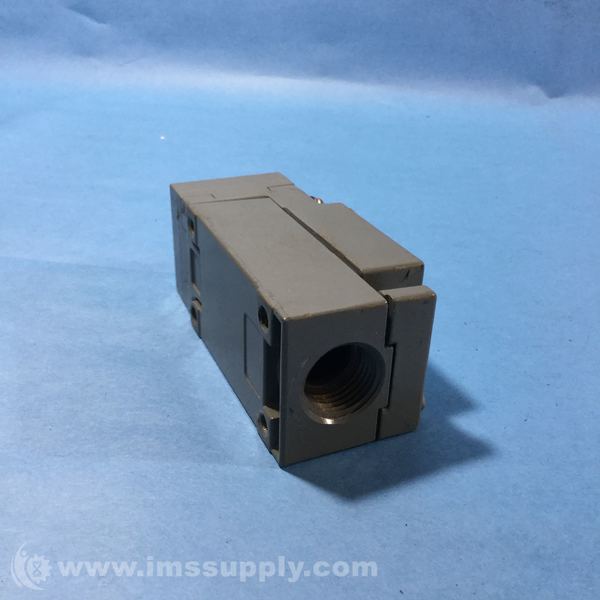

Heavy duty limit switch with plug-in body and rotary head, 2-pole, DPDT configuration, 10A 600VAC/DC contact rating, zinc alloy body, spring return operation, NEMA 1/2/4/6/6P/12/13 rating, IP65/66/67 enclosure, -20 to 185 deg F operating temperature, screw clamp terminals, 1/2-14 NPT connection.
Specifications
- Series: 9007
- Body Type: Plug-in

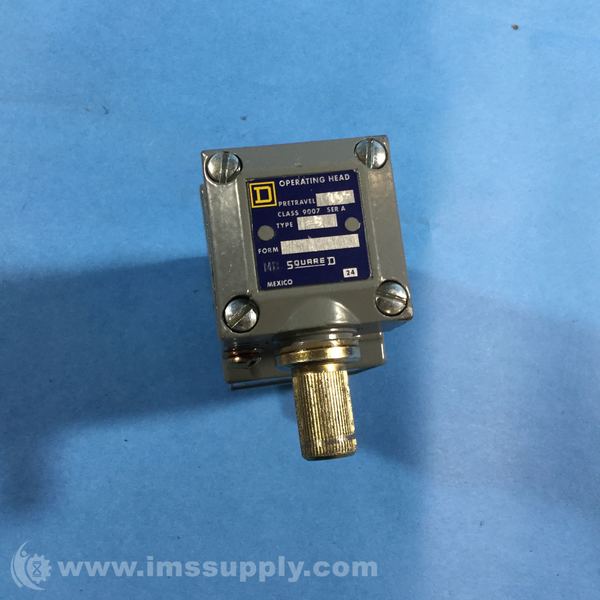

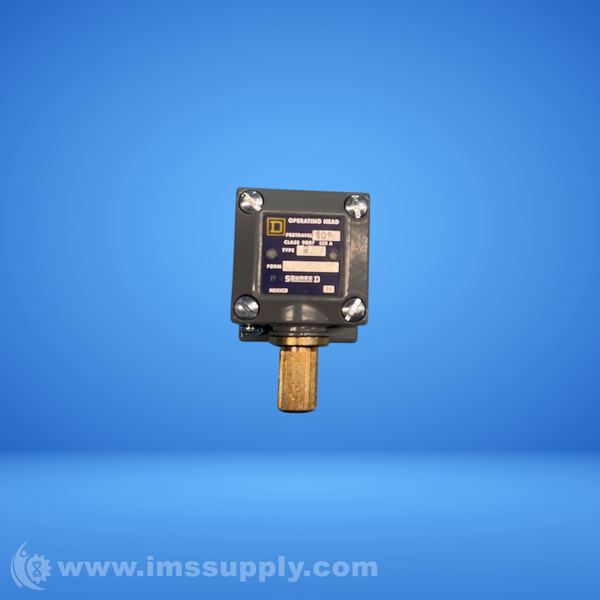

- Head Type: Rotary

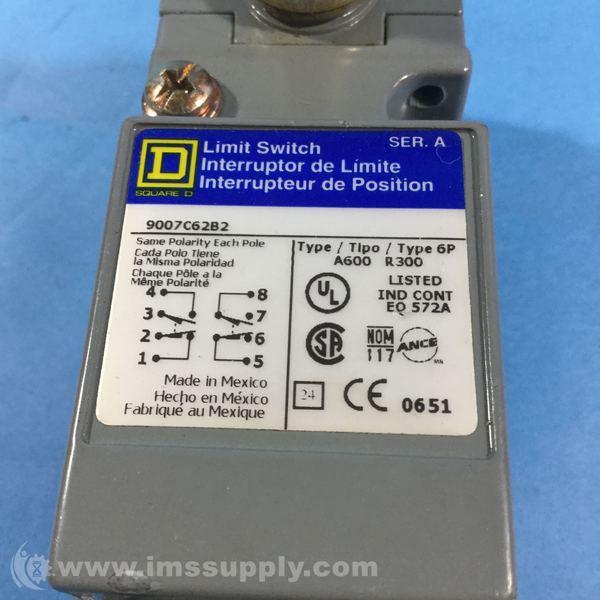

- Contact Configuration: DPDT, 2NO-2NC
- Amperage: 10A
- Voltage: 600V
- NEMA Rating: 1/2/4/6/6P/12/13
- Duty Rating: Heavy Duty
- Operation Type: Snap Action, Spring Return
- Contact Rating: 600VAC 10A, 600VDC 1A
- Approvals: UL, CSA, CE
- IP Rating: IP65/IP66/IP67
- Body Material: Zinc Alloy
- Operating Temperature: -20 to 185 deg F
- Operating Force: 4 pound-inch
- Pretravel: 10 degrees
- Total Travel: 90 degrees
- Dimensions: 1.54 in width x 4.02 in depth x 1.77 in height
- Contact Material: Silver
- Seal Material: Neoprene
New - Open Box (Special):
Missing a screw.
Availability: 1 In Stock
Ships Tomorrow
