SQUARE D 9007C62C LIMIT SWITCH
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: 9007C62C
IMS Product Code: 2126930
Packaging: Sold Individually
Description:

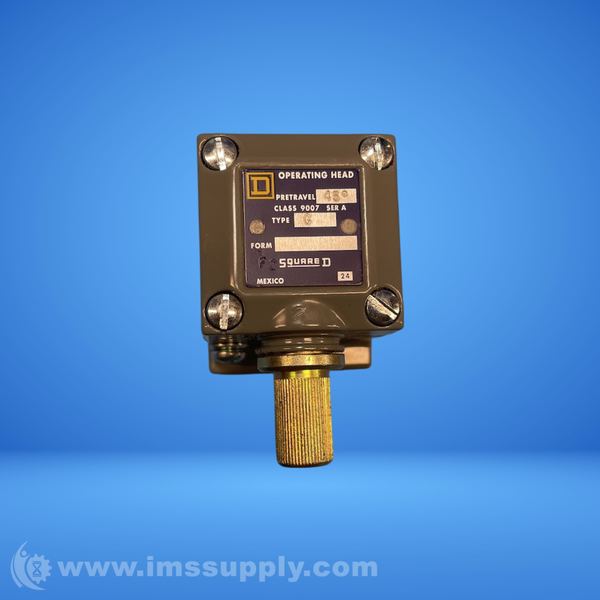

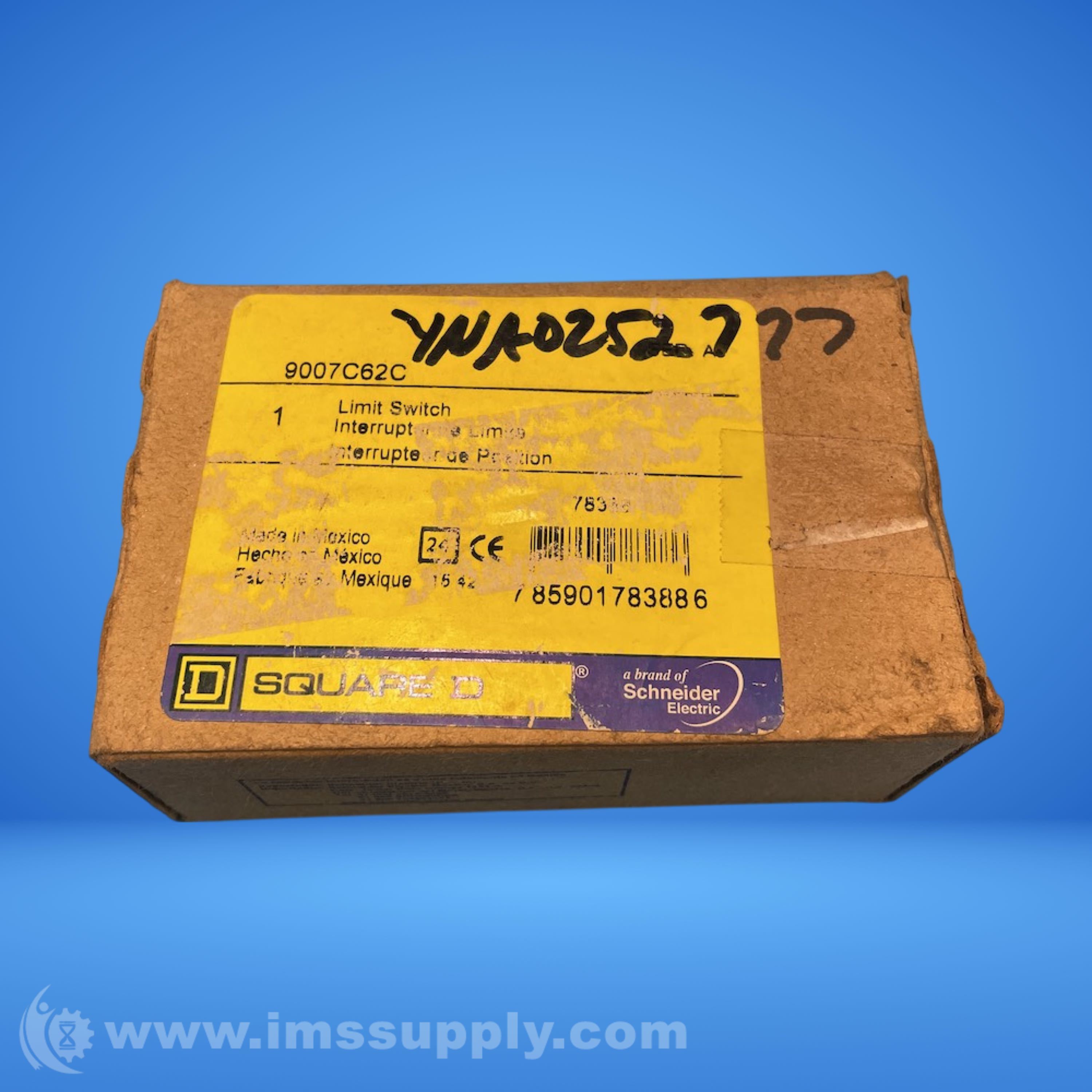

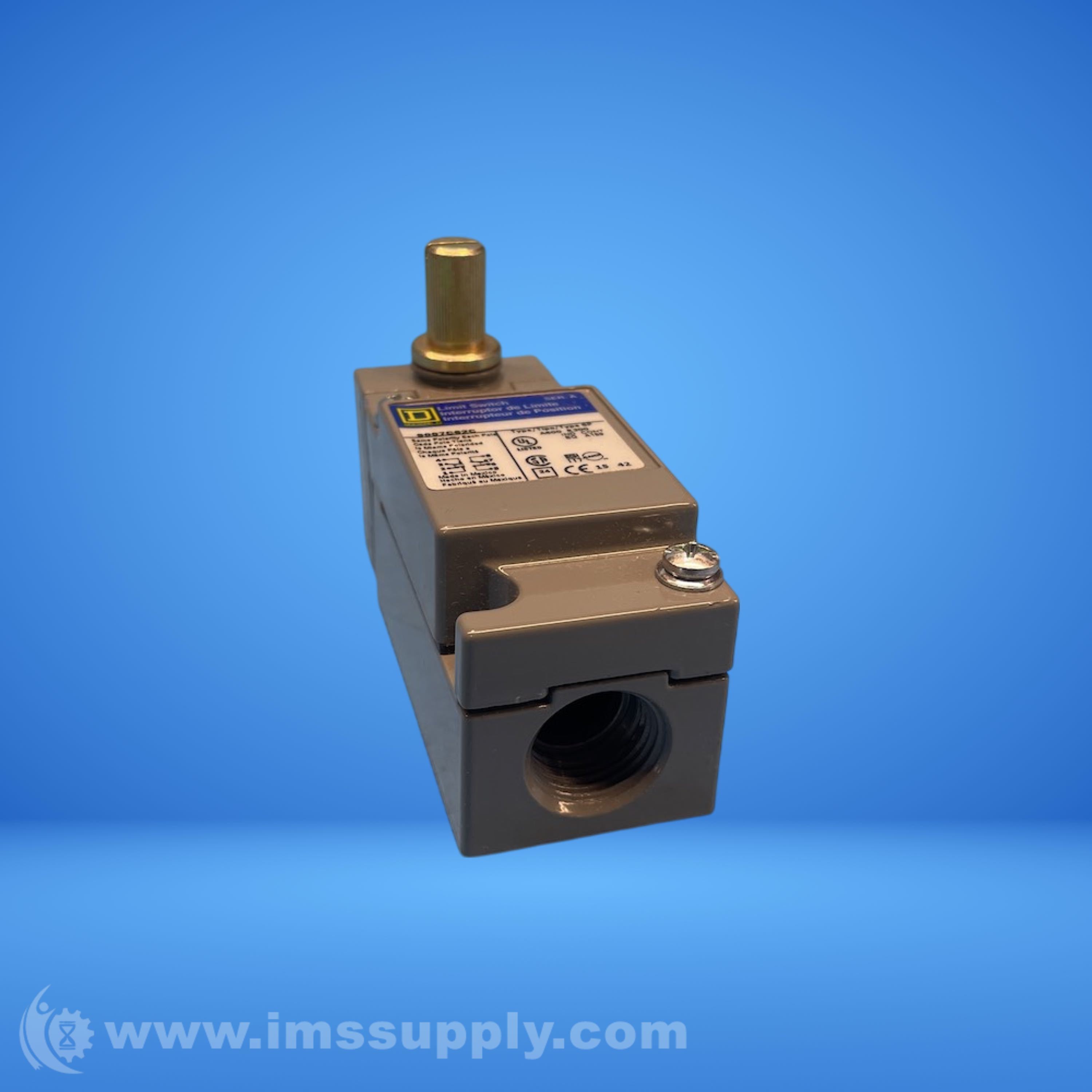

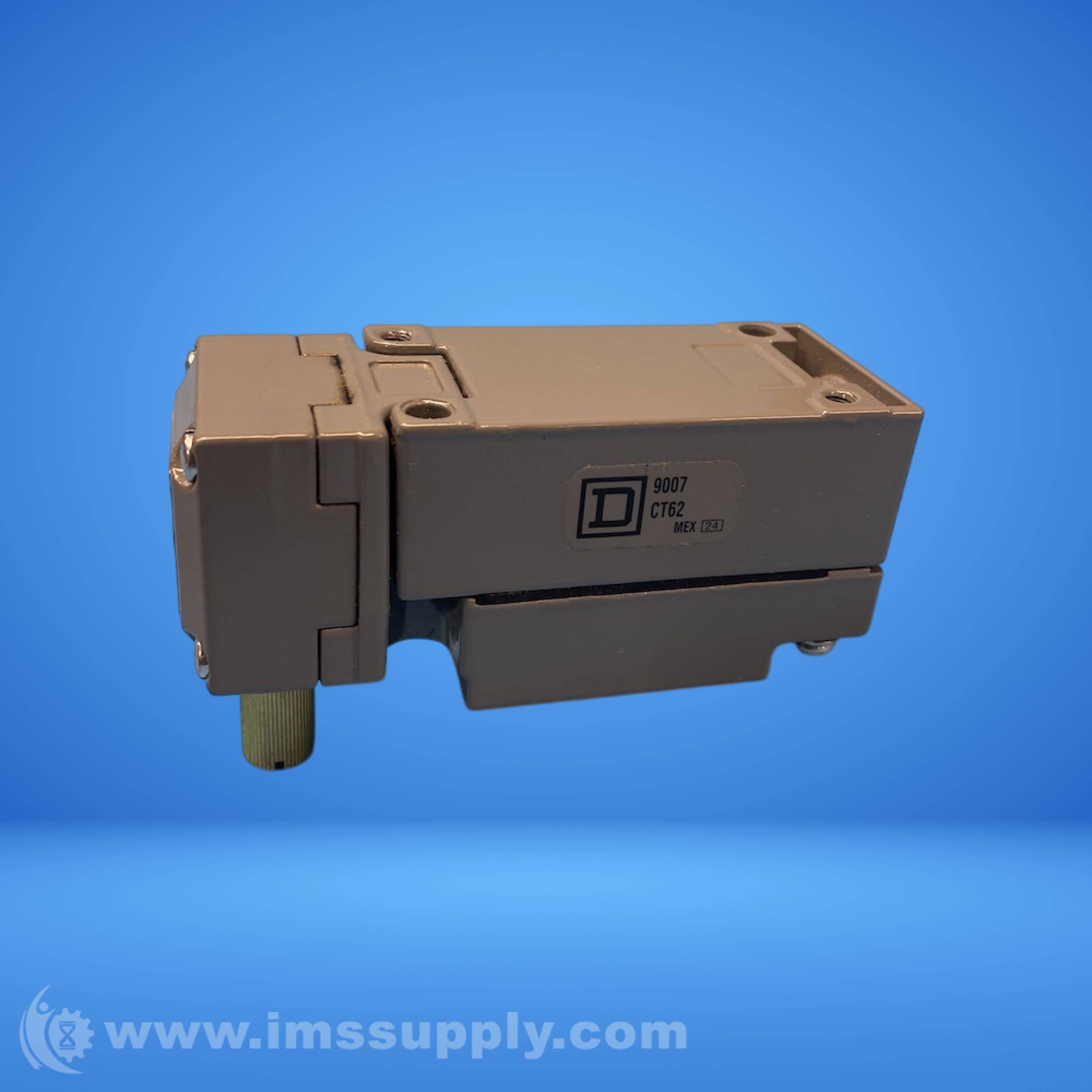

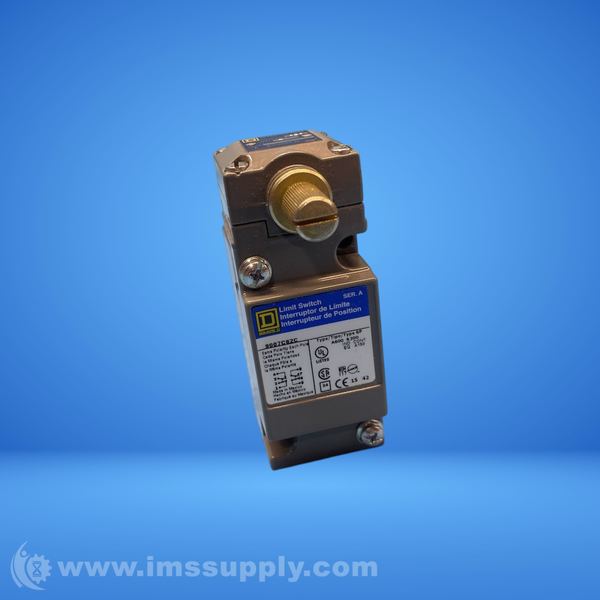

Square D 9007C62C Limit Switch
Heavy duty limit switch with rotary head actuator and zinc body construction. DPDT contact configuration, 2NC/2NO, 600V 10A contact rating, screw-clamp terminals, and IP67 ingress protection rating.
Specifications
- Series: 9007C
- Contact Configuration: DPDT, 2NC/2NO
- Voltage: 600V
- Amperage: 10A
- Actuator Type: Rotary Head
- Actuator Location: Side
- Body Material: Zinc
- Ingress Protection Rating: IP67
- Termination Type: Screw-clamp terminals
- Operating Temperature Range: -20F to 185F
- NEMA Rating: 1, 2, 4, 6, 6P, 12, 13
