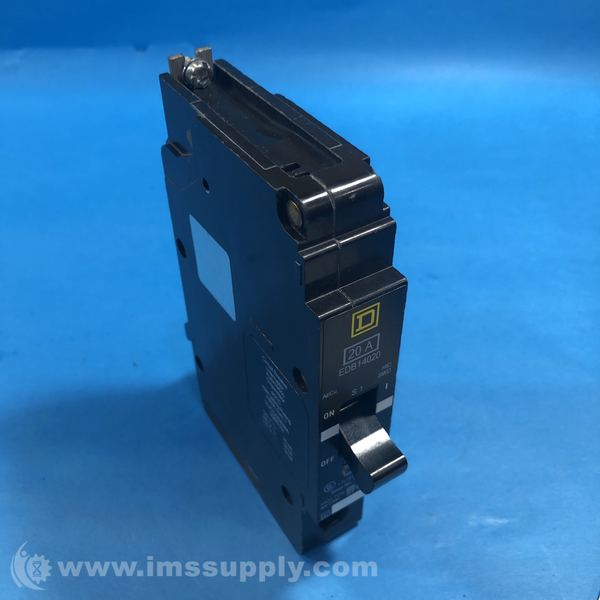

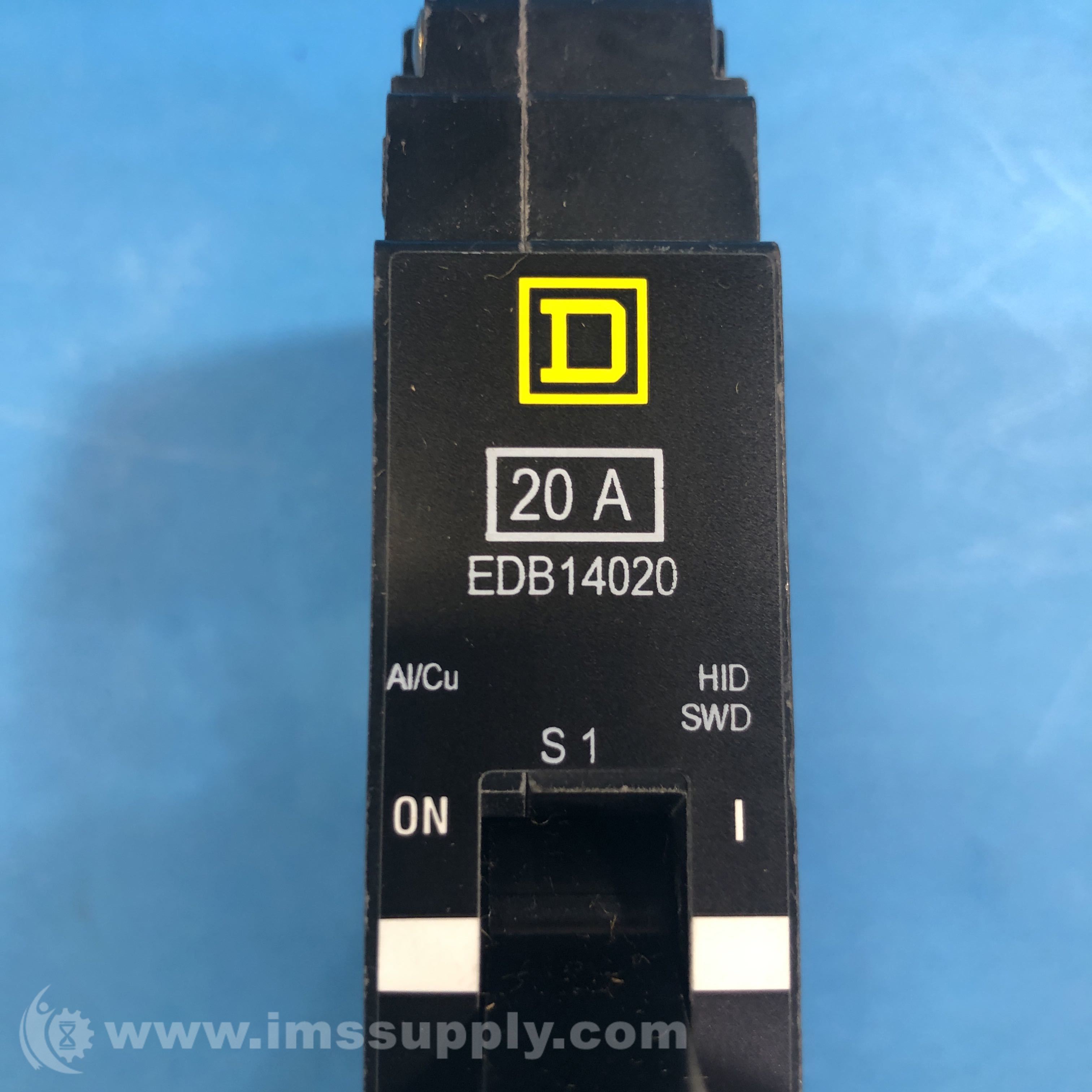

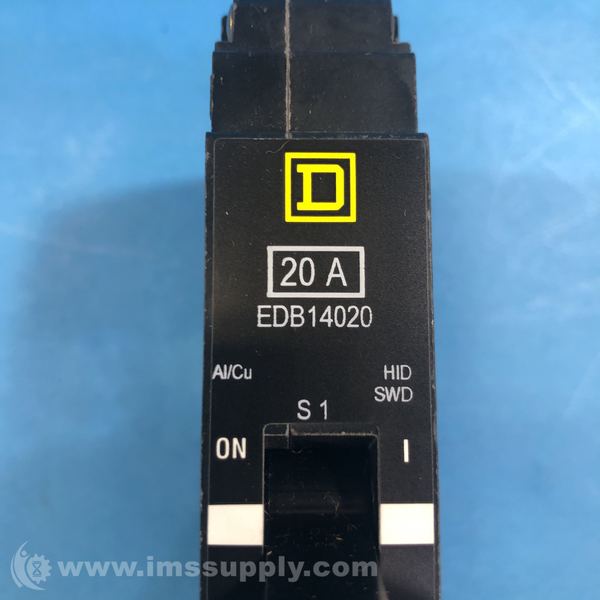

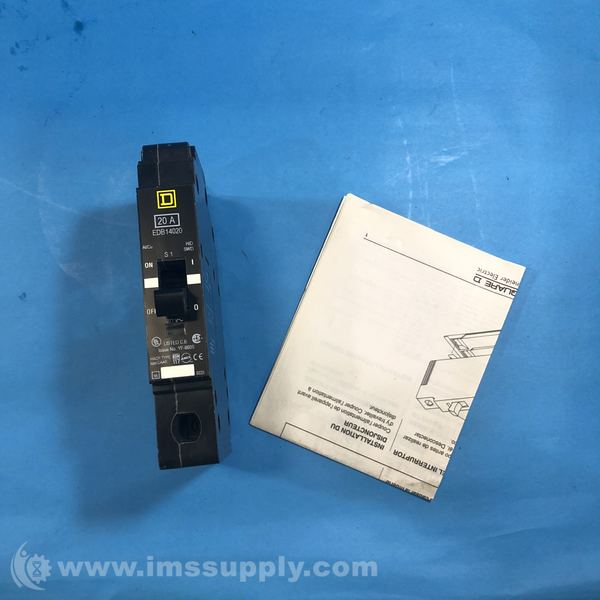

SQUARE D EDB14020 CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: EDB14020
IMS Product Code: 1825158
Packaging: Sold Individually
Description:
Square D EDB14020 Circuit Breaker
1-Pole thermal magnetic molded case circuit breaker with 20A current rating and 480Y/277VAC voltage rating. Bolt-on connection type with long time and instantaneous trip functions. For use with NF Panelboards.
Specifications
- Amp: 20
- Connection Type: Bolt-On
- Dimensions (HxWxD): 5.66" x 0.98" x 4.05"
- Family: EDB Series
- Functions: Long Time and Instantaneous Trip
- Interrupting Rating: 18kAIC at 480V
- Manufacturer: Square D
- Maximum Operating Voltage: 277 V AC
- Mounting Type: Bolt-On
- Phase: 1
- Pole: 1
- Protection Type: Short-Circuit / Overload
- Protection: Thermal Magnetic
- Series: EDB
- Trip Unit Rating: 875 Amp
- Type: EDB
- Voltage: 480Y/277VAC
- AWG Gauge: AWG 12...AWG 6 Aluminum | AWG 14...AWG 6 Copper
- Line Rated Current: 20 Amp
- Mounting Mode: Bolt-On
- Electrical Connection: Aluminum Lugs
- Holding Current: 270 Amp
- Local Signaling: Trip Indicator
- Circuit Breaker Application: HID-Rated / HACR-Rated
New - Open Box:

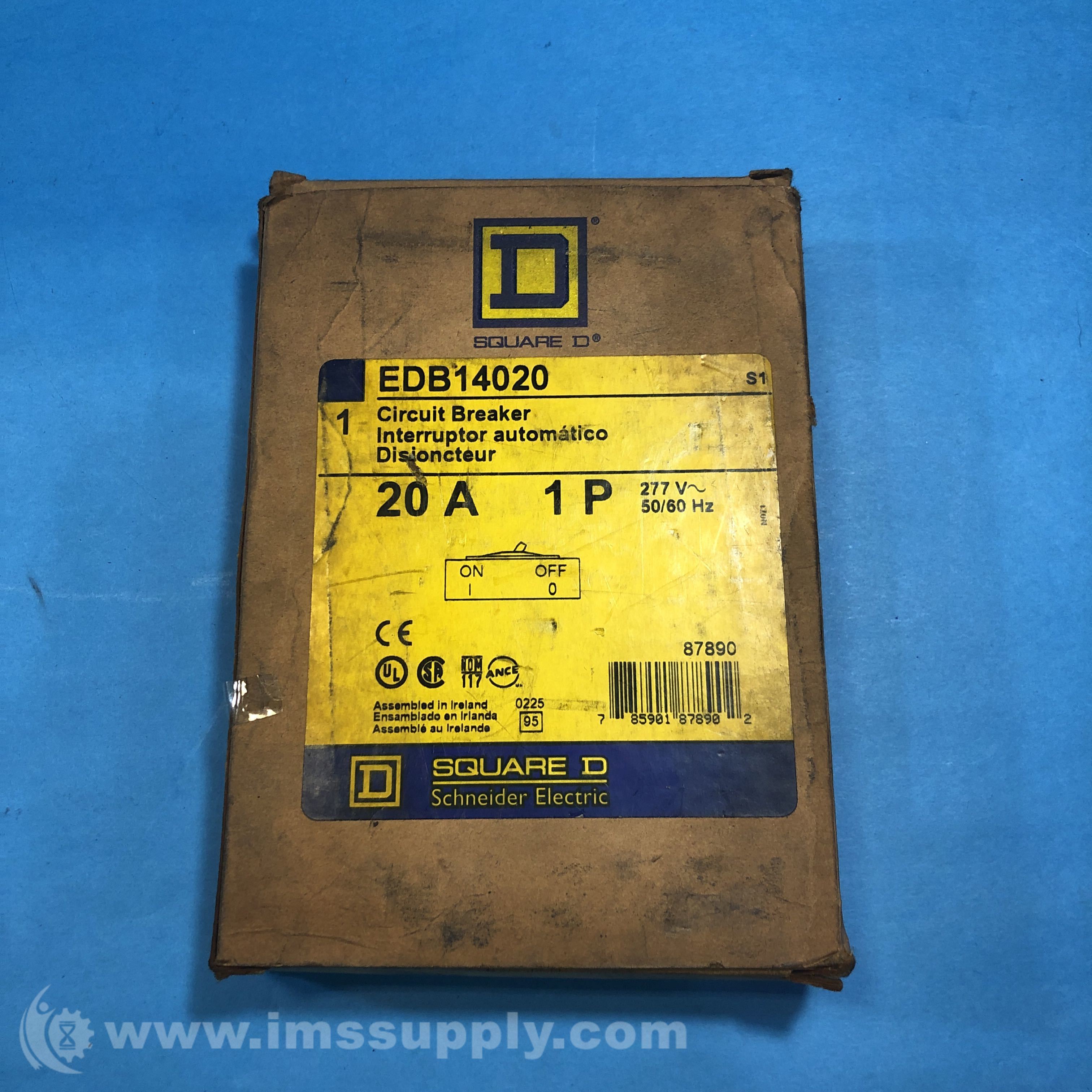

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
