SQUARE D FA-34030 3-POLE 30A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FA-34030
IMS Product Code: 1828909
Packaging: Sold Individually
Description:

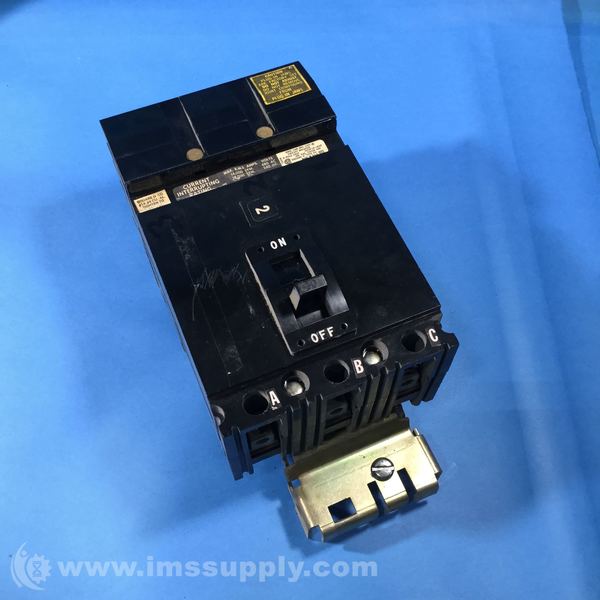

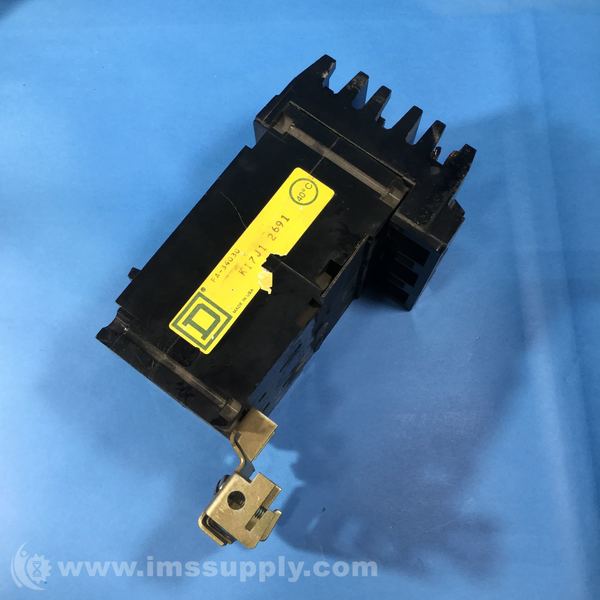

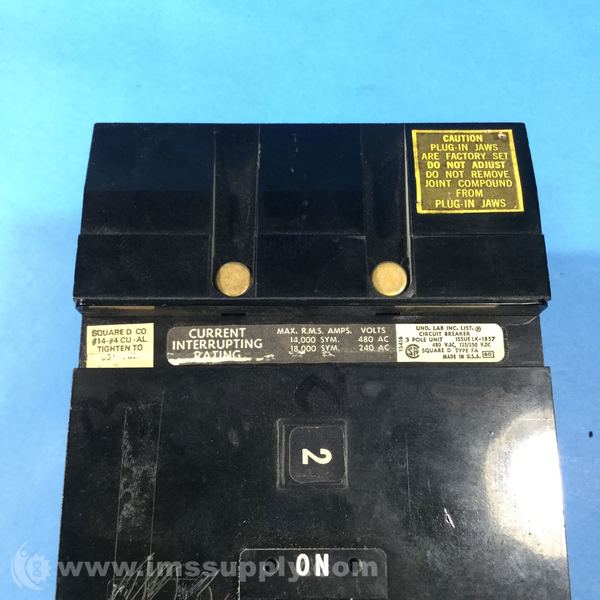

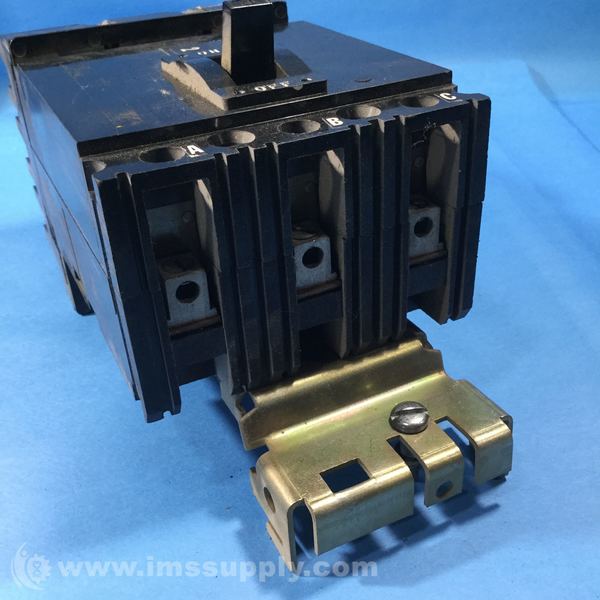

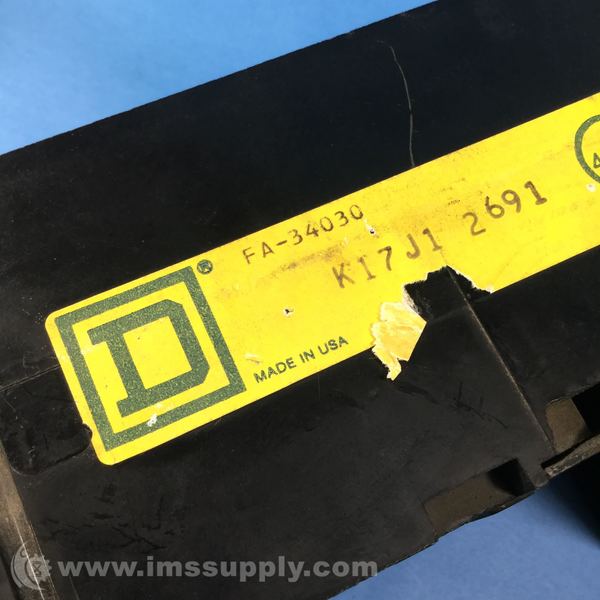

Square D FA-34030 3-Pole 30A Circuit Breaker
3-pole, 30A molded case circuit breaker with thermal-magnetic trip technology for industrial applications. Features I-Line mounting configuration and HACR certification.
Specifications
- Amperage: 30A
- Voltage: 240VAC, 480VAC, 250VDC
- Poles: 3
- Phase: 3
- AIC Rating: 25kA @ 240VAC, 18kA @ 480VAC, 10kA @ 250VDC
- Mounting Style: I-Line
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function: Long-Time, Instantaneous
- Trip Adjustability: Fixed Thermal, Fixed Magnetic
- Wire Gauge: 14-4 AWG (Cu), 12-4 AWG (Al)
- Standards: CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489
- Approval: CSA, UL
- Temp Rating: 40C
Used (Special):

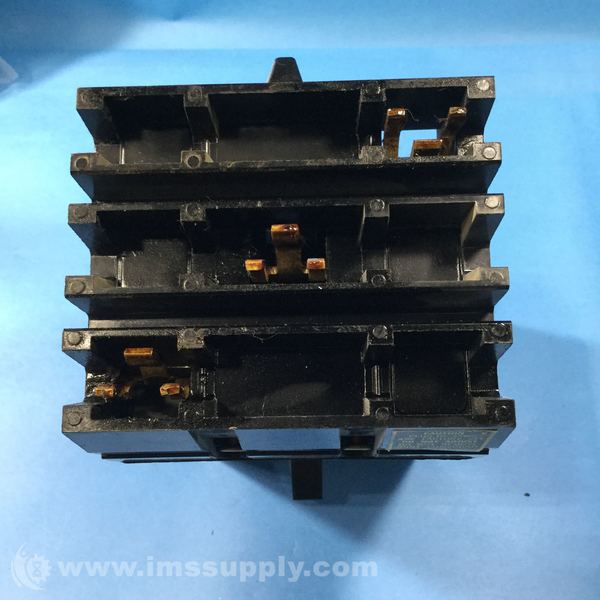

part is broken at the top left corner
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 10 minutes.
Used (Special):
Part is broken on corner
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 10 minutes.
