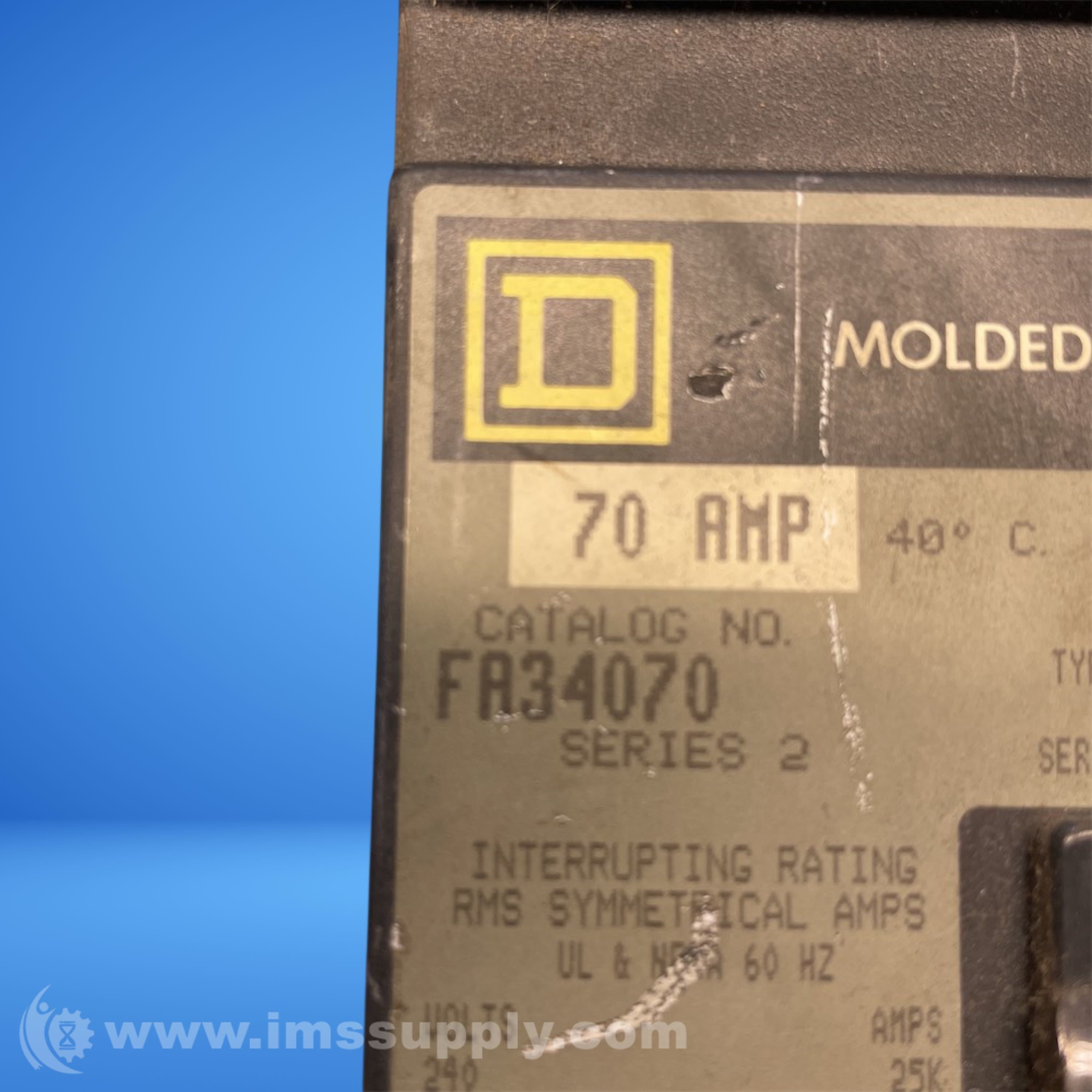

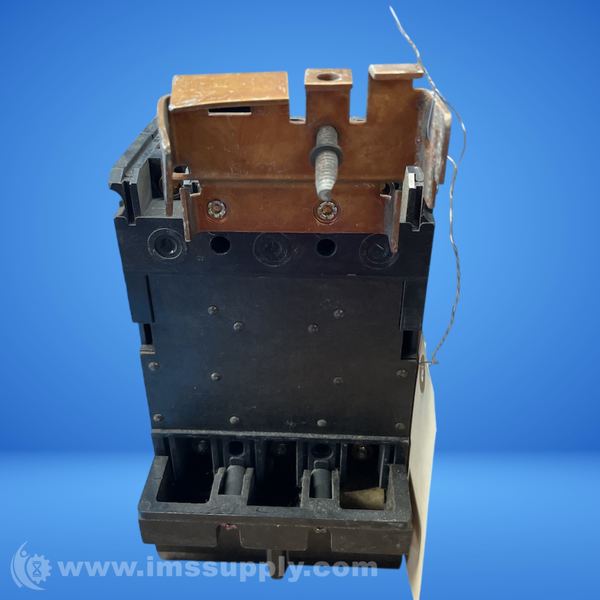

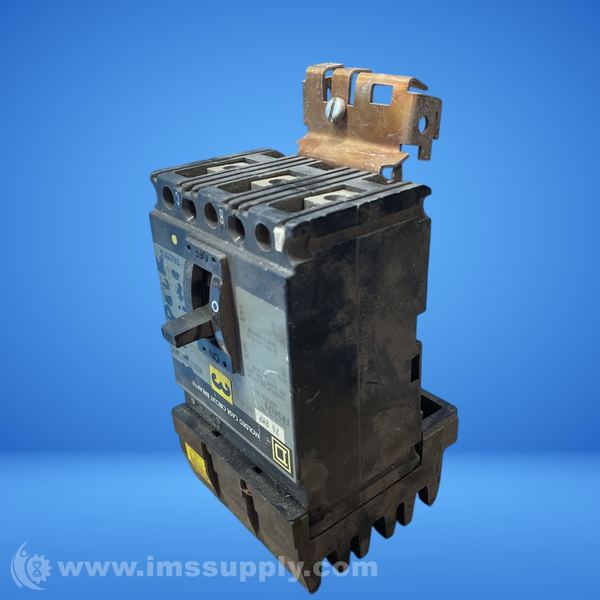

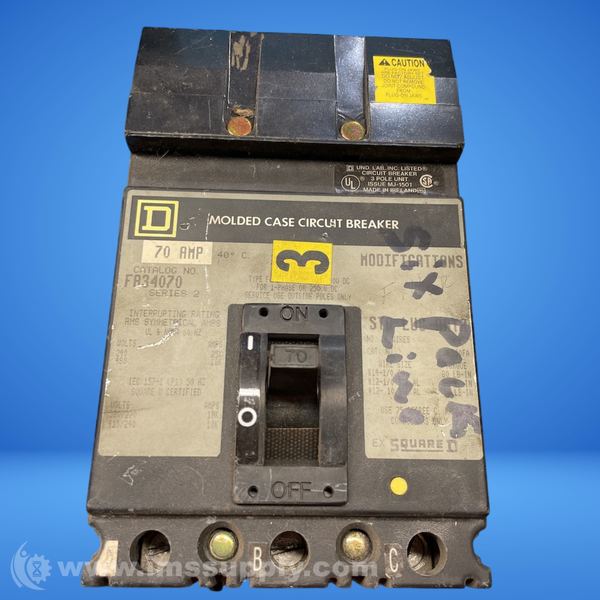

SQUARE D FA34070 70A 3-POLE MOLDED CASE CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FA34070
IMS Product Code: 2156998
Packaging: Sold Individually
Description:
Square D FA34070 70A 3-Pole Molded Case Circuit Breaker
A 70A, 3-pole molded case circuit breaker designed for commercial power distribution. It uses thermal-magnetic trip technology and installs into Square D I-Line panelboards.
Specifications
- Amperage: 70A
- Voltage: 240VAC, 480Y/277VAC, 480VAC, 250VDC
- Poles: 3
- AIC Rating: 25kA @ 240VAC, 18kA @ 480Y/277VAC, 18kA @ 480VAC, 10kA @ 250VDC
- Mounting Style: I-Line
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function: Long-Time, Instantaneous
- Trip Adjustability: Fixed Thermal, Fixed Magnetic
- Wire Gauge: 14-1/0 AWG (Cu/Al)
- Standards: CSA C22.2 No. 5, HACR Rated, NEMA AB-1, UL 489
- Approval: CSA, UL
- Temp Rating: 40C
- Dimensions (HxWxD): 4.13 x 4.5 x 6.4
- Weight: 5 lb
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 2 In Stock
Ships today if ordered in the next 8 hours and 20 minutes.
