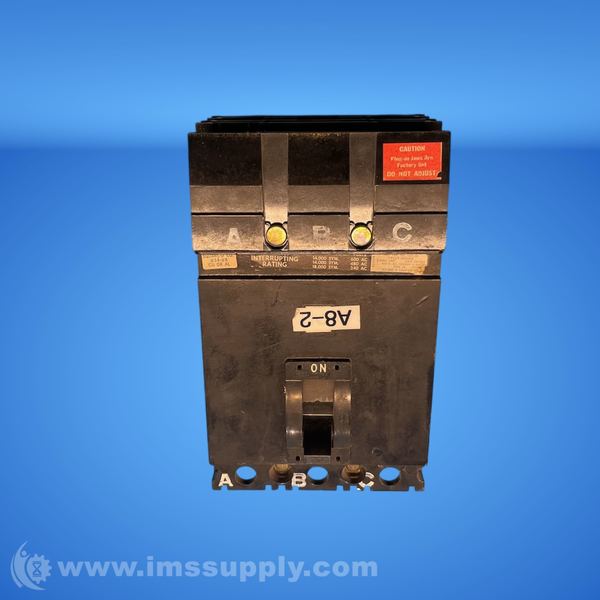

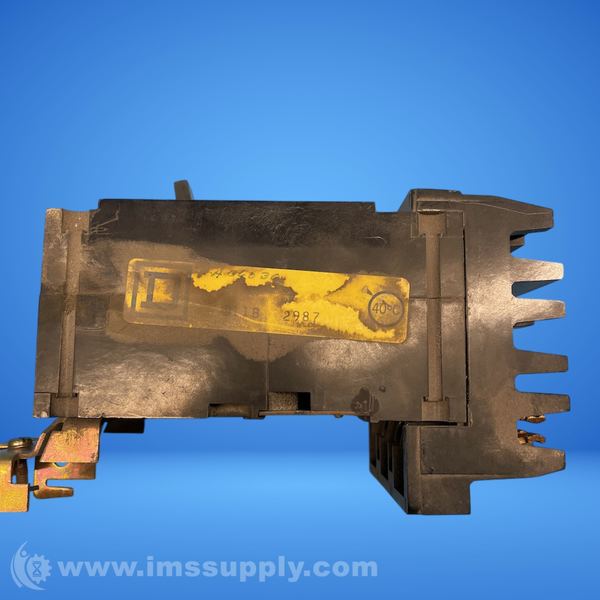

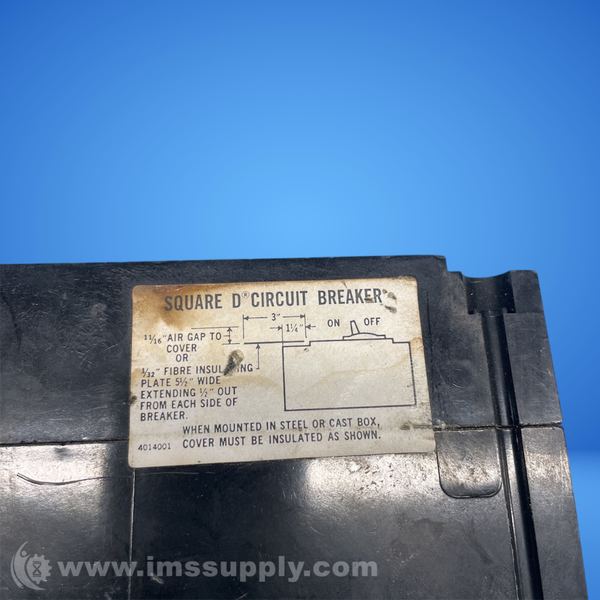

SQUARE D FA36030 3-POLE 30A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FA36030
IMS Product Code: 2156896
Packaging: Sold Individually
Description:
Square D FA36030 3-Pole 3-Pole 30A Circuit Breaker
3-Pole, 30A, 600V, I-Line Style Plug-In, Thermal Magnetic Circuit Breaker with LI Trip Functions
Specifications
- amperage: 30
- voltage: 600
- poles: 3
- phase: 3
- aic rating: 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
- mounting style: I-Line Style Plug-In
- terminal type: Lugs
- trip technology: Thermal Magnetic
- trip function code: LI
- trip function: Long-Time, Instantaneous
- trip adjustability: Fixed Thermal, Fixed Magnetic
- wire gauge: 14-4 AWG (Cu/Al)
- max wire: 4 AWG
- min wire: 14 AWG
- dimensions (hxwxd): 6" x 4.5" x 4.13"
- weight: 9.99 lbs
- standards: CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489
- approval: CSA, UL
- temp rating: 40C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 6 In Stock
