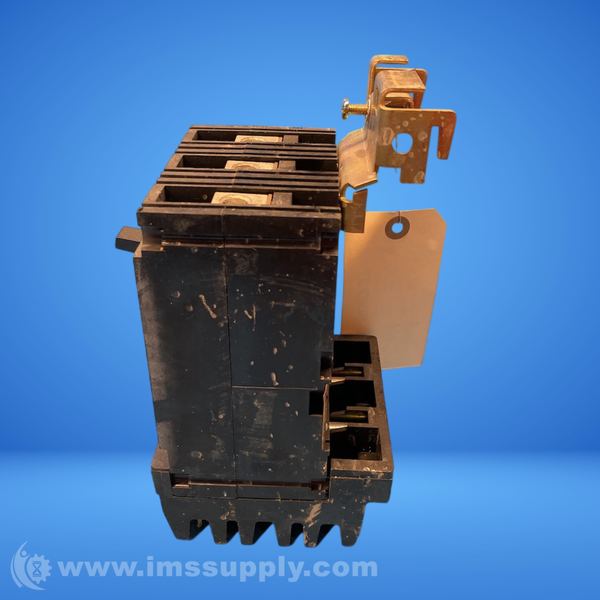

SQUARE D FA36040 MCCB
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FA36040
IMS Product Code: 1837024
Packaging: Sold Individually
Description:
Square D FA36040 MCCB
Molded case circuit breaker, 600V, 40A, 3-pole, thermal-magnetic protection, I-Line style plug-in
Specifications
- Amps: 40 Amp
- Breaker Interrupt Rating 1: 25KA @ 240VAC
- Breaker Interrupt Rating 2: 18KA @ 480VAC
- Breaker Interrupt Rating 3: 14KA @ 600VAC
- Breaker Interrupt Rating 4: 10KA @ 250VDC
- Breaker Line Side Term Method: I-Line
- Breaker Load Side Term Method: Lugs
- Circuit Breaker Type: MCCB
- Frame: F
- Height: 4.13
- Length: 6.4
- Number of Poles: 3 Pole
- Trip Type: Thermal Magnetic
- Volts: 600V
- Width: 4.5
- Family: I-Line
- Pole: 3
- Amp: 40
- Volt: 600
- Phase: 3
- Category: Molded Case
- Connection: I-Line Style Plug-In
- Type: FA
- Functions: LI - Long-Time and Instantaneous
- Protection: Thermal Magnetic
- AIC Ratings: 18kA@480V
- Dimensions (HxWxD): 6" x 4.5" x 4.13"
- Trip Unit Technology: Thermal-magnetic
- Line Rated Current: 40 Amp
- Mounting Mode: I-Line
- Breaking Capacity Code: A
- Electrical Connection: I-Line connection line / Lugs load
- Magnetic Hold Current: 400 A
- Voltage Rating: 600 Volt Ac, 250 Volt Dc
- Interrupting Rating: 14 Kiloamp At 600 Volt Ac
- Current Rating: 40 Amp
- Trip Setting: 275 Amp Hold, 600 Amp Trip
- Brand: I-Line[Tm], Powerpact[Tm]
- Frame Type: F
- Phase Connection Type: Abc
- Dimensions: 4.5 Inch Width X 4.13 Inch Depth X 6 Inch Height
- Mounting Height: 5.5 Inch
- Wire Size: (1) 12 To 4 Awg (Aluminum) Or (1) 14 To 4 Awg (Copper)
- Model: FA
- Series: FA
- Amperage: 40A
- Voltage: 240VAC, 480VAC, 600VAC, 250VDC
- Poles: 3
- AIC Rating: 25kA @ 240VAC, 18kA @ 480VAC, 14kA @ 600VAC, 10kA @ 250VDC
- Mounting Style: I-Line
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function Code: LI
- Trip Function: Long-Time, Instantaneous
- Trip Adjustability: Fixed Thermal, Fixed Magnetic
- Wire Gauge: 14-1/0 AWG (Cu/Al)
- Max Wire: 1/0 AWG
- Min Wire: 14 AWG
- Temp Rating: 40C
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
