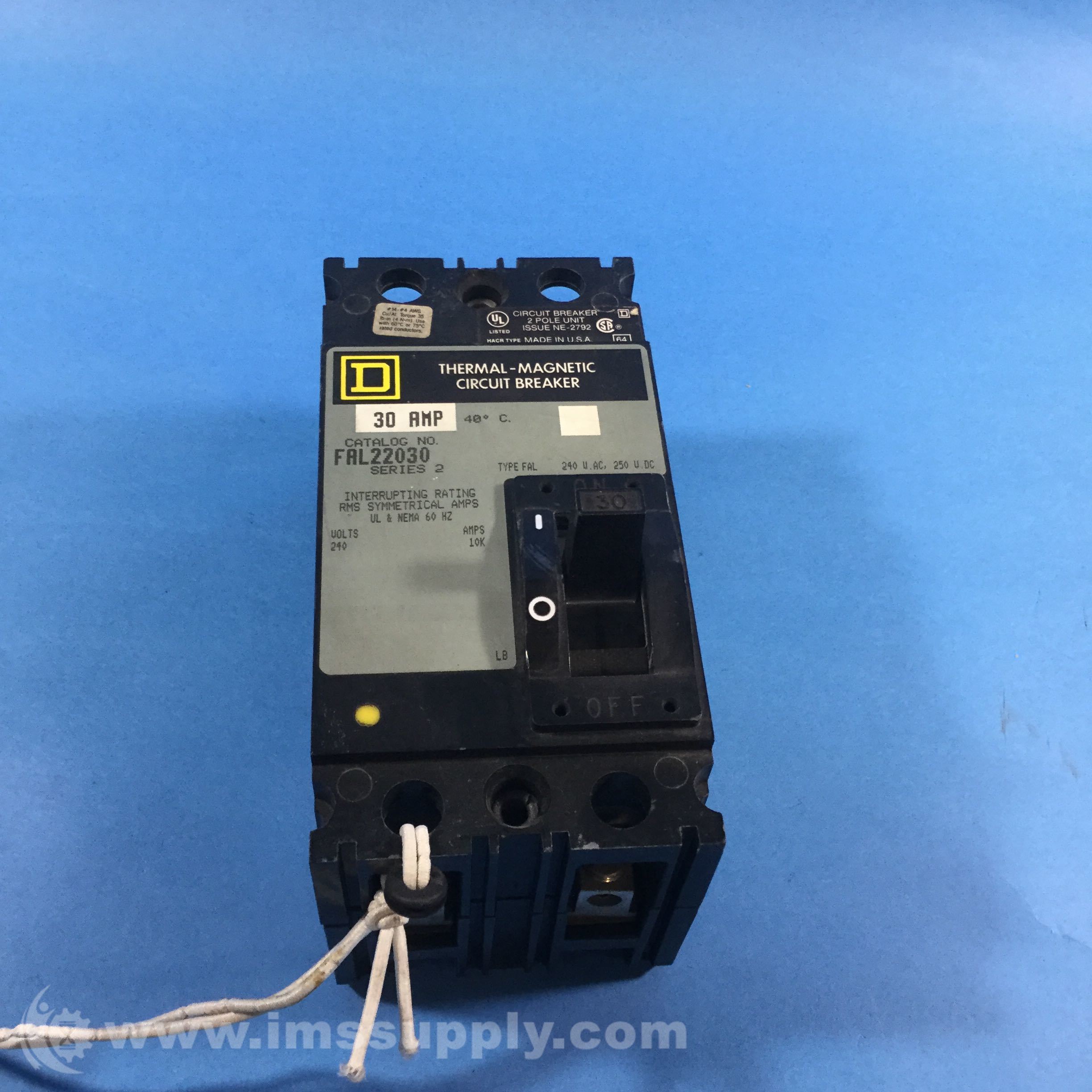

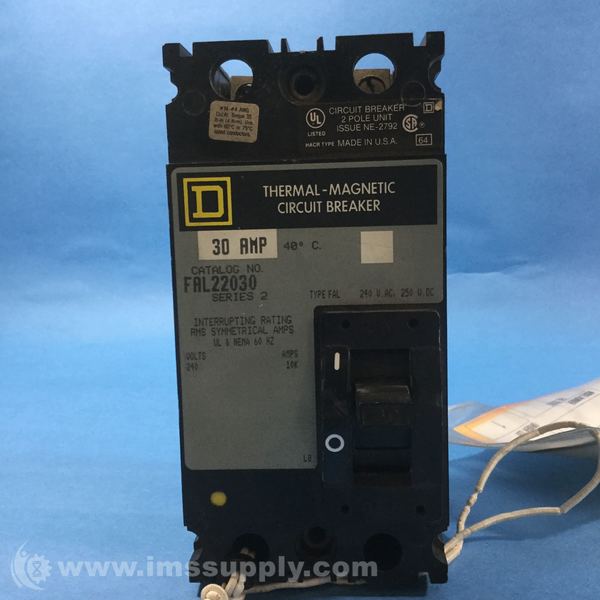

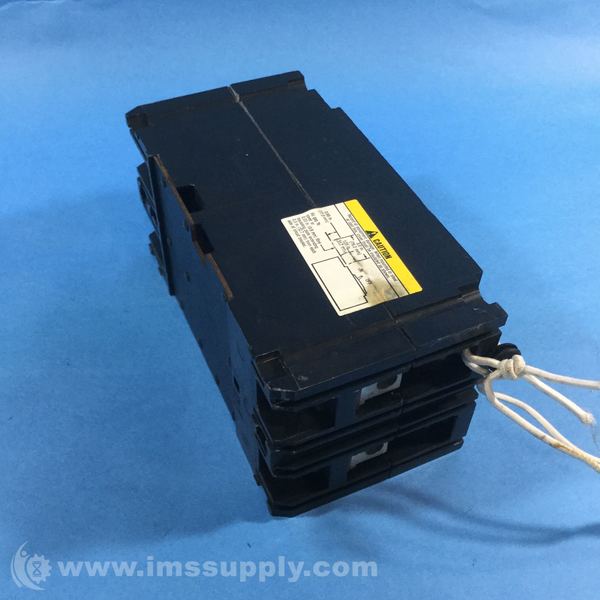

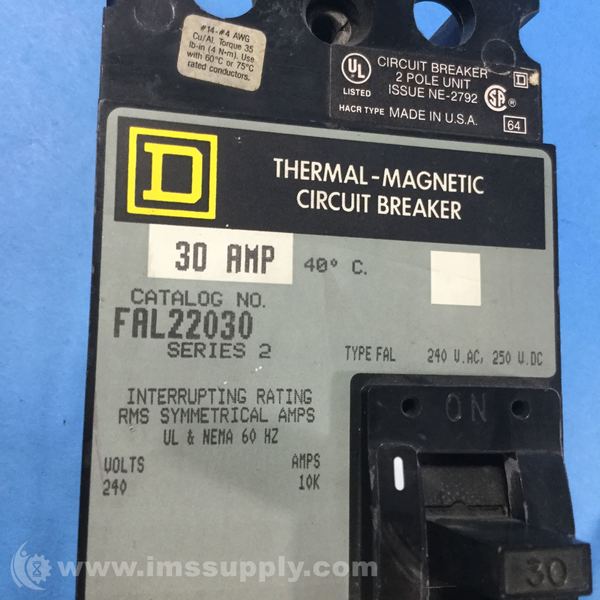

SQUARE D FAL22030 30A 2-POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FAL22030
IMS Product Code: 1780944
Packaging: Sold Individually
Description:
Square D FAL22030 30A 2-Pole Circuit Breaker
2-Pole thermal magnetic molded case circuit breaker with 30A current rating and 240V voltage rating
Specifications
- Amps: 30 Amp
- Breaker Interrupt Rating 1: 10KA @ 240VAC
- Breaker Interrupt Rating 4: 5KA @ 250VDC
- Breaker Line Side Term Method: Lugs
- Breaker Load Side Term Method: Lugs
- Circuit Breaker Type: MCCB
- Frame: F
- Number of Poles: 2 Pole
- Trip Type: Thermal Magnetic
- Volts: 240V
- Series: FAL
- Voltage: 240VAC
- Phase: 1
- Mounting Type: Unit
- Approval: UL, CSA
- Interrupting Rating: 10kAIC at 240V
- Connection Type: Feed-Thru
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous Trip
- Terminal Connection: Line and Load Side Lug
- Length (in): 4.13
- Width (in): 3
- Height (in): 6
- Standards: HACR
