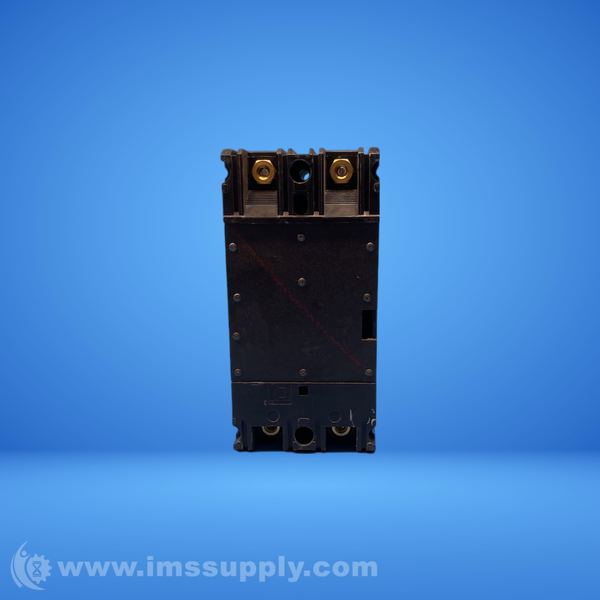

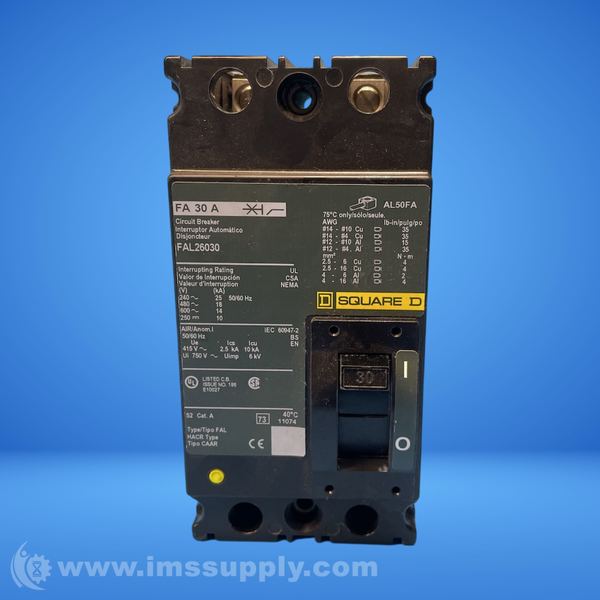

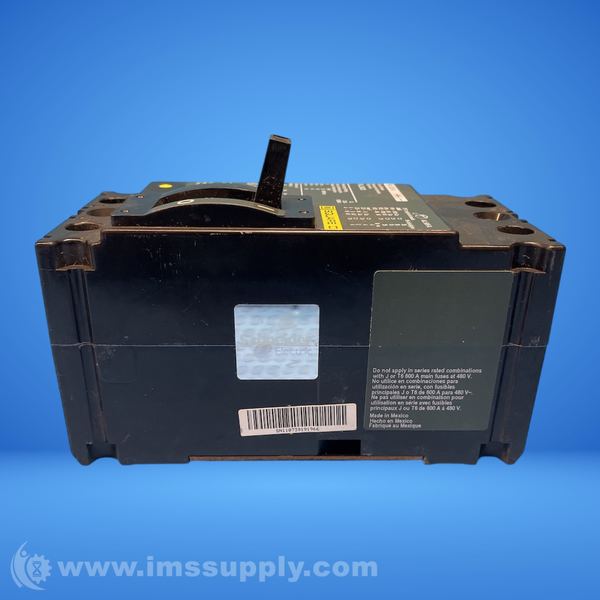

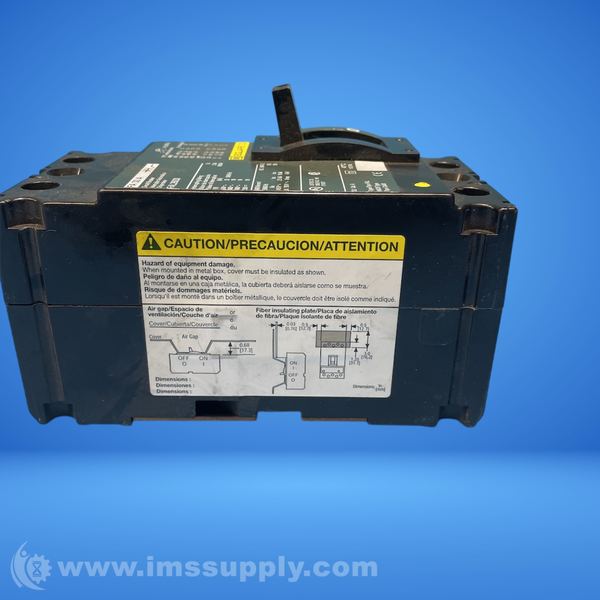

SQUARE D FAL26030 2 POLE 30A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FAL26030
IMS Product Code: 2124503
Packaging: Sold Individually
Description:
Square D FAL26030 2 Pole 30A Circuit Breaker
2 Pole thermal magnetic molded case circuit breaker with 30A current rating and 600VAC voltage rating. Has 18kAIC interrupting rating at 480V. Includes long time and instantaneous trip functions with line and load side lug terminals.
Specifications
- Amps: 30
- Breaker Interrupt Rating 1: 25KA @ 240VAC
- Breaker Interrupt Rating 2: 18KA @ 480VAC
- Breaker Interrupt Rating 3: 14KA @ 600VAC
- Breaker Interrupt Rating 4: 10KA @ 250VDC
- Circuit Breaker Type: MCCB
- Frame: F
- Number of Poles: 2
- Trip Type: Thermal Magnetic
- Volts: 600V
- Dimensions (HxWxD): 4.13 x 3 x 6.4
- Weight: 3.38 lb
- Series: FAL Series
- Connection: Feed-Thru
- Type: F Frame
- Functions: LI - Long-Time and Instantaneous
- AIC Ratings: 18kA@480V
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 4 minutes.
