SQUARE D FAP36100MTJ CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FAP36100MTJ
IMS Product Code: 1916369
Packaging: Sold Individually
Description:
Square D FAP36100MTJ Circuit Breaker
3-pole molded case circuit breaker for industrial and commercial electrical systems.
Specifications
- Amperage: 100 Amps
- Poles: 3
- Voltage: 600 VAC
- Connection Type: Lug (off-end) terminal type
- Mounting Type: Suitable for use with industrial enclosures and switchboards
- Dimensions: Approximately 4.5 inches wide, 4.13 inches deep, and 6 inches high
- Standards Compliance: Meets UL, CSA, and NOM standards

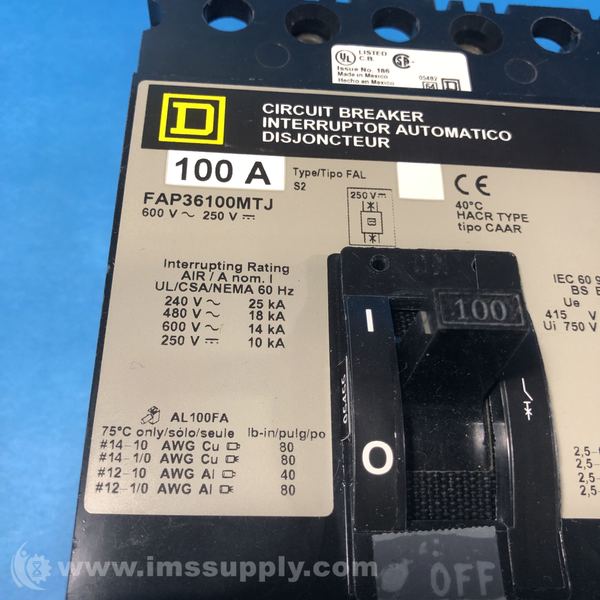

- Interrupting Rating at 240 V: 25 kA
- Interrupting Rating at 480 V: 18 kA
- Interrupting Rating at 600 V: 14 kA
- Interrupting Rating at 250 V: 10 kA
- Operating Temperature: 40 deg C
- Wire Size: #14-10 AWG Cu 80, #14-1/0 AWG Cu 80, #12-10 AWG Al 40, #12-1/0 AWG Al 80

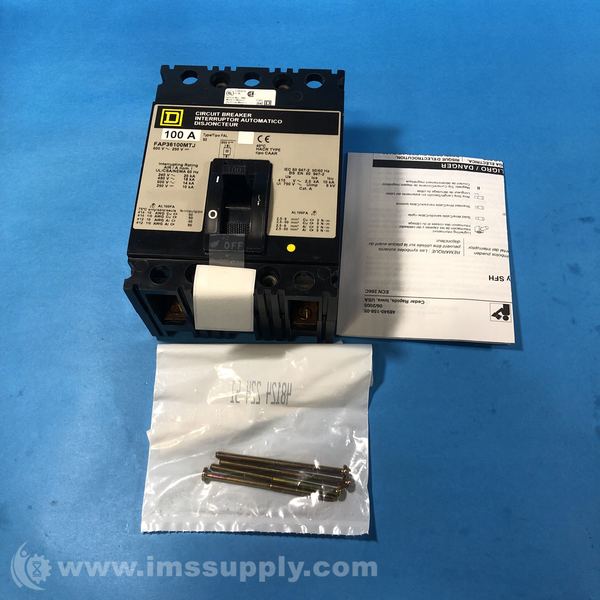

New - Open Box:

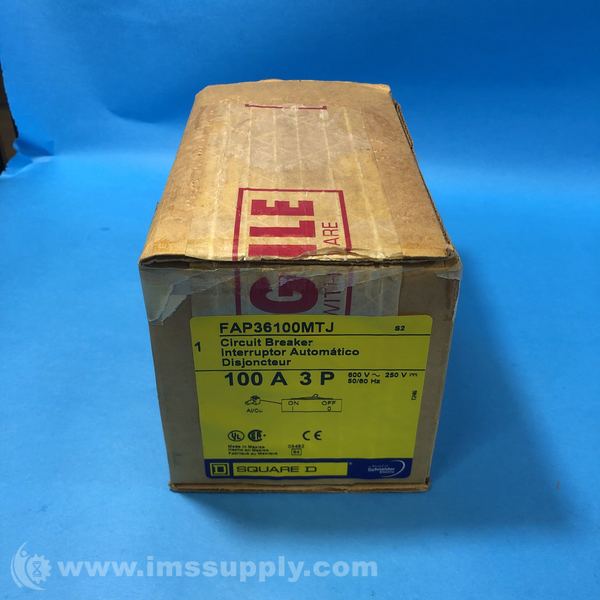

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
