SQUARE D FH26100AC 100A 2-POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FH26100AC
IMS Product Code: 2156984
Packaging: Sold Individually
Description:

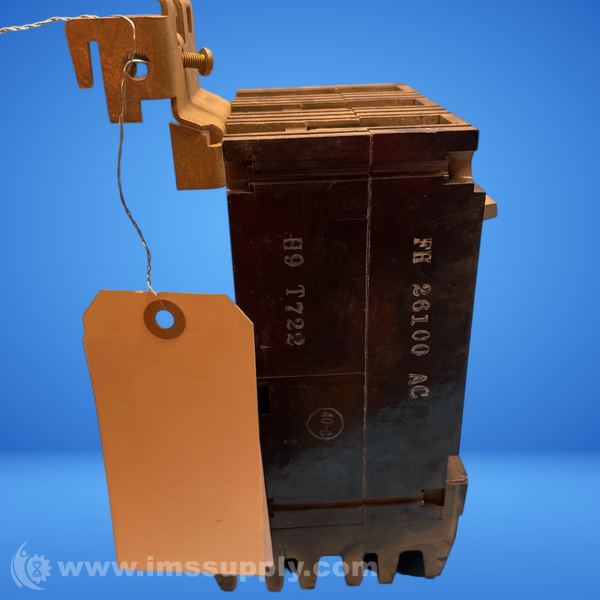

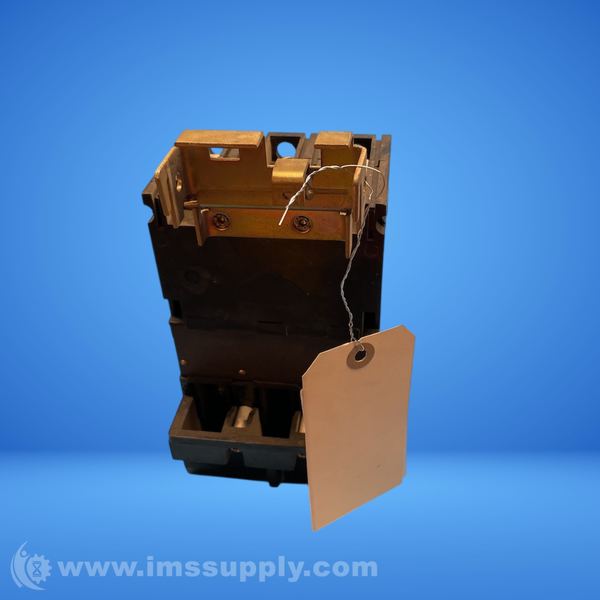

Square D FH26100AC 100A 2-Pole Circuit Breaker
2-pole, 100A molded case circuit breaker with thermal-magnetic protection and fixed LI trip functions, designed for use with Square D I-Line panelboards.
Specifications
- Amp: 100
- Volt: 600
- Pole: 2
- Phase: 1
- Category: Molded Case
- Connection: I-Line Style Plug-In
- Type: FH
- Protection: Thermal Magnetic
- AIC Ratings: 25kA@480V
- Dimensions (HxWxD): 6.4" x 3" x 4.13"
- Frame Type: F-Frame
- Trip Unit Technology: Thermal-magnetic
- Line Rated Current: 100 A
- Mounting Mode: I-Line
- Breaking Capacity Code: H
- Magnetic Hold Current: 900 A
- Voltage: 240VAC, 480Y/277VAC, 480VAC, 600Y/347VAC, 600VAC, 250VDC
- AIC Rating: 65kA @ 240VAC, 25kA @ 480Y/277VAC, 25kA @ 480VAC, 18kA @ 600Y/347VAC, 18kA @ 600VAC, 10kA @ 250VDC
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function Code: LI
- Trip Function: Long-Time, Instantaneous
- Trip Adjustability: Fixed Thermal, Fixed Magnetic
- Wire Gauge: 14-1/0 AWG (Cu), 12-1/0 AWG (Al)
- Standards: CSA C22.2 No. 5, HACR, NEMA AB 1, UL 489
- Approval: CE, CSA, UL
- Temp Rating: 40C
- Construction Features: HACR Rated, High Interrupting Capacity, Visual Trip Indicator
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 14 hours and 10 minutes.
