SQUARE D FY-14020-C 20A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: FY-14020-C
IMS Product Code: 1828932
Packaging: Sold Individually
Description:

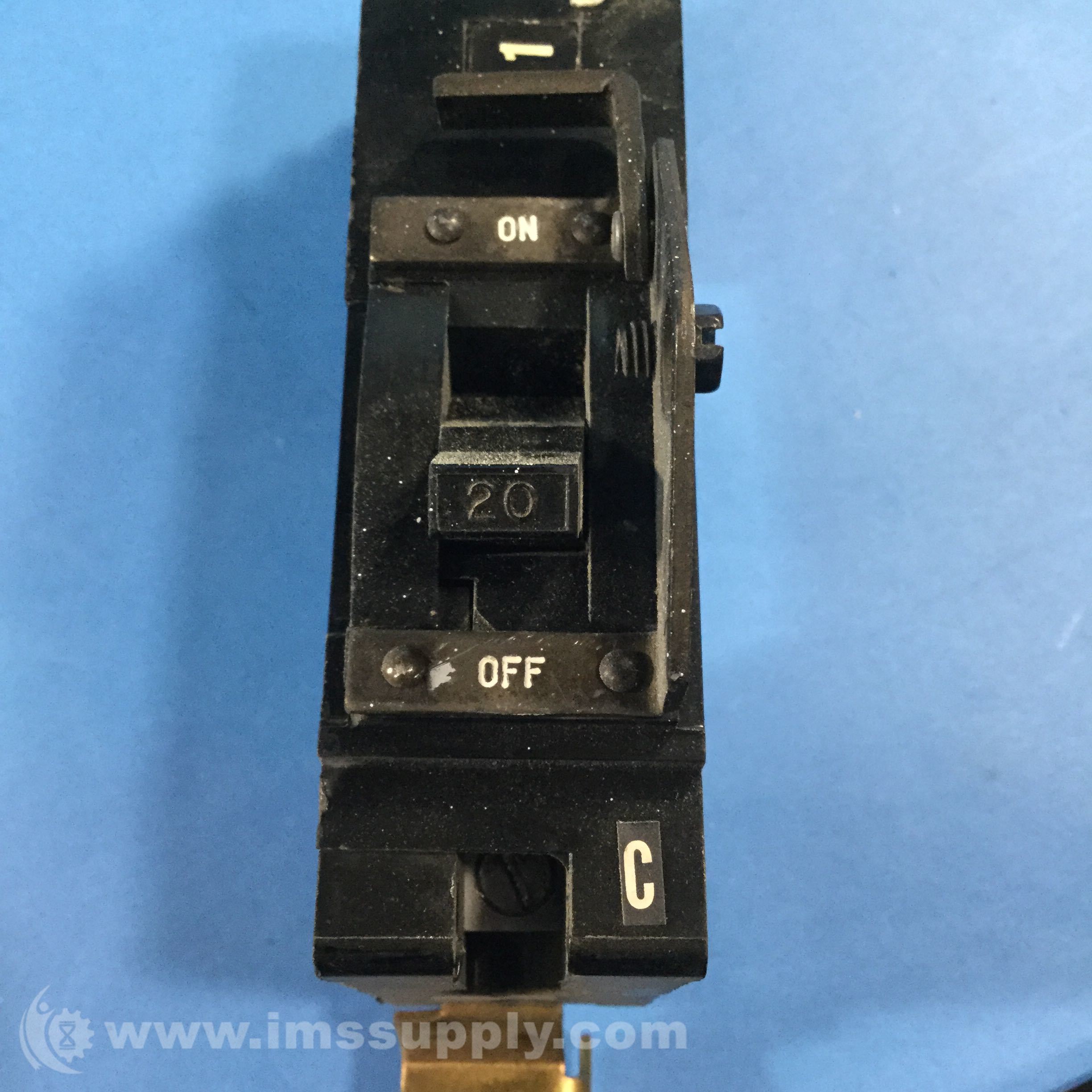

Square D FY-14020-C 20A Circuit Breaker
1-pole, 20A molded case circuit breaker for commercial and industrial power distribution. Features thermal-magnetic protection and installs into Square D I-Line panelboards.
Specifications
- Amperage: 20A
- Voltage: 277VAC, 125VDC
- Poles: 1

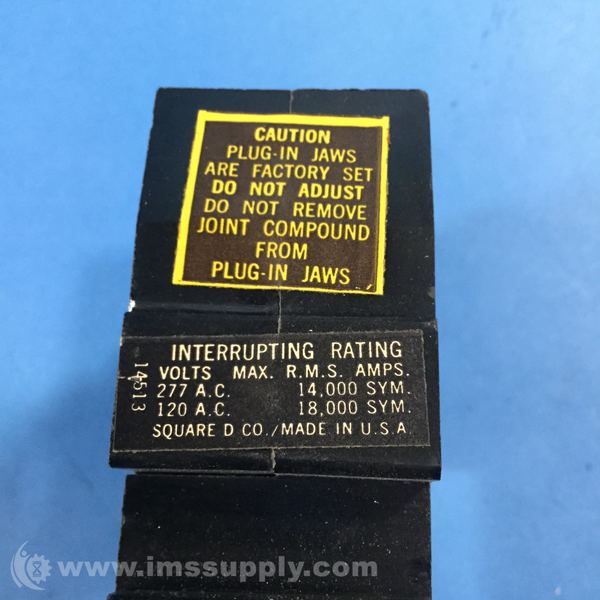

- AIC Rating: 18kA @ 277VAC, 10kA @ 125VDC
- Mounting Style: I-Line
- Trip Technology: Thermal Magnetic
- Trip Function: Long-Time, Instantaneous
- Wire Gauge: 14-4 AWG (Cu), 12-4 AWG (Al)
- Temp Rating: 40C
- Standards: CSA C22.2 No. 5, NEMA AB 1, UL 489
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 4 In Stock
Ships today if ordered in the next 14 hours and 9 minutes.
