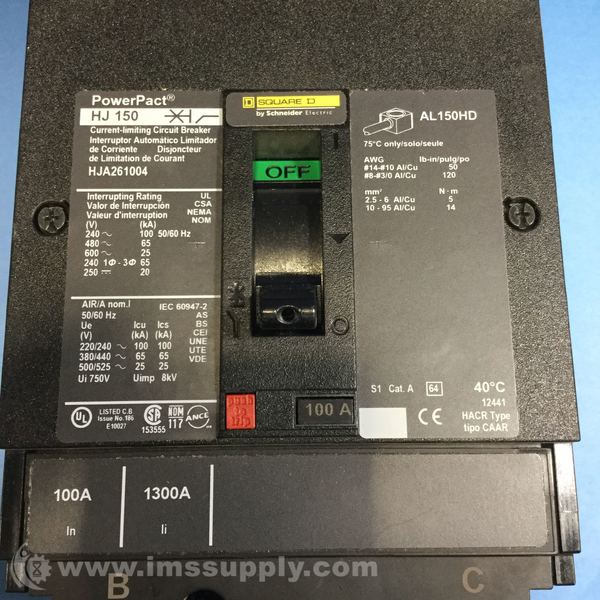

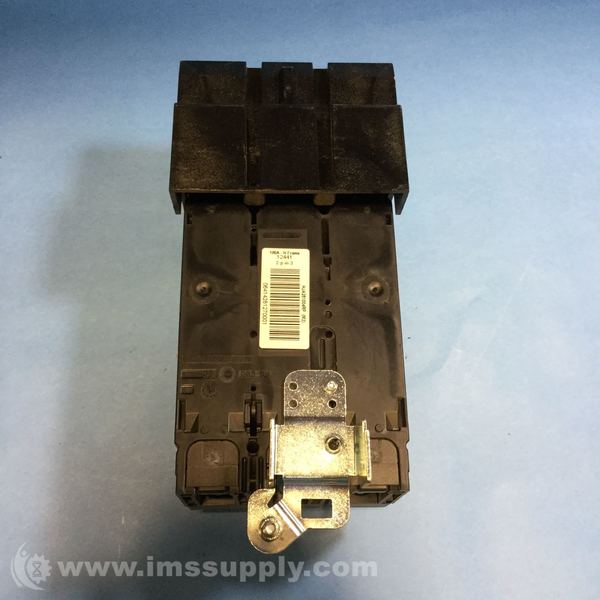

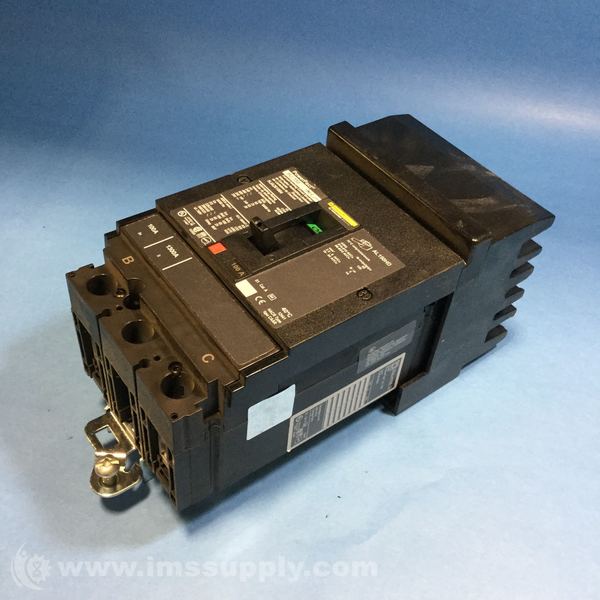

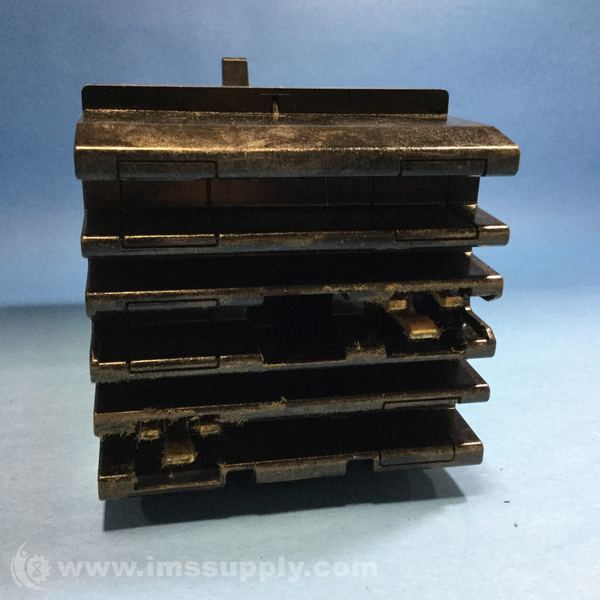

SQUARE D HJA261004 2-POLE 100A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: HJA261004
IMS Product Code: 1750309
Packaging: Sold Individually
Description:
Square D HJA261004 2-Pole 100A Circuit Breaker
2-pole, 100A, 600VAC/250VDC thermal-magnetic molded case circuit breaker with I-Line style plug-in mounting and long-time and instantaneous trip functions.
Specifications
- Amp: 100
- Volt: 600
- Pole: 2
- Phase: 1
- Connection: I-Line Style Plug-In
- Type: HJA
- Functions: LI - Long-Time and Instantaneous
- Protection: Thermal Magnetic
- AIC Ratings: 65kA@480V
- Weight: 4.85 lb
- Dimensions: 6 in H x 5 in W
- Compatible Wire Gauge (AWG): #14 - 3/0
- Mounting Style: I-Line
- Color: Black
- Breaking Capacity: 100 kA 240 V AC 50/60 Hz UL 489 || 65 kA 480 V AC 50/60 Hz UL 489 || 25 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489
- Continuous Current Rating: 80%
- Net Weight: 2.2 kg
- Network Frequency: 50/60 Hz
- Number Of Slots: 2 auxiliary switch OF (plug-in) || 1 alarm switch SD (plug-in) || 1 overcurrent trip switch SDE (plug-in) || 1 voltage release MN or MX (plug-in)
- Poles Description: 2P
- Rated Impulse Withstand Voltage: 8 kV IEC 60947-2
- Rated Insulation Voltage: 750 V IEC 60947-2
- Rated Operational Voltage: 690 V AC 50/60 Hz IEC 60947-3
- Rated Service Breaking Capacity: 100 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 65 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 25 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
- Standards: UL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
- Tightening Torque: 5-5 N.m 2.5-6 mm squared (AWG 14...AWG 10) || 14-14 N.m 10-95 mm squared (AWG 8...AWG 3/0)
- Trip Unit Technology: thermal-magnetic
- Wire Stripping Length: 16 mm
