SQUARE D HJA36150 MOLDED CASE CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: HJA36150
IMS Product Code: 1899936
Packaging: Sold Individually
Description:

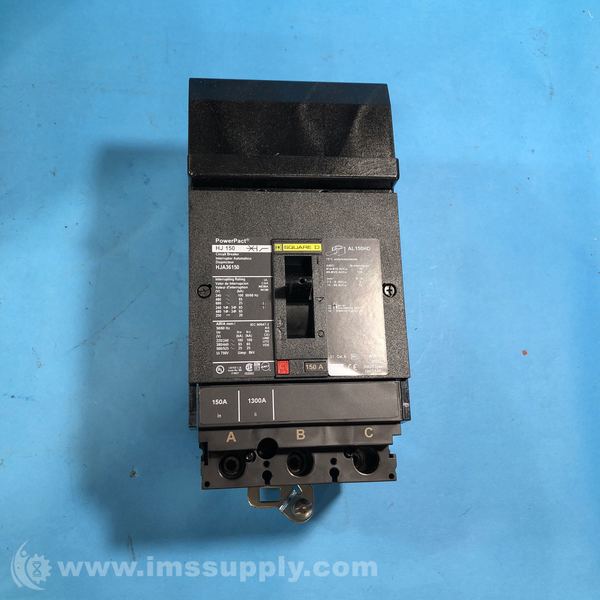

Square D HJA36150 Molded Case Circuit Breaker
3-pole, 150A, 600V, thermal-magnetic circuit breaker with I-Line connection. Features long-time and instantaneous trip functions, non-interchangeable trip unit, and Visi-Trip indicator. Suitable for use in Square D I-Line panelboards and switchboards.
Specifications
- Amperage: 150A
- Voltage: 240VAC, 480VAC, 600VAC, 250VDC
- Poles: 3
- AIC Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC
- Mounting Style: I-Line
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function: Long-Time, Instantaneous
- Wire Gauge: 14 AWG-3/0 AWG
- Dimensions (HxWxD): 9.37" x 4.48" x 4.8"
- Weight: 4.85 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 57 minutes.
