SQUARE D HJL26020 20A 2-POLE CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: HJL26020
IMS Product Code: 1951379
Packaging: Sold Individually
Description:
Square D HJL26020 20A 2-Pole Circuit Breaker
2-pole, 20A molded case circuit breaker from the PowerPacT H-Frame family. Unit-mount design for industrial control panels, switchboards, and motor control centers. Current-limiting capabilities with thermal-magnetic trip unit.
Specifications
- Amperage: 20A
- Voltage: 600VAC, 250VDC
- Poles: 2
- Phase: 1

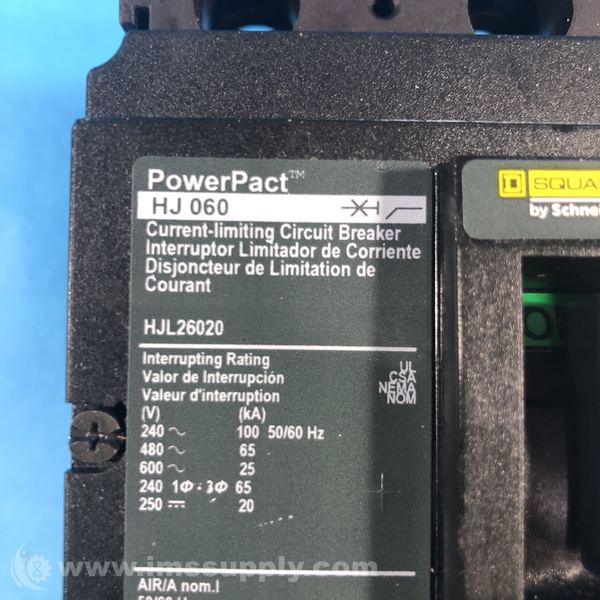

- AIC Rating: 100kA @ 240VAC, 65kA @ 480VAC, 25kA @ 600VAC, 20kA @ 250VDC
- Mounting Style: Unit Mount
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function: Long-Time, Instantaneous
- Wire Gauge: 14 AWG - 3/0 AWG (Al/Cu)
- Dimensions: 6.4 in H x 4.09 in W x 3.4 in D
- Standards: UL 489, CSA, CE, IEC 60947-2
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 8 minutes.
Used (Special):
Has wires attached
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 8 minutes.
