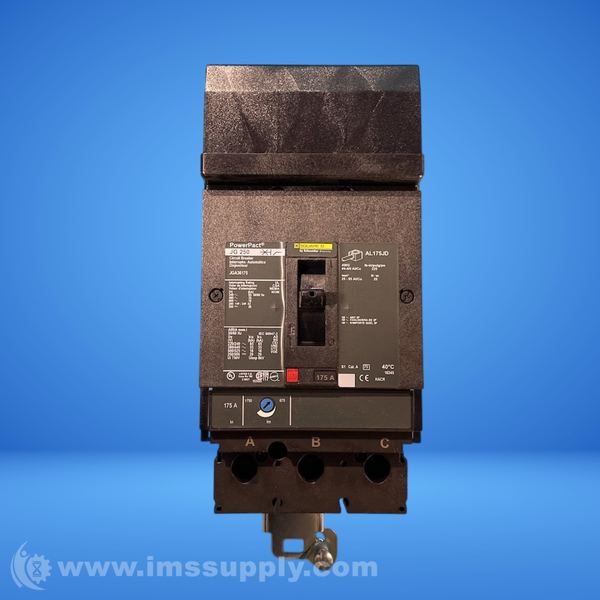

SQUARE D JGA36175 3-POLE 175A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: JGA36175
IMS Product Code: 2064640
Packaging: Sold Individually
Description:
Square D JGA36175 3-Pole 175A Circuit Breaker
3-pole thermal magnetic molded case circuit breaker with 175A current rating and 600VAC/250-500VDC voltage rating. I-Line style plug-in connection with LI (long-time and instantaneous) trip functions.
Specifications
- Amperage: 175
- Voltage: 600VAC, 250/500VDC
- Poles: 3
- Phase: 3
- Mounting Type: I-Line Bracket
- Interrupting Rating: 35kAIC at 480VAC, 65kAIC at 240VAC
- Connection Type: I-Line Style Plug-In
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous Trip
- Length (in): 3.4
- Width (in): 4.09
- Height (in): 7.5
- Wire Gauge: AWG 4 to AWG 4/0, Aluminum/Copper
- Temperature Rating: -25 to 70 degrees C
- Weight: 5.29 lbs
- Dimensions (HxWxD): 11.48" x 4.48" x 5.87"
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box (Special):
Part comes with screws, part# 48200 236 50.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
