SQUARE D JJL36175 3-POLE 175A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: JJL36175
IMS Product Code: 2121003
Packaging: Sold Individually
Description:

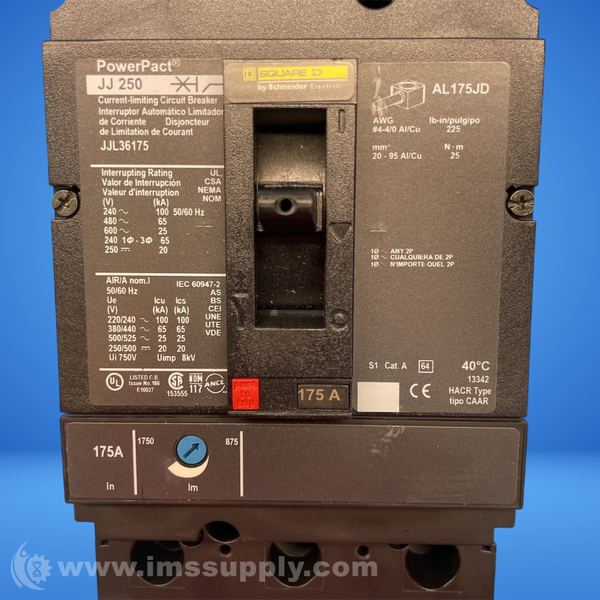

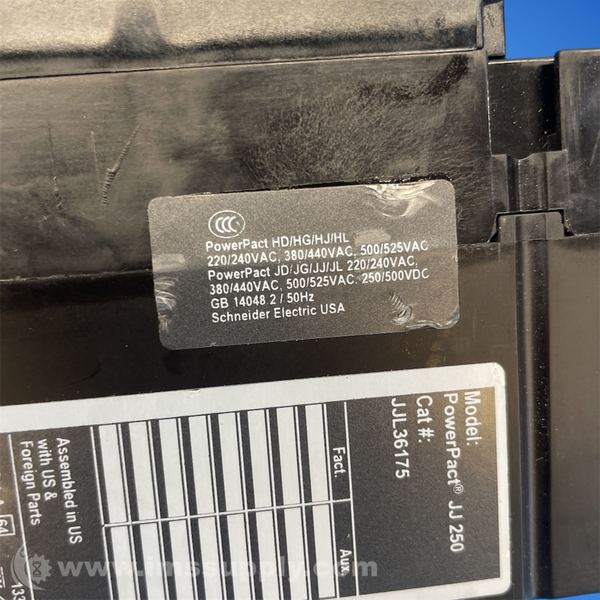

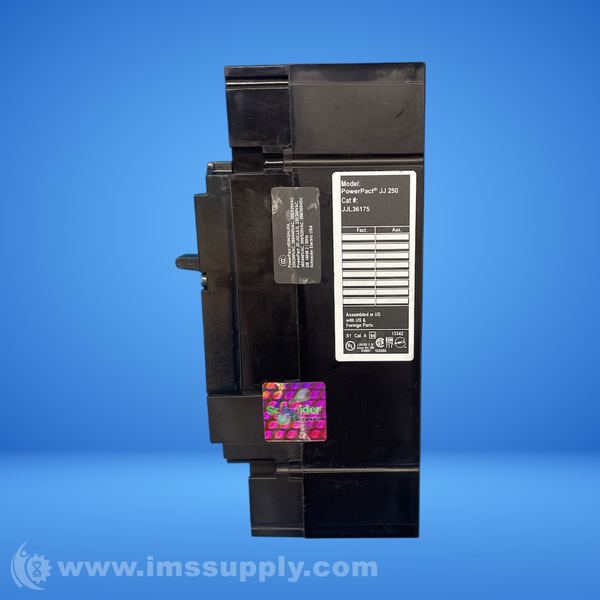

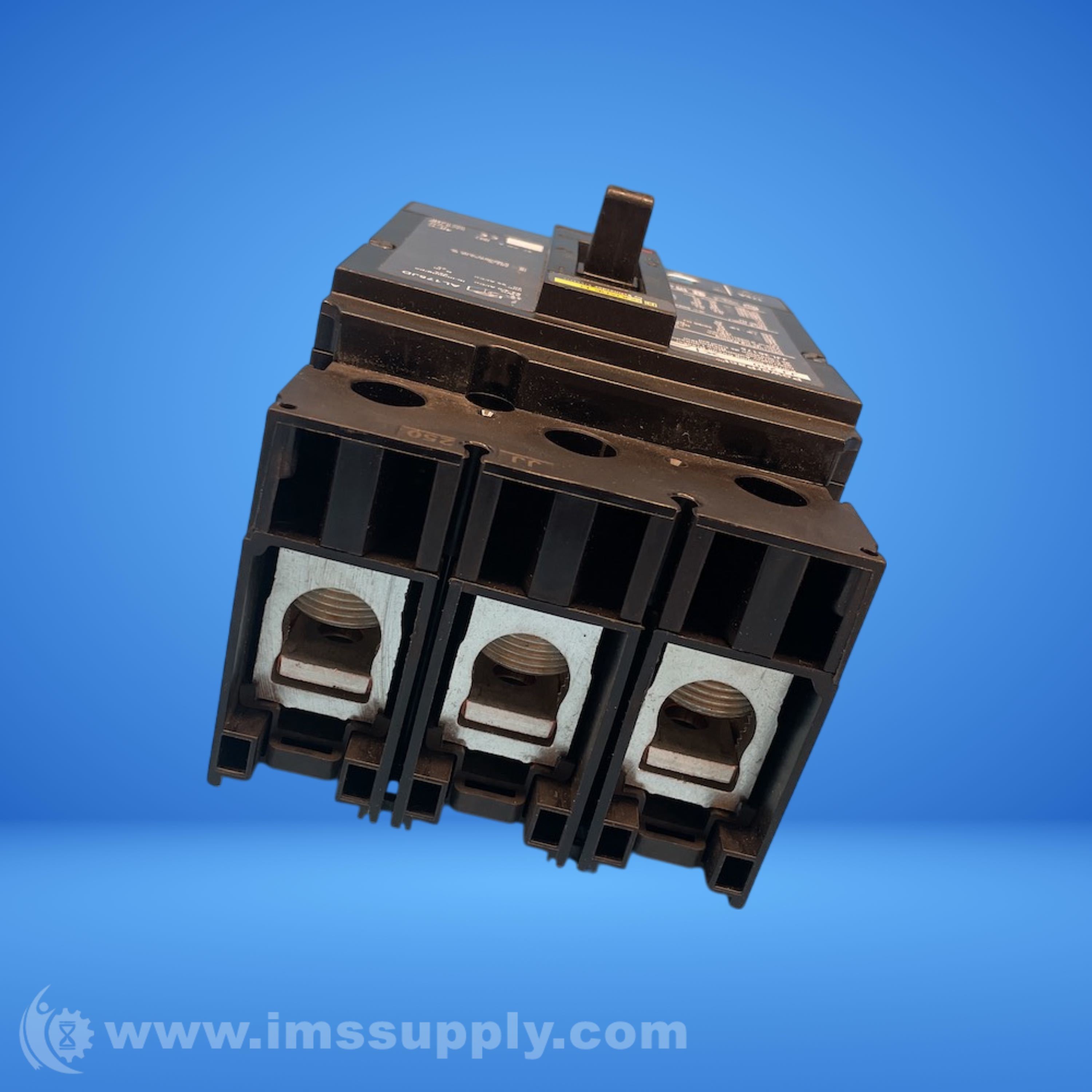

Square D JJL36175 3-Pole 175A Circuit Breaker
Thermal-magnetic molded case circuit breaker with 175A current rating, 600VAC/250VDC voltage rating, and 3-pole configuration. Features long-time and instantaneous trip functions with lug connections on both line and load ends.
Specifications
- Amperage: 175 A
- Voltage: 600 VAC, 250 VDC
- Number of Poles: 3
- Interrupting Rating: 65kAIC at 480VAC, 100kAIC at 240VAC
- Trip Unit Technology: Thermal-magnetic
- Connection Type: Feed-Thru
- Mounting Type: Unit Mount
- Dimensions: 7.5 in H x 4.09 in W x 3.4 in D
- Wire Gauge: AWG 4 to AWG 4/0, Aluminum/Copper
- Standards: UL, CSA, NEMA, NOM, IEC 60947-2
New - Missing Box (Special):

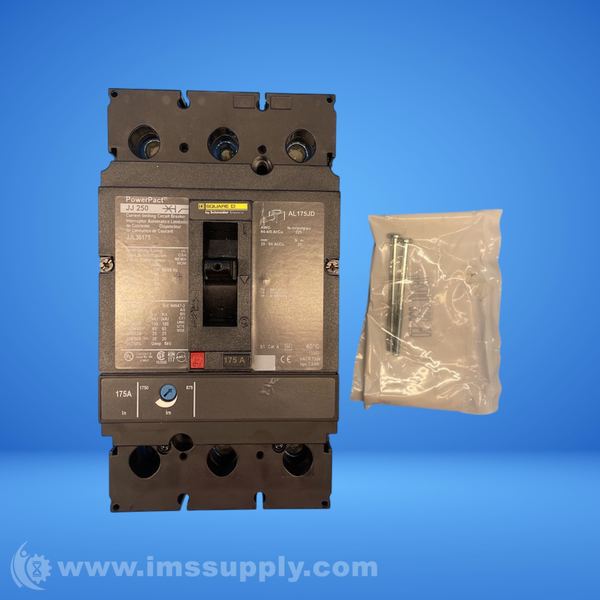

HAS QTY-1 PK OF SCREWS
