SQUARE D LGL36400U31X 3P 400A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: LGL36400U31X
IMS Product Code: 2083679
Packaging: Sold Individually
Description:

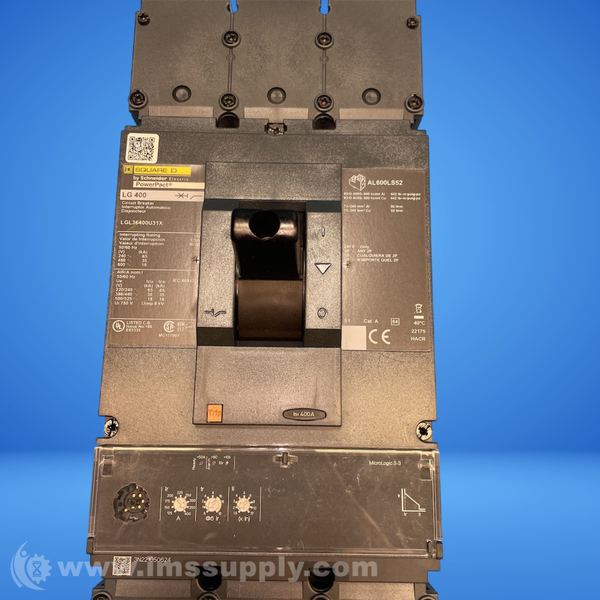

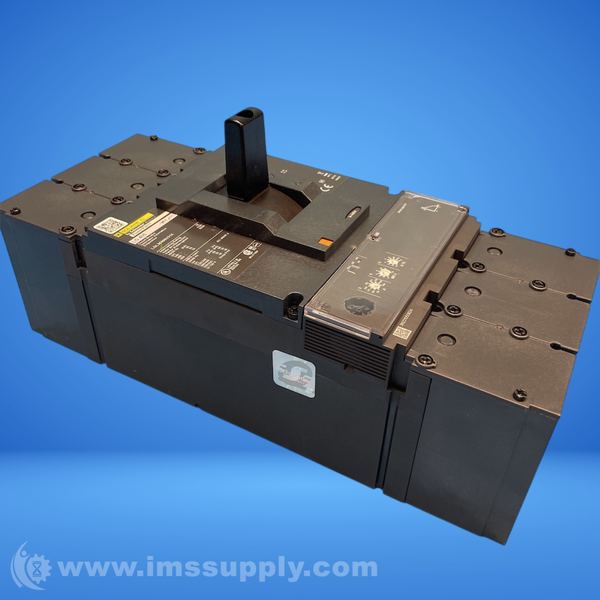

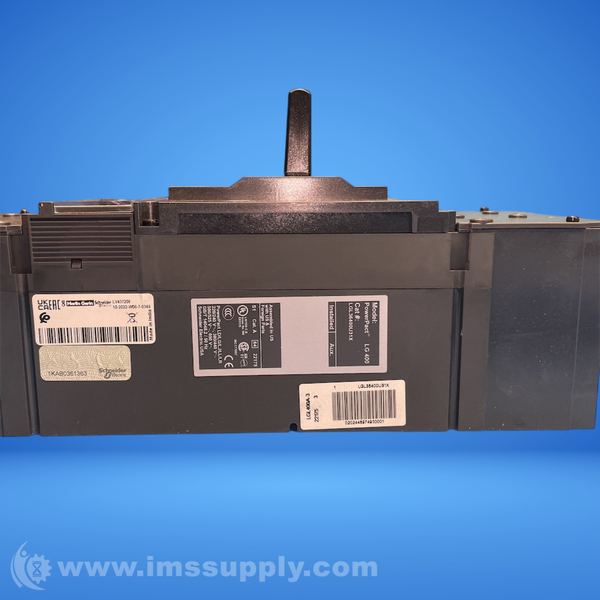

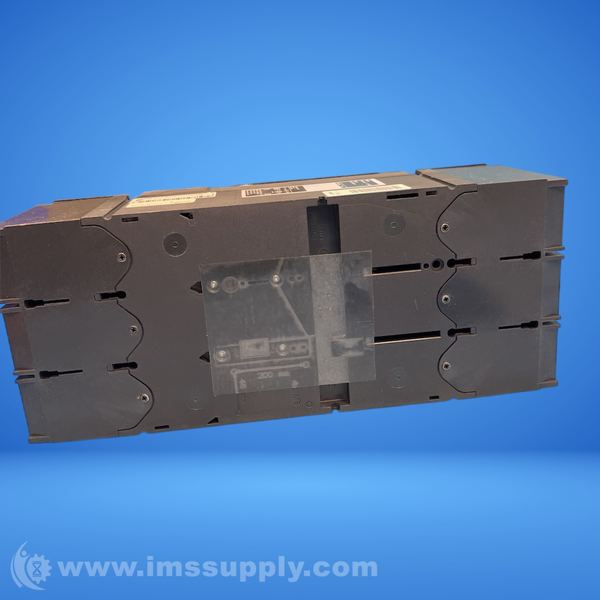

Square D LGL36400U31X 3P 400A Circuit Breaker
3-pole molded case circuit breaker with 400A current rating and 600V voltage rating. Unit mount type with Micrologic 3.3 trip unit and feed-thru lugs.
Specifications
- Amperage: 400
- Voltage: 600
- Poles: 3
- Mounting Type: Unit
- Frame Type: L-Frame
- Interrupt Rating: 18kA at 600VAC, 35kA at 480VAC, 65kA at 240VAC
- Trip Unit: Micrologic 3.3
- Lug Type: Feed-Thru Lugs
- Wire Size: 3 AWG to 500 kcmil
- Dimensions: 340 mm H x 140 mm W x 110 mm D
- Weight: 6.2 kg
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 53 minutes.
New - Missing Box (Special):

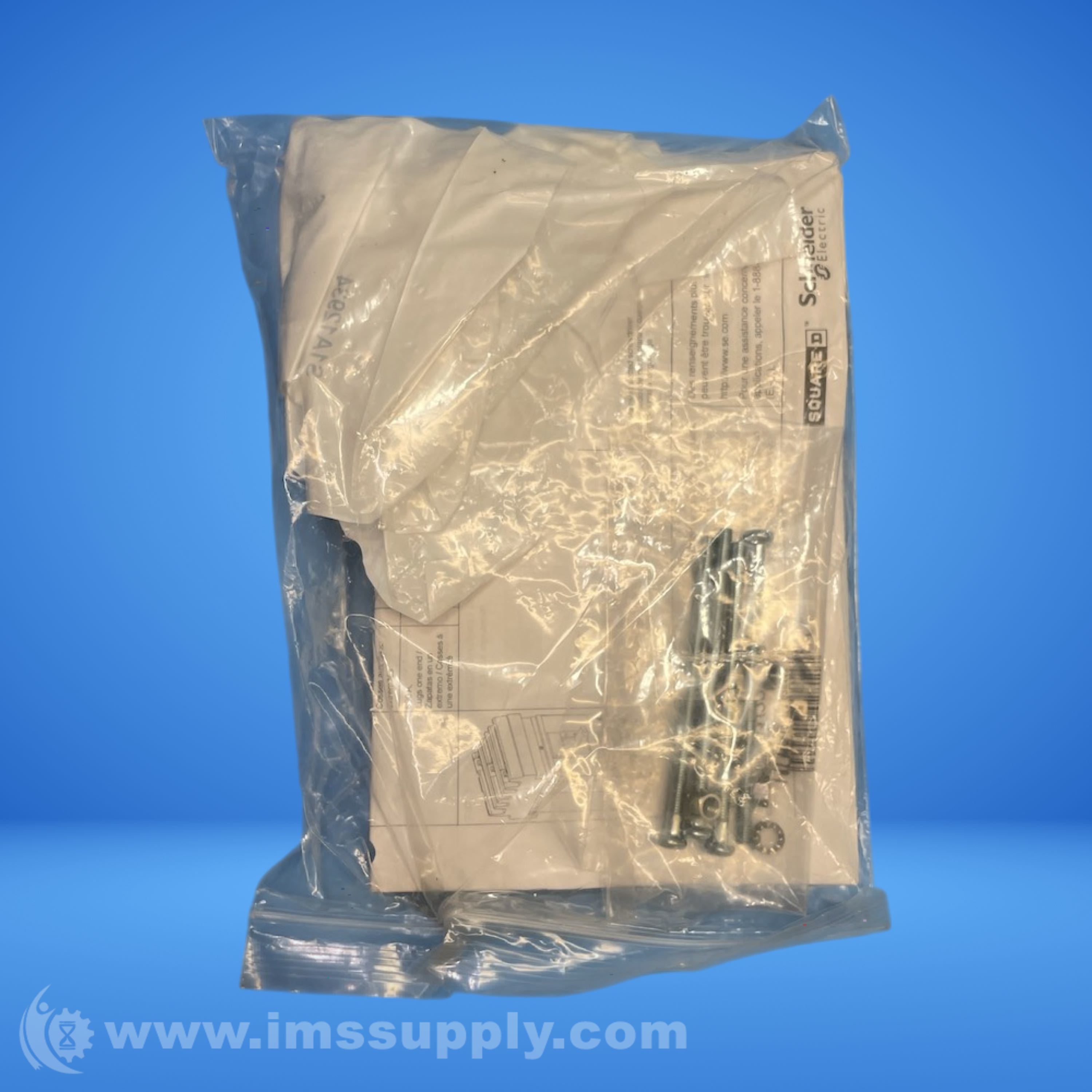

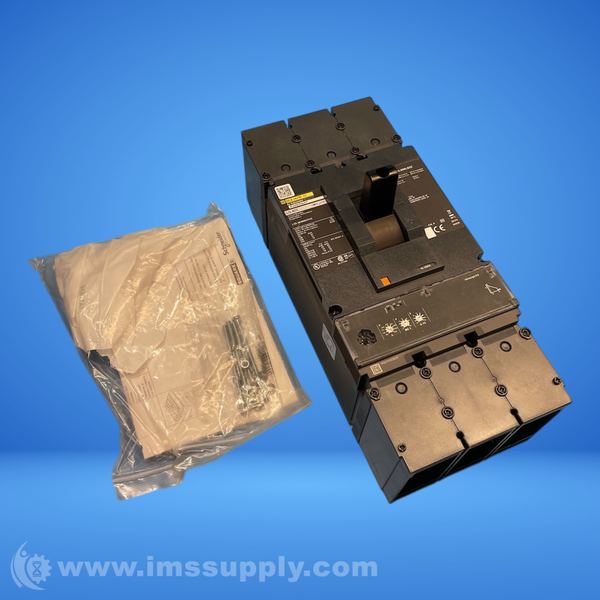

Comes with hardware.
Availability: 1 In Stock
Ships today if ordered in the next 13 hours and 53 minutes.
