SQUARE D Q232125 125A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: Q232125
IMS Product Code: 2156943
Packaging: Sold Individually
Description:

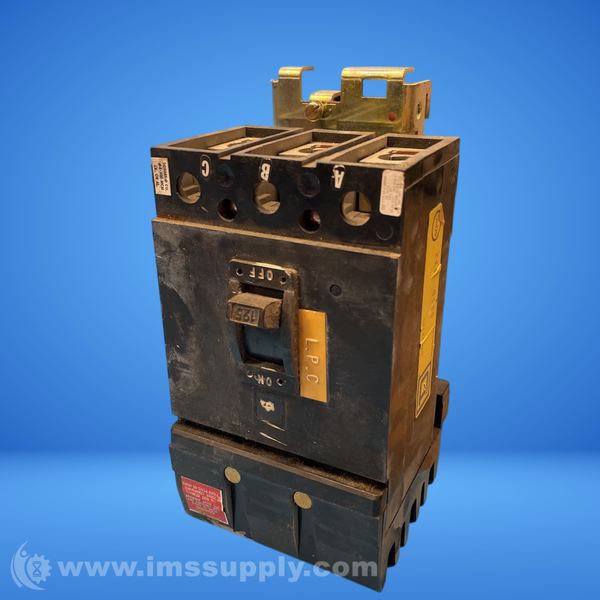

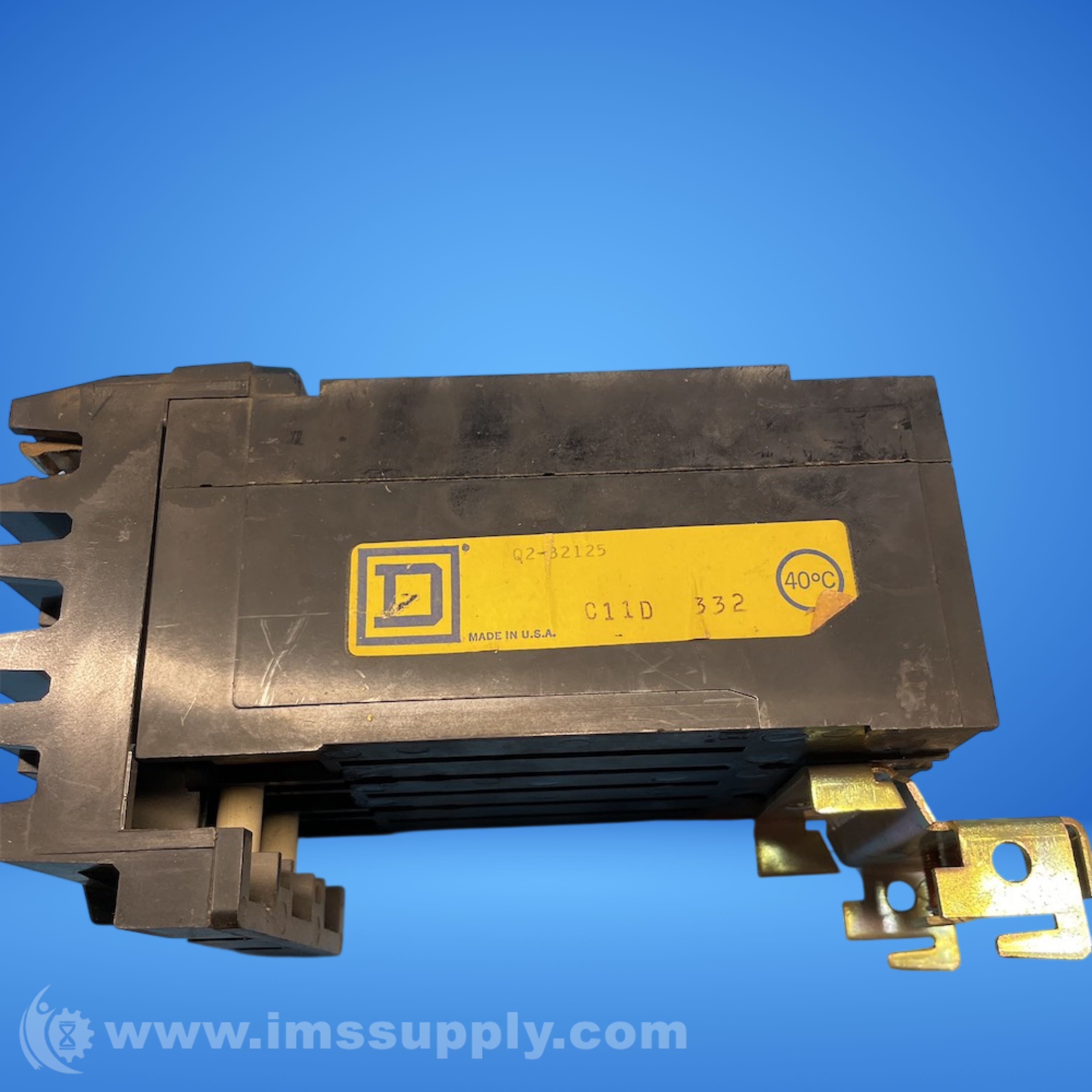

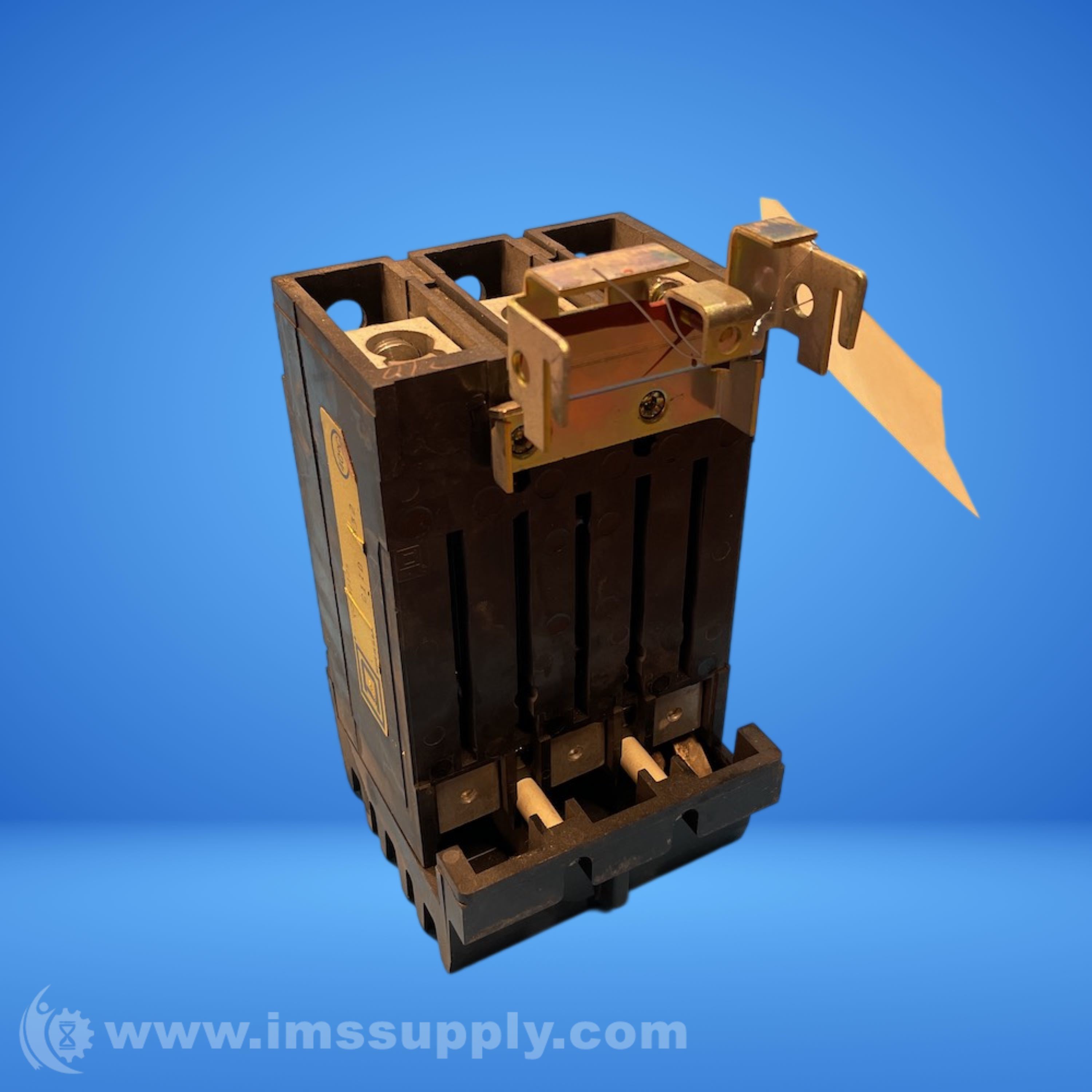

Square D Q232125 125A Circuit Breaker
Molded Case Circuit Breaker, 125 Amps, Type Q2, 3 Pole, 240 VAC, I-Line Style Plug-In, Thermal Magnetic, Interrupting Current: 10 kA at 240 VAC, Non-Interchangeable Trip, Long Time (LI) Trip Functions
Specifications
- Series: Q2
- Amperage: 125A
- Voltage: 240VAC
- Poles: 3
- Phase: 3
- AIC Rating: 10kA @ 240VAC
- Mounting Style: I-Line
- Terminal Type: Lugs
- Trip Technology: Thermal Magnetic
- Trip Function: Long-Time, Instantaneous
- Trip Adjustability: Fixed Thermal, Fixed Magnetic
- Wire Gauge: 4 AWG - 300 kcmil (Al/Cu)
- Standards: CSA C22.2 No. 5, NEMA AB 1, UL 489
- Approval: CSA, UL
- Temp Rating: 40C
- Construction Features: Visual Trip Indicator, HACR Rated
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 8 hours and 20 minutes.
