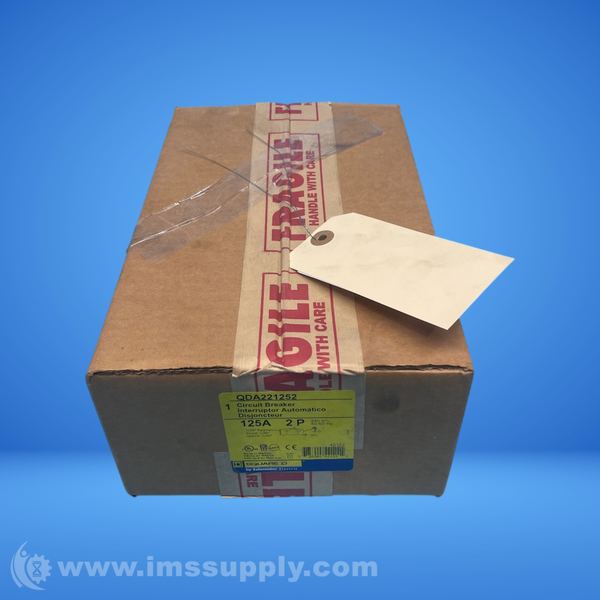

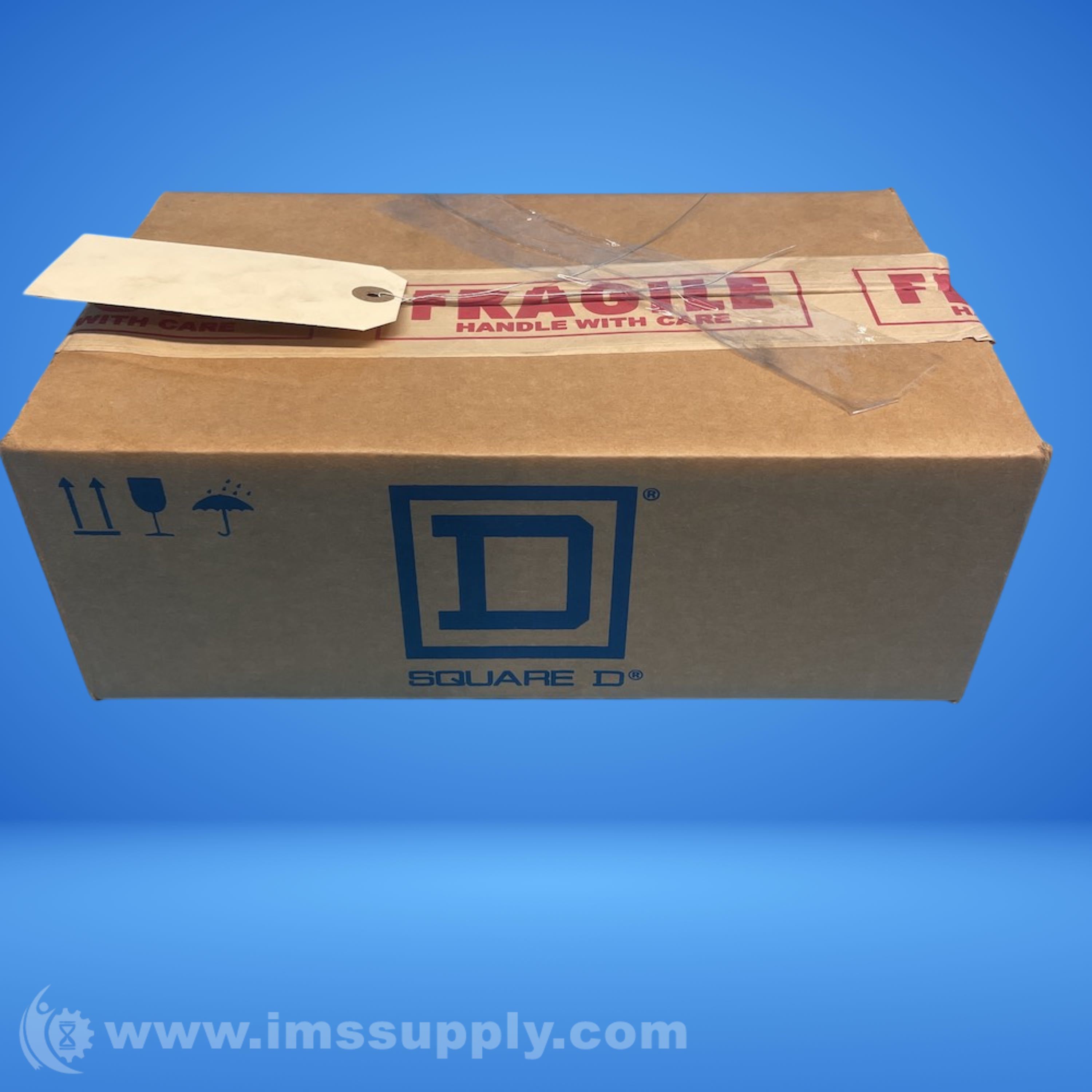

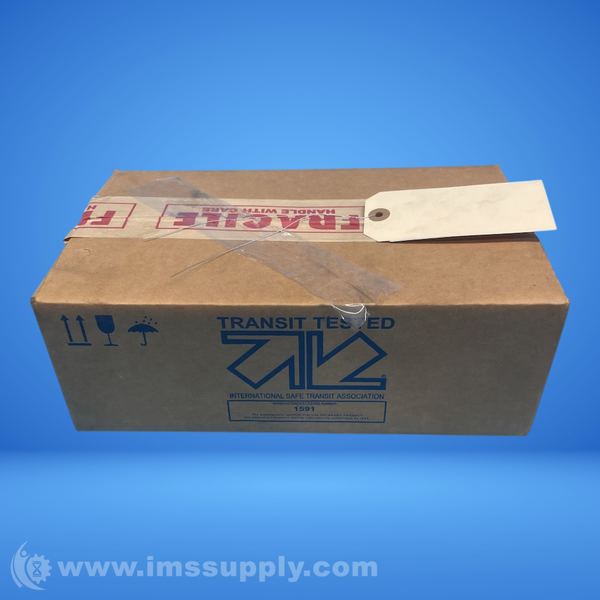

SQUARE D QDA221252 2-POLE 125A CIRCUIT BREAKER
Quick Overview
Manufactured By: SQUARE D
Manufacturer Part Number: QDA221252
IMS Product Code: 2133442
Packaging: Sold Individually
Description:
Square D QDA221252 2-Pole 125A Circuit Breaker
2-Pole thermal magnetic molded case circuit breaker with 125A current rating and 240VAC voltage rating. It has an I-Line style plug-in connection and includes long-time and instantaneous trip functions.
Specifications
- Amperage: 125
- Voltage: 240VAC
- Poles: 2
- Phase: 1
- Mounting Type: I-Line Bracket
- Interrupting Rating: 25kAIC at 240VAC
- Frame Type: QDA
- Connection Type: I-Line Style Plug-In
- Protection: Thermal Magnetic
- Functions: LI - Long-Time and Instantaneous Trip
- Length (in): 3.93
- Width (in): 3
- Height (in): 6.47
- Temperature Rating: 40 to 70 degrees C
- Actuator Type: Operating Handle
- Ue Rated Operational Voltage: 240 V AC 50/60 Hz UL
- Uimp Rated Impulse Withstand Voltage: 8 kV UL
- Trip Type: Thermal Magnetic
- Trip Range: 1200 to 2400 A
- Interrupt Rating: 25 kA
- Frame: Q
- Mounting Mode: I-Line bracket)
- Tightening Torque: 28-28 N.m 25-150 mm (AWG 4...300 kcmil)
- Mechanical Durability: 1000 cycles loaded, 5000 cycles no load
- Continuous Current Rating: 80 %
- Control Type: operating handle
- Device Application: distribution
- Magnetic Hold Current: 1200 A
- Magnetic Tripping Current: 2400 A
- Network Frequency: 50/60 Hz
- Poles Description: 2P
- Trip Unit Technology: thermal-magnetic
- Wire Stripping Length: 22 mm
- Country of Origin: Mexico
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
