SUN HYDRAULICS RDDA-LCN RELIEF VALVE
Quick Overview
Manufactured By: SUN HYDRAULICS
Manufacturer Part Number: RDDA-LCN
IMS Product Code: 2121786
Packaging: Sold Individually
Description:

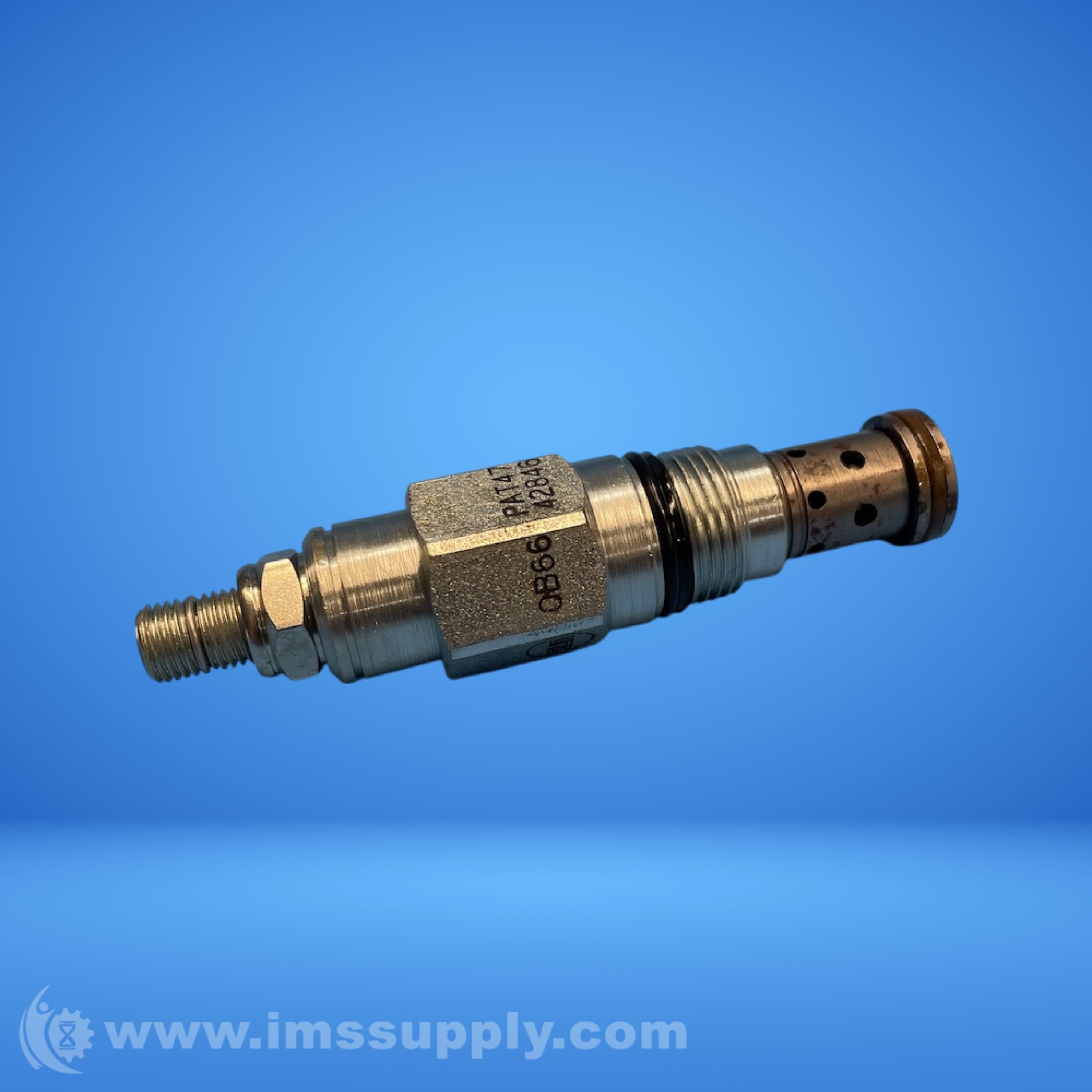

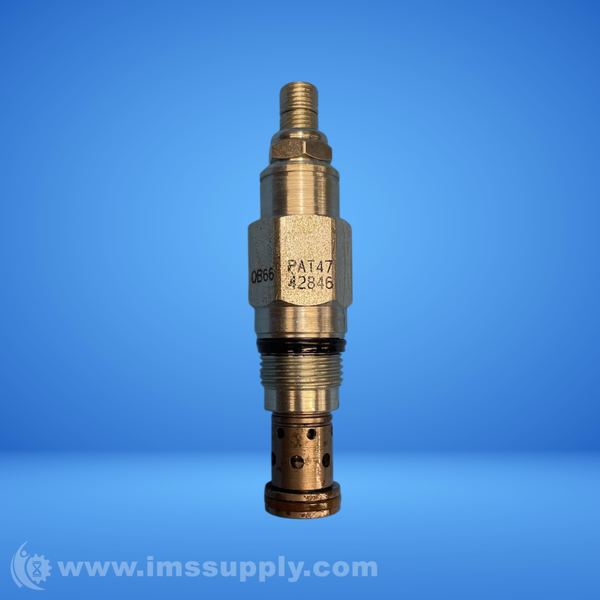

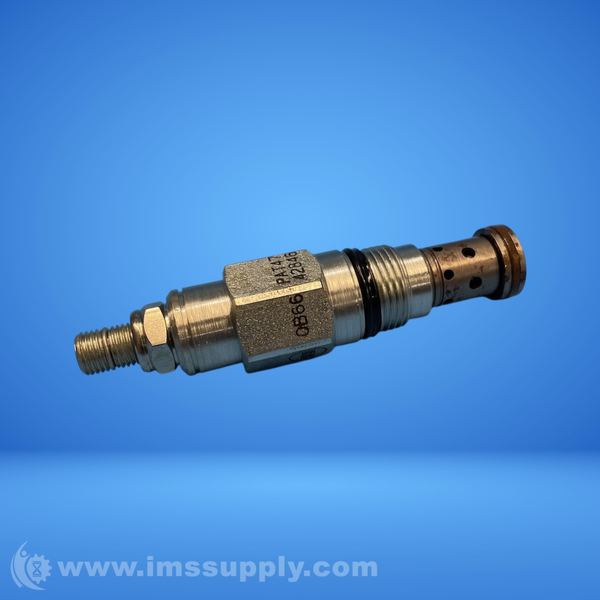

Sun Hydraulics RDDA-LCN Relief Valve
Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise.
Specifications
- Control: Standard Screw Adjustment
- Adjustment Range: 70 - 420 Bar / 1000 - 6000 PSI
- Seal Material: Buna-N
- Cavity: T-10A
- Series: 1
- Capacity: 95 L/min.
- Maximum Operating Pressure: 350 bar
- Factory Pressure Settings Established at: 15 L/min.
- Maximum Valve Leakage at Reseat: 0.7 cc/min.
- Response Time - Typical: 2 ms
- Reseat: >90% of setting
- Adjustment - No. of CW Turns from Min. to Max. setting: 6
- Valve Hex Size: 22.2 mm
- Valve Installation Torque: 41 - 47 Nm
- Adjustment Screw Internal Hex Size: 4 mm
- Locknut Hex Size: 15 mm
- Locknut Torque: 9 - 10 Nm
- Model Weight: 0.17 kg.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 10 minutes.
