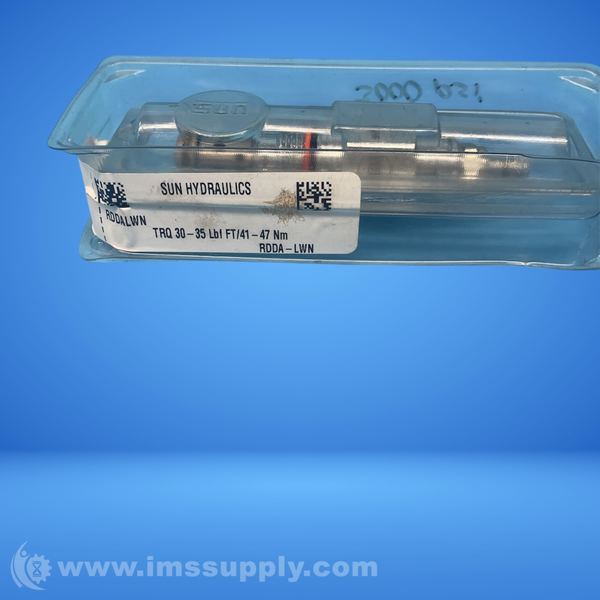

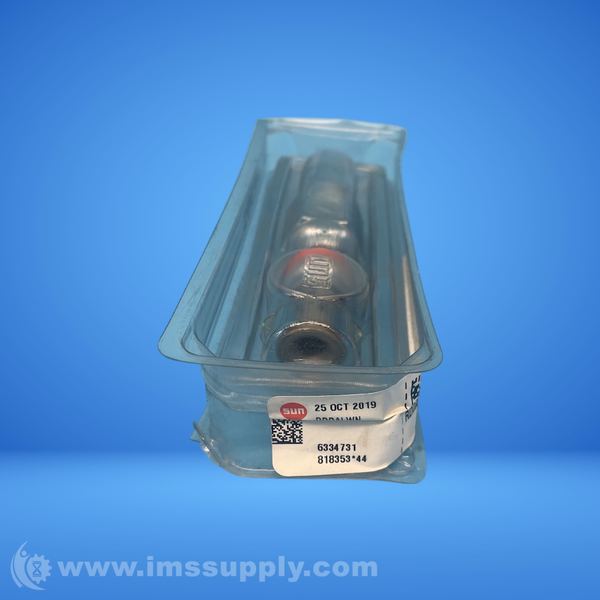

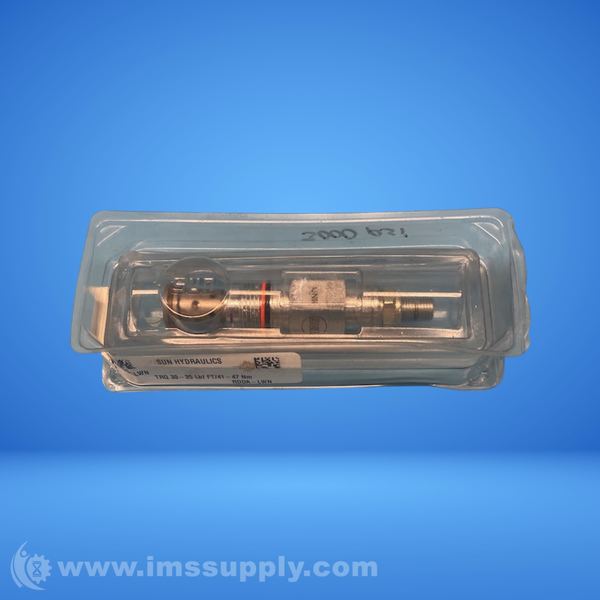

SUN HYDRAULICS RDDA-LWN DIRECT-ACTING RELIEF VALVE
Quick Overview
Manufactured By: SUN HYDRAULICS
Manufacturer Part Number: RDDA-LWN
IMS Product Code: 2132933
Packaging: Sold Individually
Description:
Sun Hydraulics RDDA-LWN Direct-Acting Relief Valve
Direct-acting relief cartridges are normally closed, pressure-limiting valves used to protect hydraulic components from pressure transients.
Specifications
- Cavity: T-10A
- Series: 1
- Capacity: 25 gpm/95 L/min
- Maximum Operating Pressure: 5000 psi/350 bar
- Factory Pressure Settings Established at: 4 gpm/15 L/min
- Maximum Valve Leakage at Reseat: 10 drops/min/0.7 cc/min
- Response Time - Typical: 2 ms
- Reseat: >90% of setting
- Adjustment - Number of Clockwise Turns to Increase Setting: 6
- Valve Hex Size: 7/8 in./22.2 mm
- Valve Installation Torque: 30 - 35 lbf ft/41 - 47 Nm
- Adjustment Screw Internal Hex Size: 5/32 in./4 mm
- Locknut Hex Size: 9/16 in./15 mm
- Locknut Torque: 80 - 90 lbf in./9 - 10 Nm
- Model Weight: 0.30 lb/0.15 kg
- Seal Material: Buna-N
- Control: Standard Screw Adjustment
- Adjustment Range: 800 to 4500 PSI (55 to 315 Bar)
- Standard Setting: 1000 PSI (70 Bar)
