TB WOODS 3.6X2B-SH V-BELT PULLEY
Quick Overview
Manufactured By: TB WOODS
Manufacturer Part Number: 3.6X2B-SH
IMS Product Code: 2123566
Packaging: Sold Individually
Description:

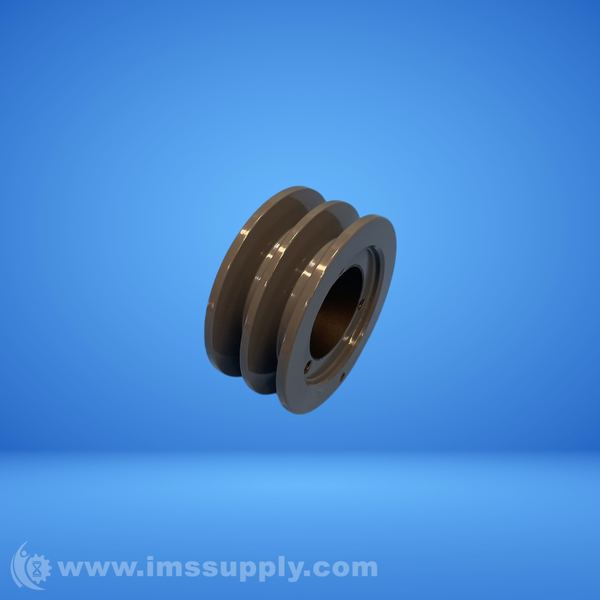

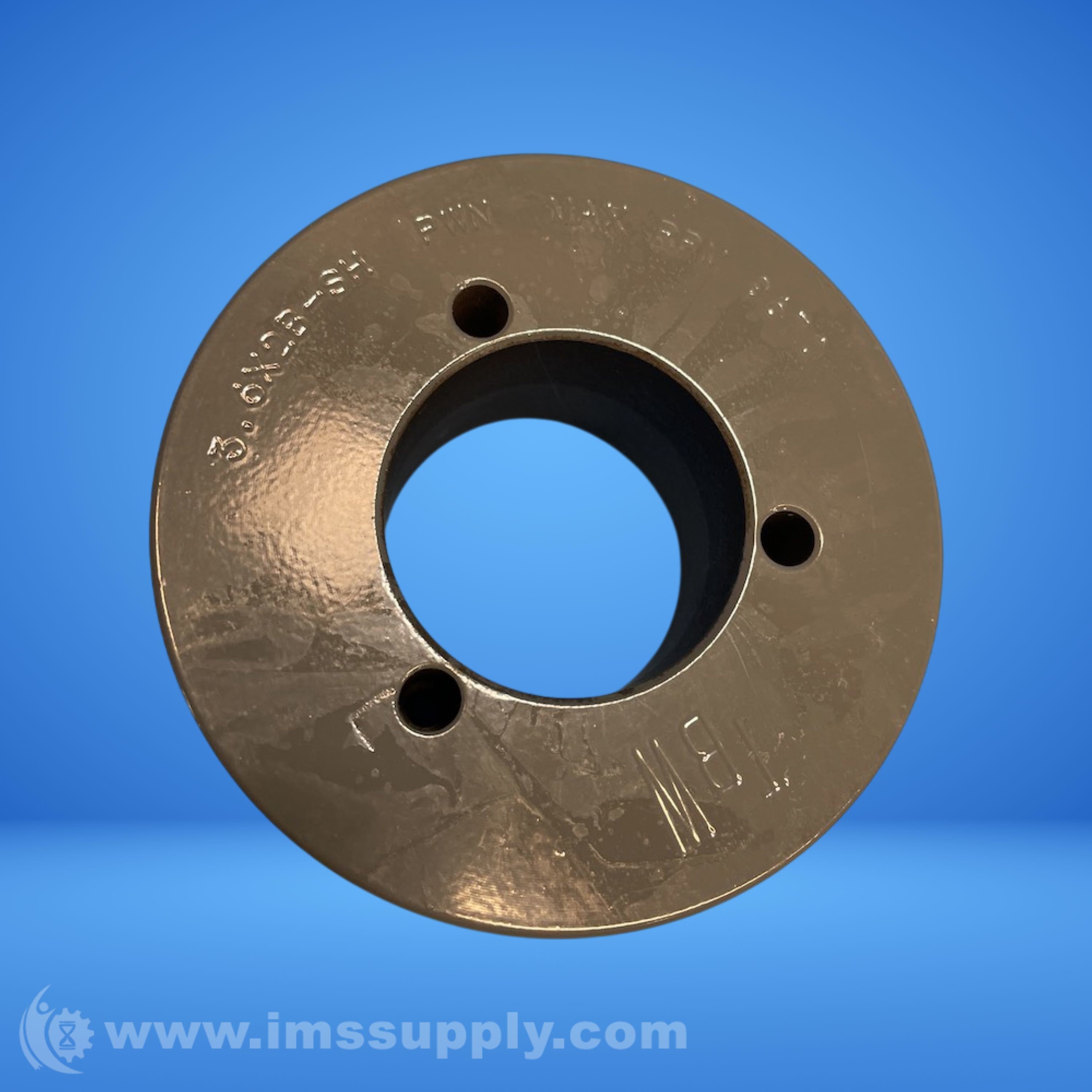

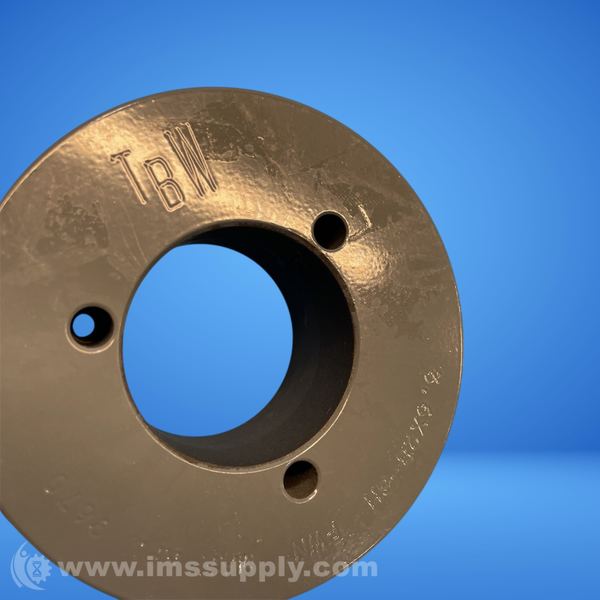

TB Woods 3.6X2B-SH V-Belt Pulley
Ductile iron V-belt pulley with 2 grooves, A-B belt section, and quick disconnect bushing.
Specifications
- balance: Standard, 1 plane
- belt section: A-B
- bore type: Quick disconnect bushing
- bushing: SH
- datum diameter: 3.6
- face width: 1.75
- material type: DI
- max rpm: 9670
- number of grooves: 2
- outside diameter: 3.95
- weight: 2.50 lbs
