TDK-LAMBDA DLP240-24-1 DIN RAIL POWER SUPPLY
Quick Overview
Manufactured By: TDK-LAMBDA
Manufacturer Part Number: DLP240-24-1
IMS Product Code: 2012145
Packaging: Sold Individually
Description:

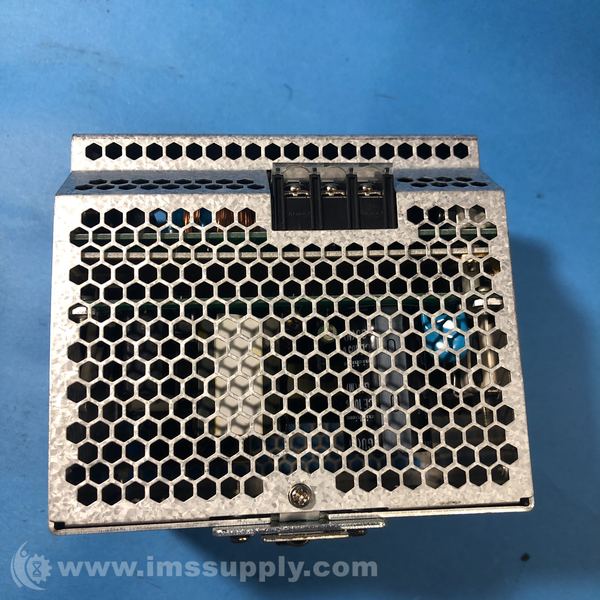

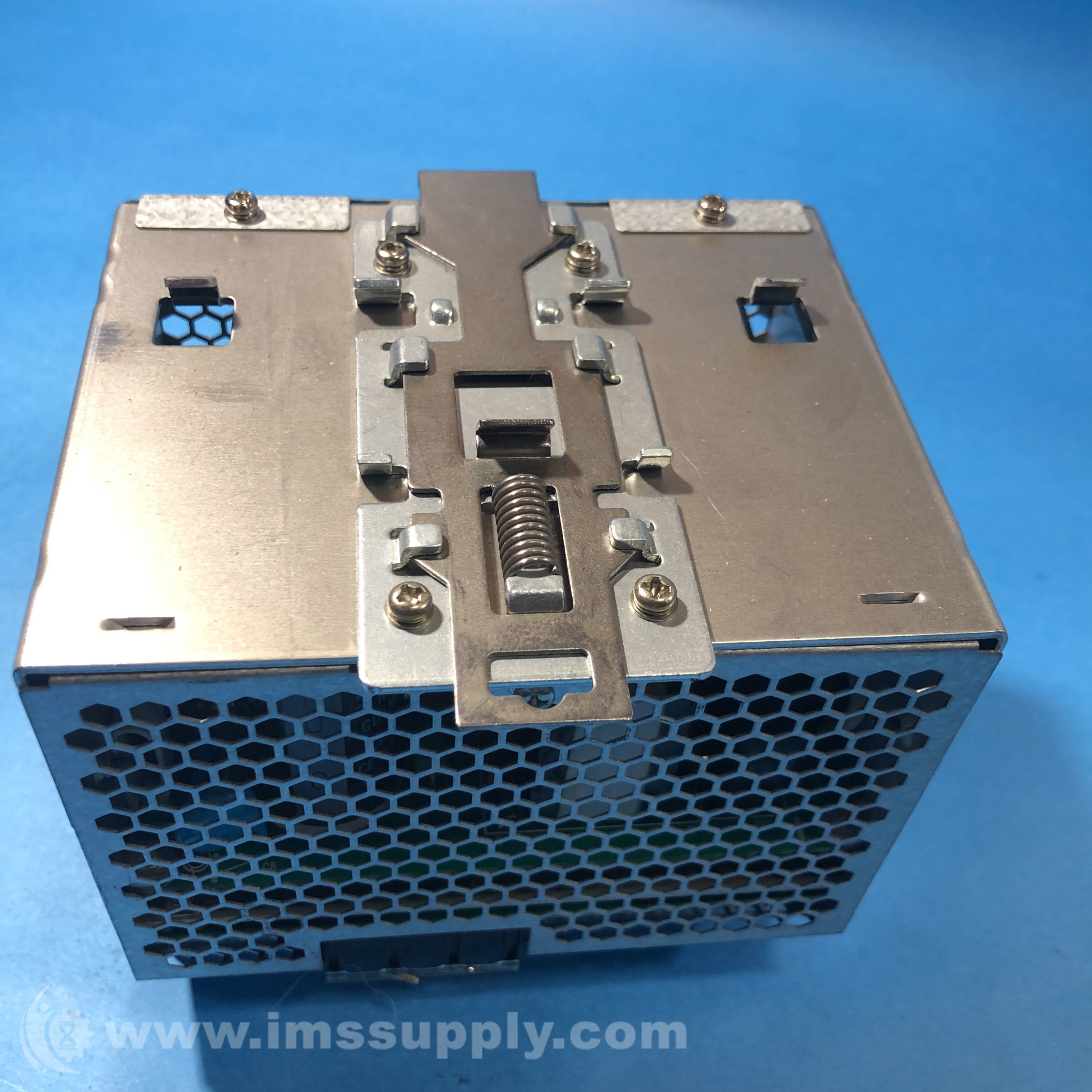

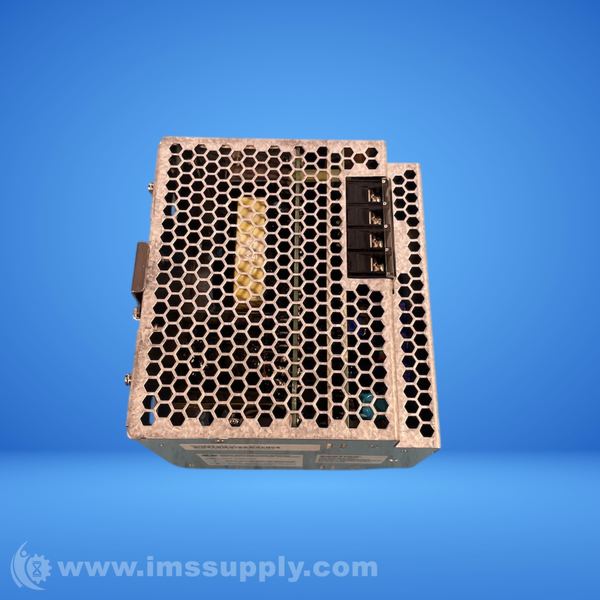

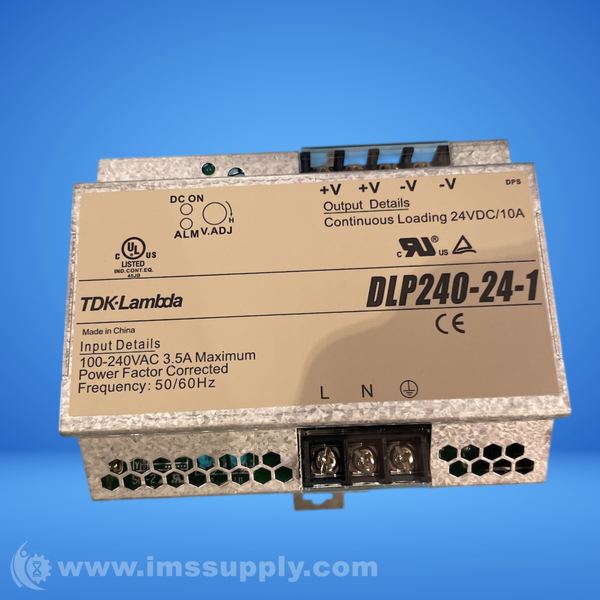

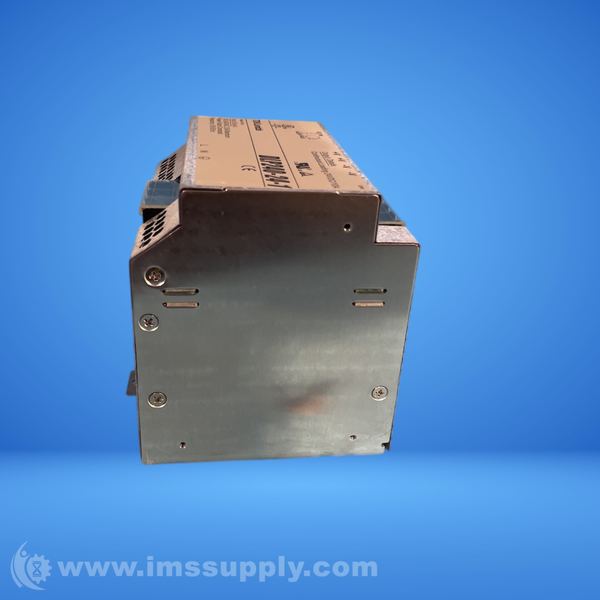

TDK-Lambda DLP240-24-1 DIN Rail Power Supply
DIN rail mount type, Output: 240W, 24V
Specifications
- Input Voltage Range[AC]: 85 to 265Vac
- Input Voltage Range[DC]: 120 to 370Vdc
- Efficiency: 86% Typ.
- Rated Output Voltage[DC]: 24Vdc
- Output Voltage Range[DC]: 21.6 to 28Vdc
- Maximum Output Current: 10A
- Maximum Output Power: 240W
- Package Type & Size: DIN rail
- Width( W ): 120mm Nom. (4.72in Nom.)
- Height( H ): 97mm Nom. (3.82in Nom.)
- Depth( D ): 110mm Nom. (4.33in Nom.)
- Weight: 1000g Typ. (2.2lbs Typ.)
- Operating Temp. Range: -10 to 60 degrees C
- Cooling: Convection

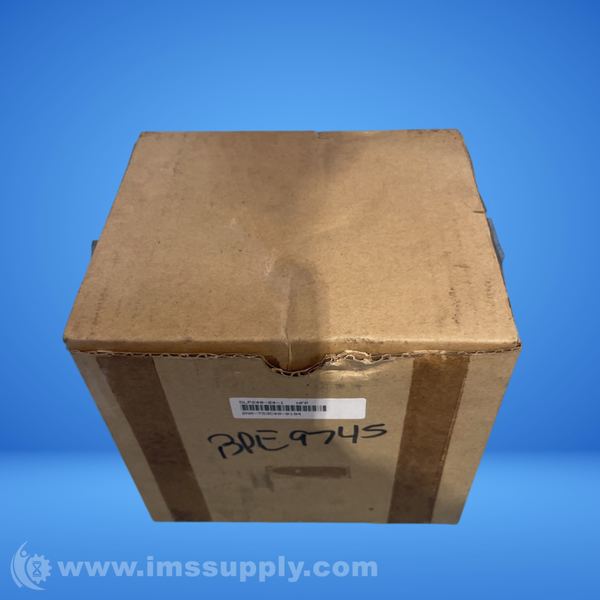

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 3 In Stock
Ships today if ordered in the next 3 hours and 8 minutes.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
Ships today if ordered in the next 3 hours and 8 minutes.
