TDK-LAMBDA DSP100-24 DIN RAIL POWER SUPPLY
Quick Overview
Manufactured By: TDK-LAMBDA
Manufacturer Part Number: DSP100-24
IMS Product Code: 2156995
Packaging: Sold Individually
Description:

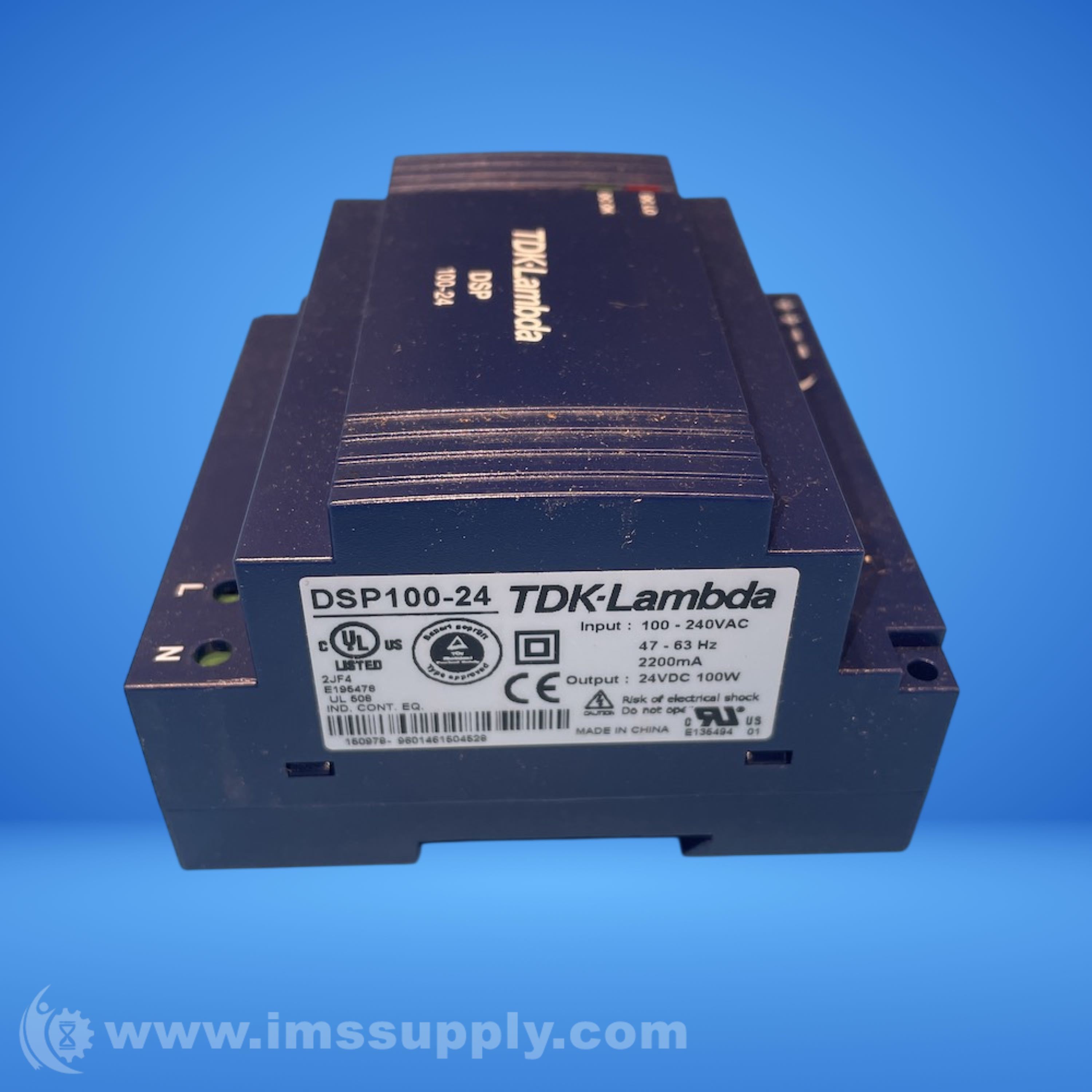

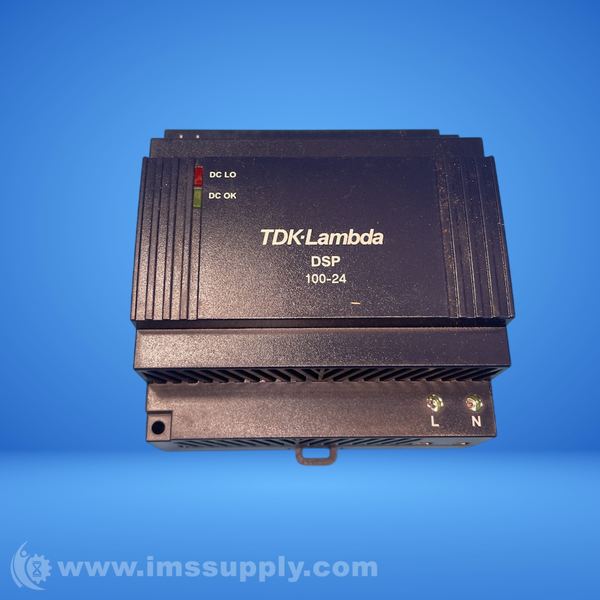

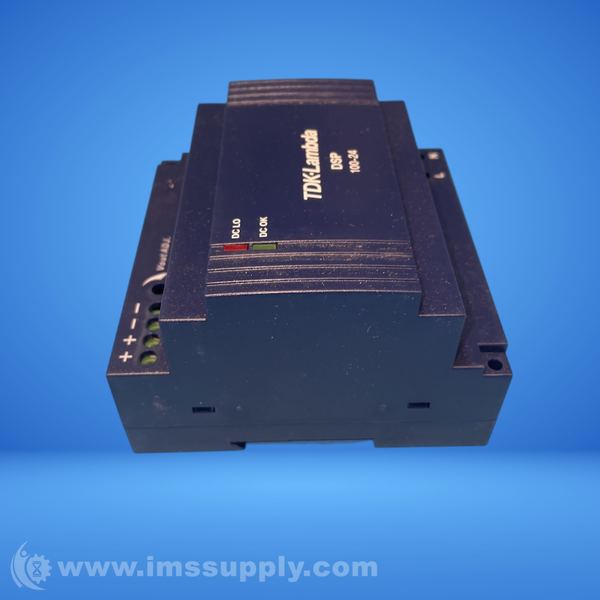

TDK-Lambda DSP100-24 DIN Rail Power Supply
AC-DC Power Supplies DIN rail mount, Output: 100.8W, 24V
Specifications
- Input: Single-phase
- Input Voltage Range AC: 85 to 264Vac
- Input Voltage Range DC: 120 to 370Vdc
- Efficiency: 85% Typ.
- Rated Output Voltage DC: 24Vdc
- Output Voltage Range DC: 24 to 28Vdc
- Maximum Output Current: 4.2A
- Maximum Output Power: 100.8W
- Package Type & Size: DIN rail
- Width: 90mm Nom. (3.54in Nom.)
- Height: 91mm Nom. (3.58in Nom.)
- Depth: 56.8mm Nom. (2.24in Nom.)
- Weight: 320g Typ. (0.7lbs Typ.)
- Operating Temp. Range: -25 to 71 degrees C
- Cooling: Convection
- Safety Standard Certified: EN60950-1, UL60950-1, EN62368-1, UL62368-1, UL508, UL1310 Class 2
- Number of Outputs: 1
- Power Rating: 100W
- PSU type: Switched Mode
New - Open Box:

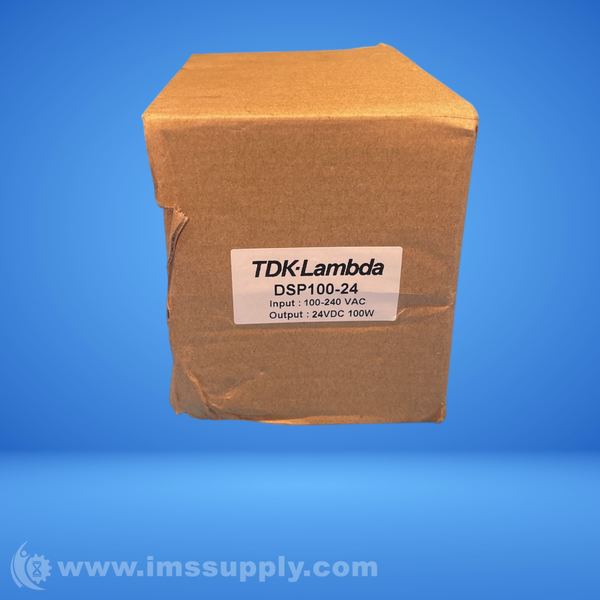

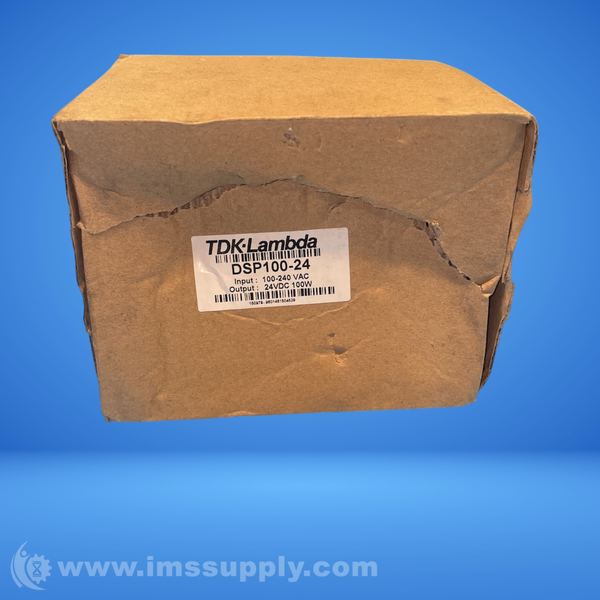

A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
