TE CONNECTIVITY W58-XB1A4A-30 THERMAL CIRCUIT BREAKER
Quick Overview
Manufactured By: TE CONNECTIVITY
Manufacturer Part Number: W58-XB1A4A-30
IMS Product Code: 2129435

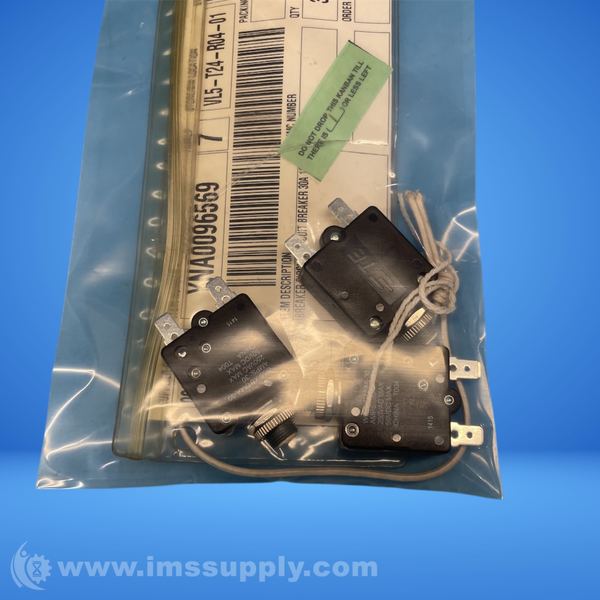

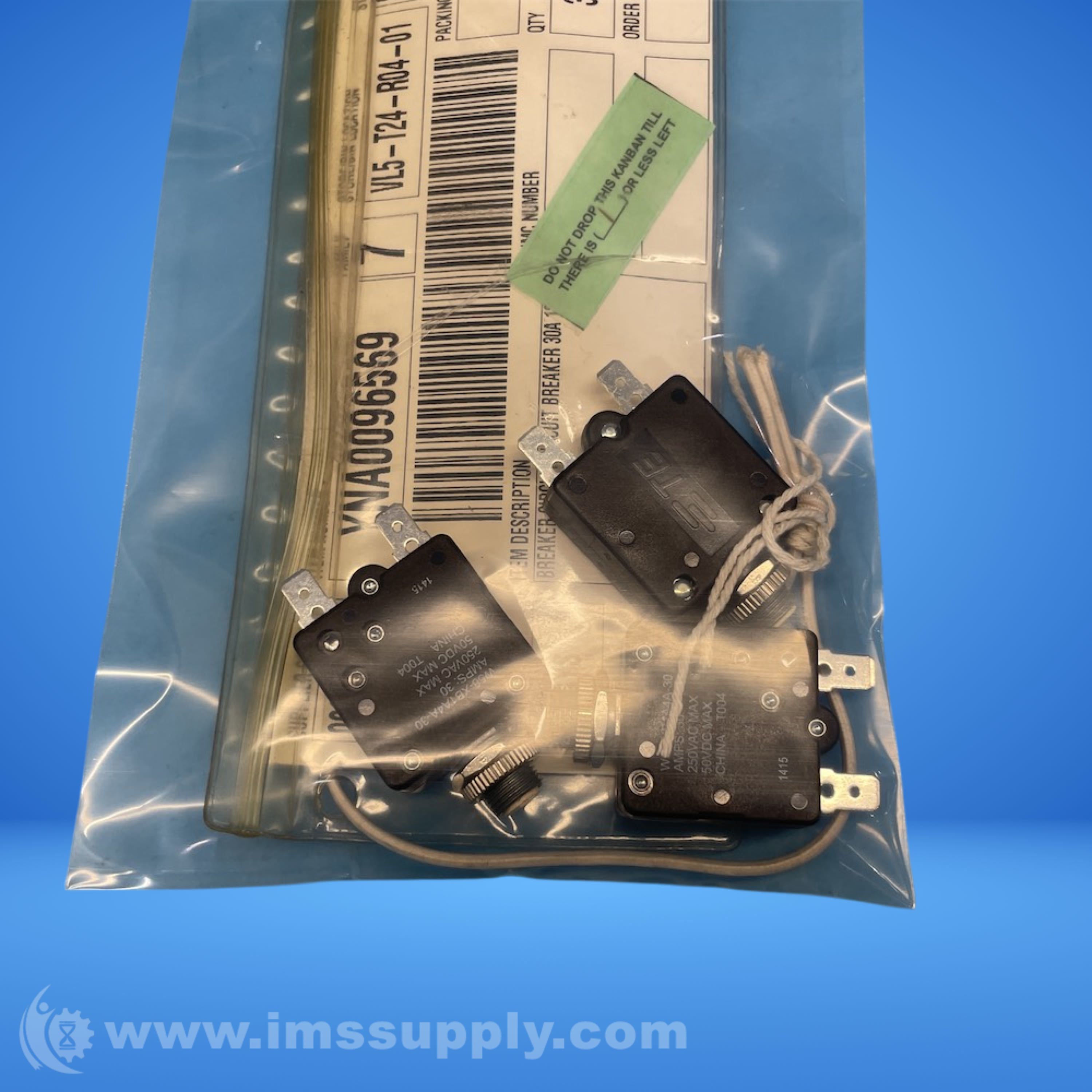

Packaging: Pack of 3
Description:

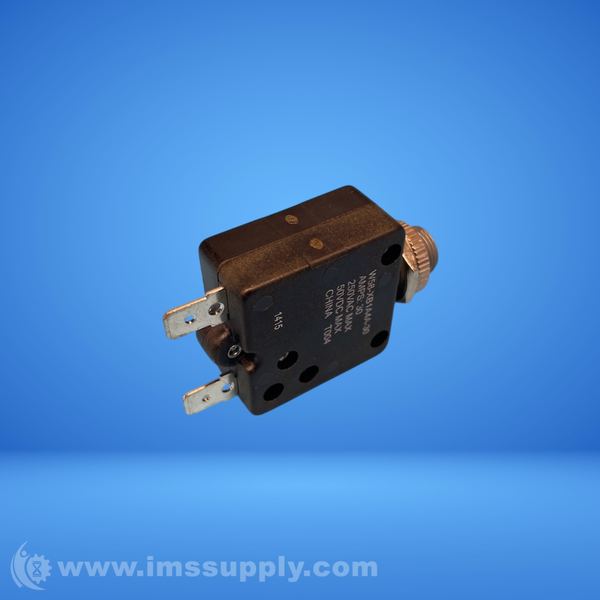

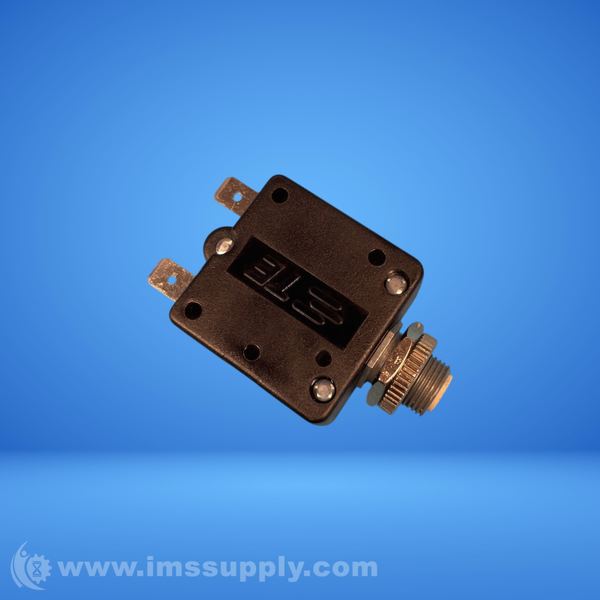

TE Connectivity W58-XB1A4A-30 Thermal Circuit Breaker
Thermal circuit breaker with 30A current rating, 250VAC/50VDC, 1 pole, push-to-reset actuator.
Specifications
- Circuit Breaker Type: Thermal
- Circuit Function: Series Trip
- Actuator Color: White
- Operating Voltage (VAC): 250
- Operating Voltage (VDC): 50
- Current Rating (A): 30
- Interrupt Capacity: 2000A @ 50VDC or 1000A @ 250VAC
- Number of Poles: 1
- Actuator Type: Push to Reset
- Panel Cutout Size (in): .44 - .45 (Diameter)
- Trip Time at 200% (seconds): 6 - 30
- Terminal Configuration: 6.35 [.25] Straight Quick Connect Tab
- Mounting Bushing: 7/16 x .5 [12.7mm] Long
- Mounting Options: Knurled Nut/Hex Nut
- Stamped Marking Type: Red Rate Marking
- Series: W58
- Mounting Type: Panel Mount
- Termination Type: QC Tabs
- RoHS Compliance: Yes
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
