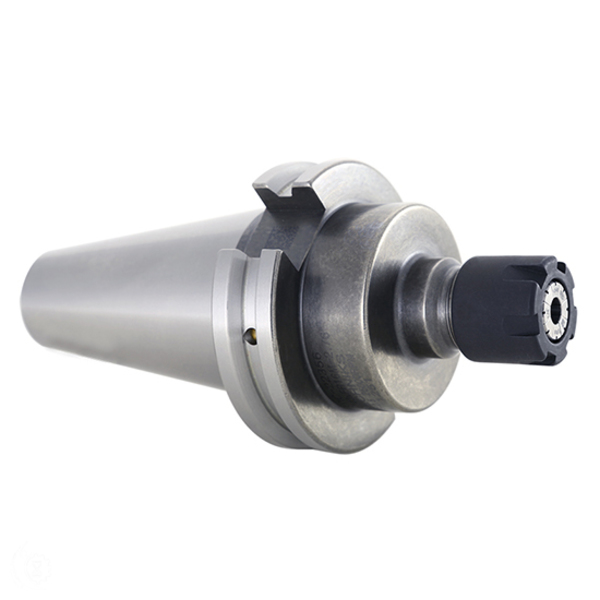

TECHNIKS 22354-8.5 CAT 40 X ER 11M - 8.5 WITH MINI NUT
Starting At: $515.85
Quick Overview
Manufactured By: TECHNIKS
Manufacturer Part Number: 22354-8.5
IMS Product Code: 1782641
Packaging: Sold Individually
Description:
Techniks 22354-8.5 CAT 40 x ER 11M - 8.5 with Mini Nut
Specifications:
- UNSPSC Code: 27112807
- Collet Series: ER11
- Body Dia-Workpiece Side (in): 0.748
- Body Dia-Workpiece Side (mm): 19
- Gage Length (in): 8.5
- Gage Length (mm): 215.9
- Gage Length-Face Contact (in): 8.37
- Gage Length-Face Contact (mm): 212.7
- Lock Nut Diameter (in): 0.75
- Lock Nut Diameter (mm): 19.1
- Overall Length (in): 11.18
- Overall Length (mm): 284
- Material: 8620 Steel
- Taper: CAT40
- Overall Diameter (in): 2.5
- Overall Diameter (mm): 63.5
- Unit of Tool: Metric or Inch
- Type: V-Flange Collet Chuck
- Style: Single Ended
- Capacity Range (in): 0.019" - 0.28"
- Capacity Range (mm): 0.5 - 7.1mm
- Balanced to: 25,000 RPM at G2.5
Direct From Manufacturer:
A new product, shipped directly from the manufacturer.
Lead Time: 7 to 21 Days
