TELEMECANIQUE L100WTR2PF11 LIMIT SWITCH
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: L100WTR2PF11
IMS Product Code: 1845763
Packaging: Sold Individually
Description:

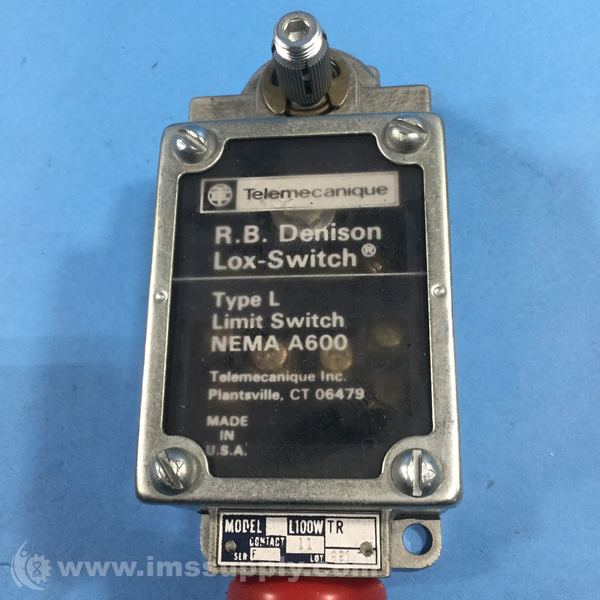

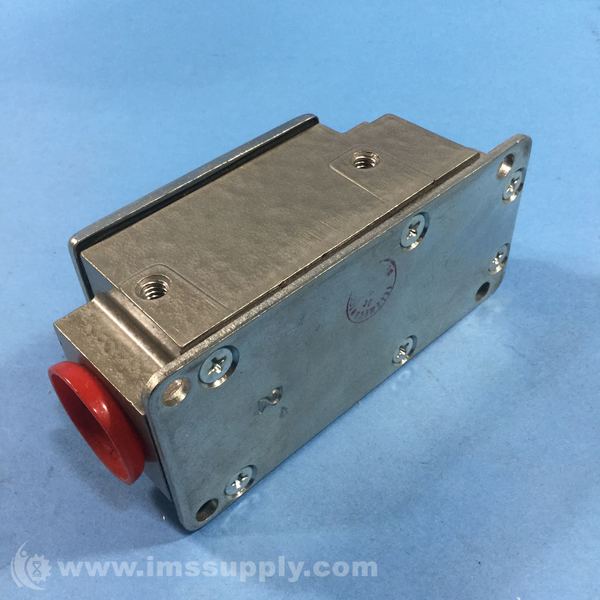

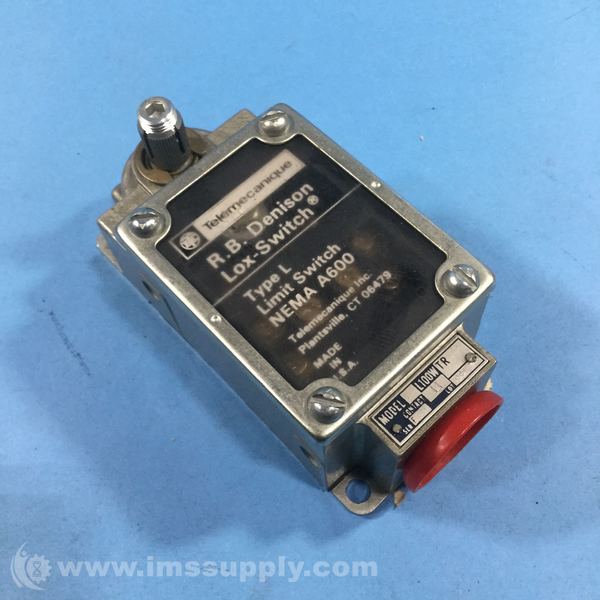

Telemecanique L100WTR2PF11 Limit Switch
Limit switch with rotary head and cast aluminium body, used for mill switch applications. It features screw-clamp terminals and has a NEMA rating designation of A600.
Specifications
- Product or component type: Limit switch
- Device short name: L100/L300
- Body material: Cast aluminium
- Head type: Rotary head
- Type of operator: Spring return without operating lever
- Switch actuation: CW and CCW from left or right
- Electrical connection: Screw-clamp terminals AWG 22...AWG 12
- Cable entry: 1 entry for 1/2" - 14 NPT conforming to ANSI B1.20.1
- Contacts type and composition: 2 NC CW operation contacts: 1 NO + 1 NC, CCW operation contacts: 1 NC + 1 NO
- NEMA degree of protection: NEMA 1, NEMA 2, NEMA 4, NEMA 12, NEMA 13 conforming to Nema type 250
- IP degree of protection: IP67 conforming to IEC 60529

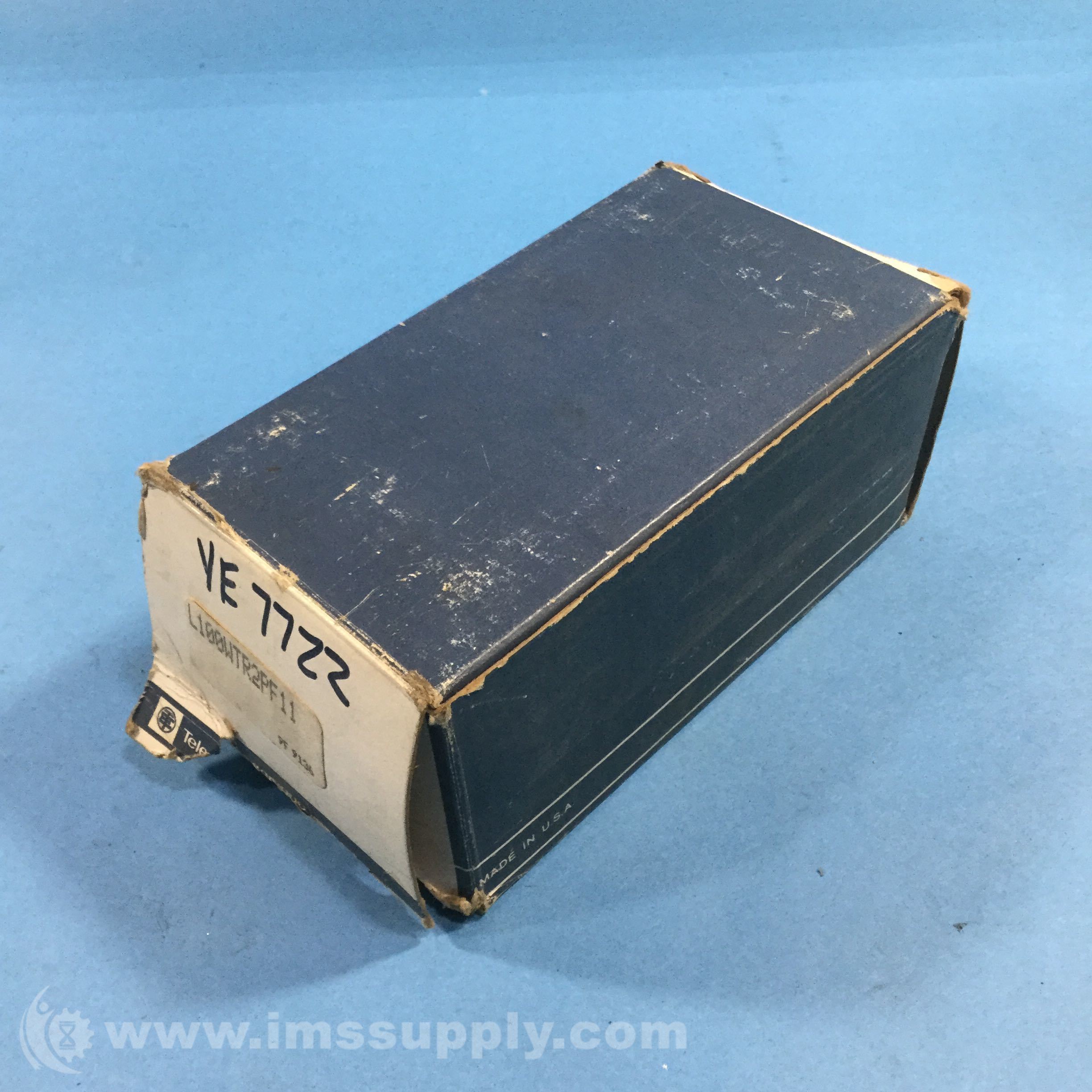

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 1 hours and 23 minutes.
