TELEMECANIQUE XCKMR54D1 LIMIT SWITCH
Quick Overview
Manufactured By: TELEMECANIQUE
Manufacturer Part Number: XCKMR54D1
IMS Product Code: 2124690
Packaging: Sold Individually
Description:

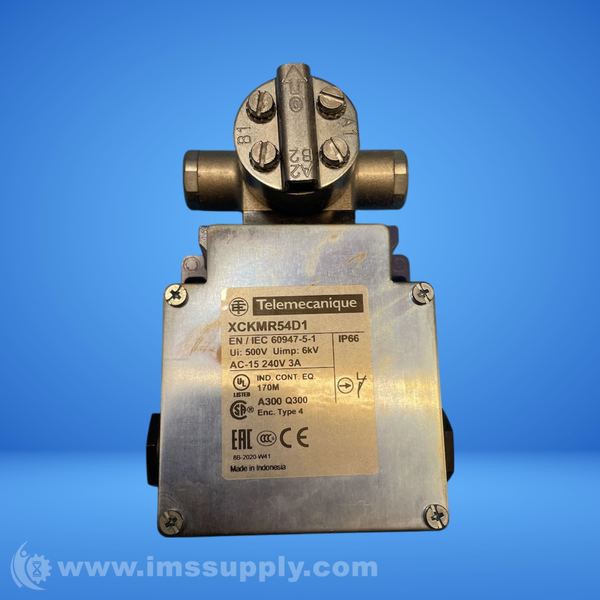

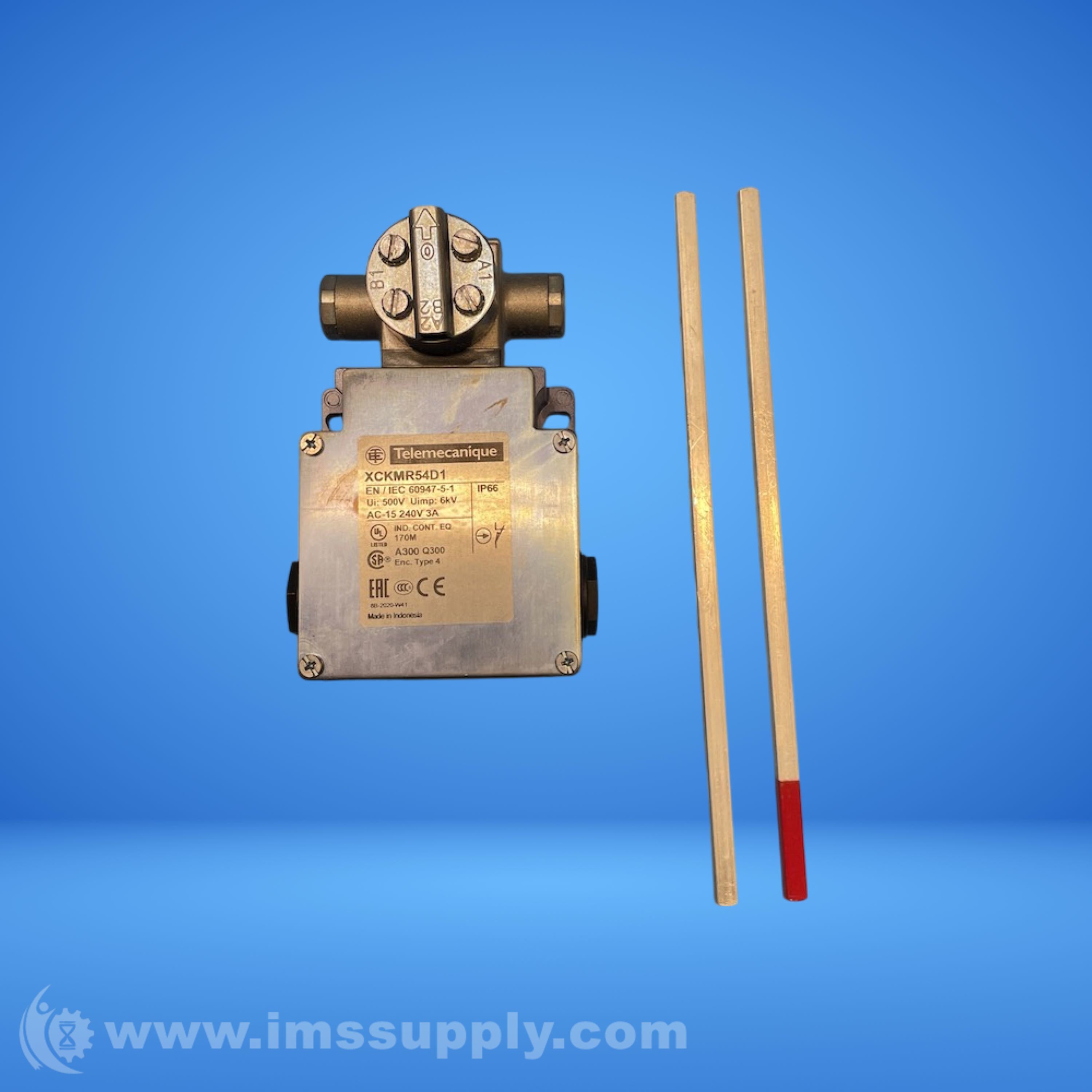

Telemecanique XCKMR54D1 Limit Switch
Limit switch with rotary head and stay put crossed rods lever metal square rod 6 mm, L = 200 mm, 2x(2 NC), slow-break contacts, Pg13.5 cable entry, IP66 protection.
Specifications
- range_of_product: OsiSense XC
- series_name: Special format
- product_or_component_type: Limit switch
- body_type: Fixed
- head_type: Rotary head
- material: Metal
- body_material: Zamak
- head_material: Zamak
- fixing_mode: By the body
- movement_of_operating_head: Rotary

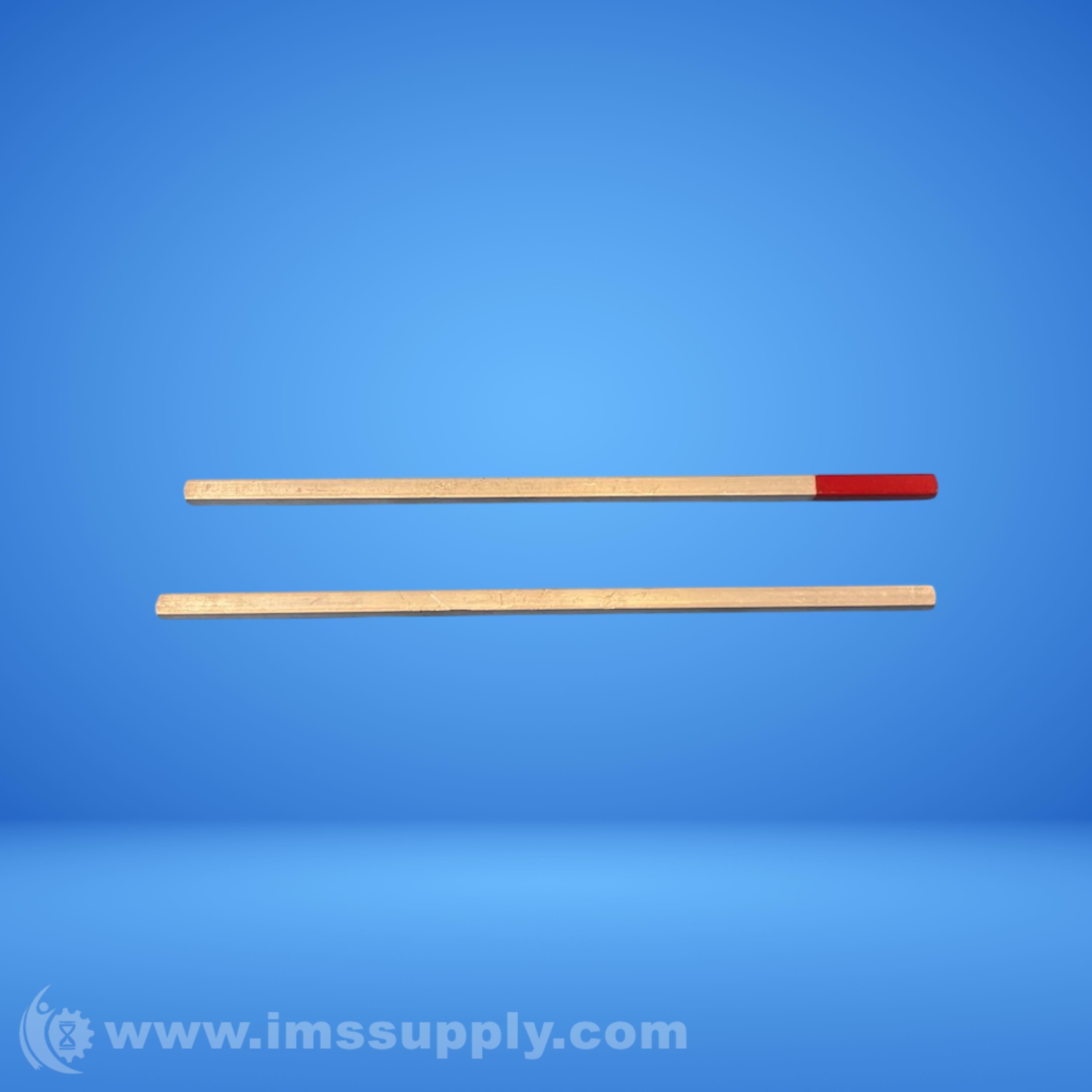

- type_of_operator: Stay put crossed rods lever metal square rod 6 mm, L = 200 mm
- type_of_approach: Lateral approach, 2 directions
- cable_entry: 3 entries tapped for Pg 13.5 cable gland, cable outer diameter: 9-12 mm
- contacts_type_and_composition: 2 x (2 NC)
- contact_operation: Slow-break, staggered
- switch_actuation: By any moving part
- electrical_connection: Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²
- positive_opening: With
- ui: 500V
- uimp: 6kV
- ac: 15 240V
- current: 3A
- ip_degree_of_protection: IP66
- ik_degree_of_protection: IK07
- electrical_shock_protection_class: Class I
- standards: CSA C22.2 No 14, UL 508, IEC 60947-5-1
- product_certifications: CSA, CCC, CE, UL
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
