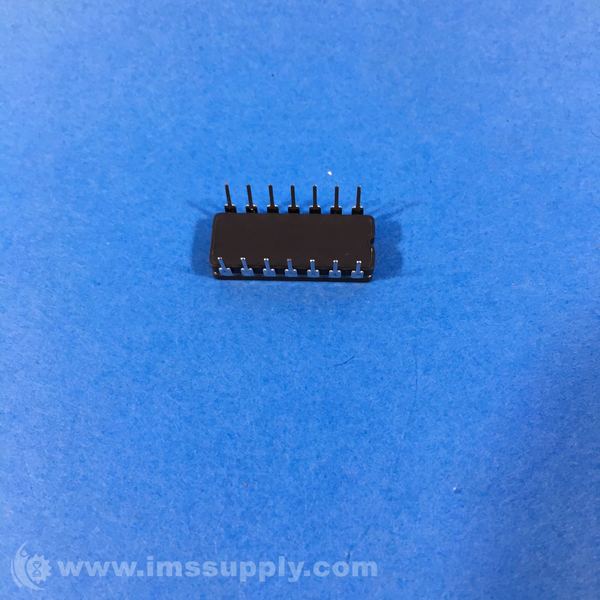

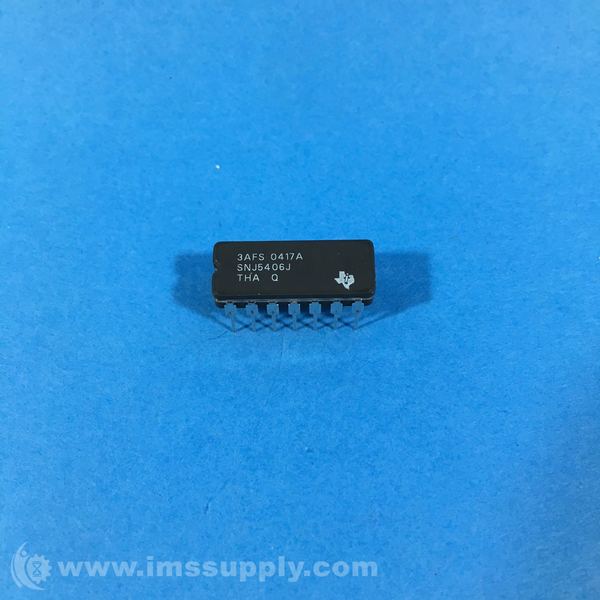

TEXAS INSTRUMENTS SNJ5406J HEX INVERTER BUFFER
Quick Overview
Manufactured By: TEXAS INSTRUMENTS
Manufacturer Part Number: SNJ5406J
IMS Product Code: 1807701
Packaging: Sold Individually
Description:
Texas Instruments SNJ5406J Hex Inverter Buffer
Hex inverter buffer/driver with open-collector high-voltage outputs, 14-Pin CDIP package, operating temperature range -55 to 125 degrees C.
Specifications
- Package: CDIP
- Pins: 14
- Operating temperature range: -55 to 125 degrees C
- Logic Function: Buffer
- Output Type: TTL
- Polarity: Inverting
- Mount: Through Hole
- Contact Plating: Lead, Tin
- High Level Output Current: -250 �A
- Low Level Output Current: 30 mA
- Max Operating Temperature: 125 degrees C
- Min Operating Temperature: -55 degrees C
- Max Supply Voltage: 5.5 V
- Min Supply Voltage: 4.5 V
- Operating Supply Voltage: 5 V
- Number of Elements: 6
- Propagation Delay: 23 ns
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
