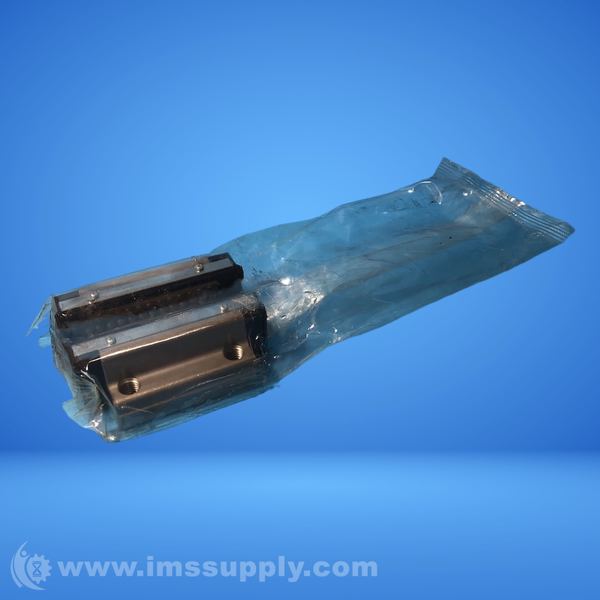

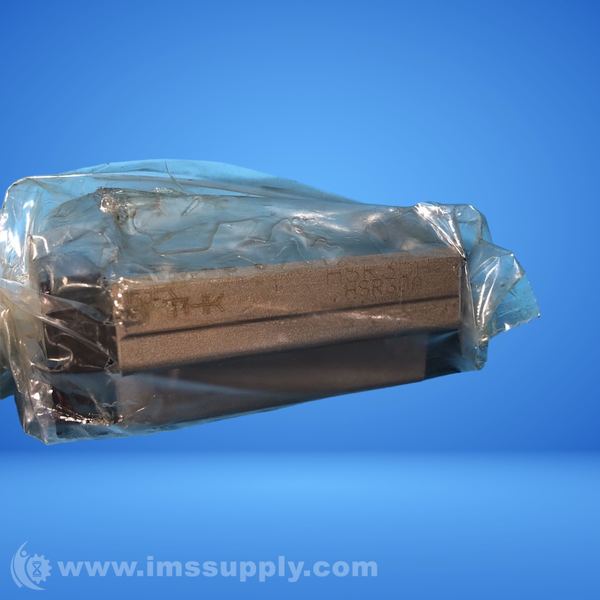

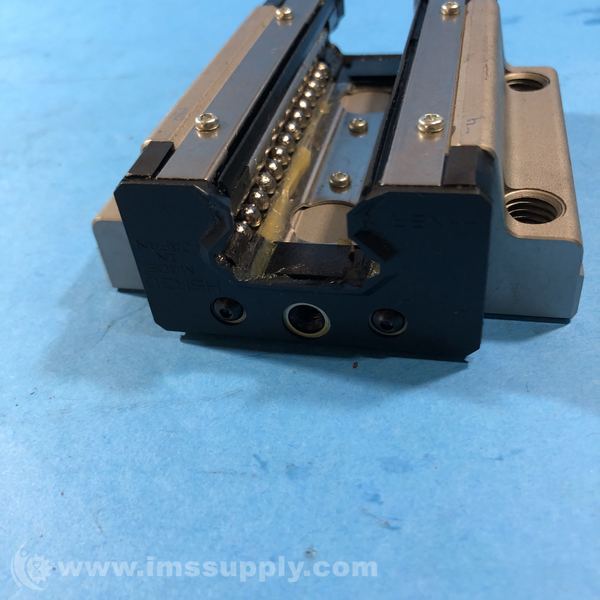

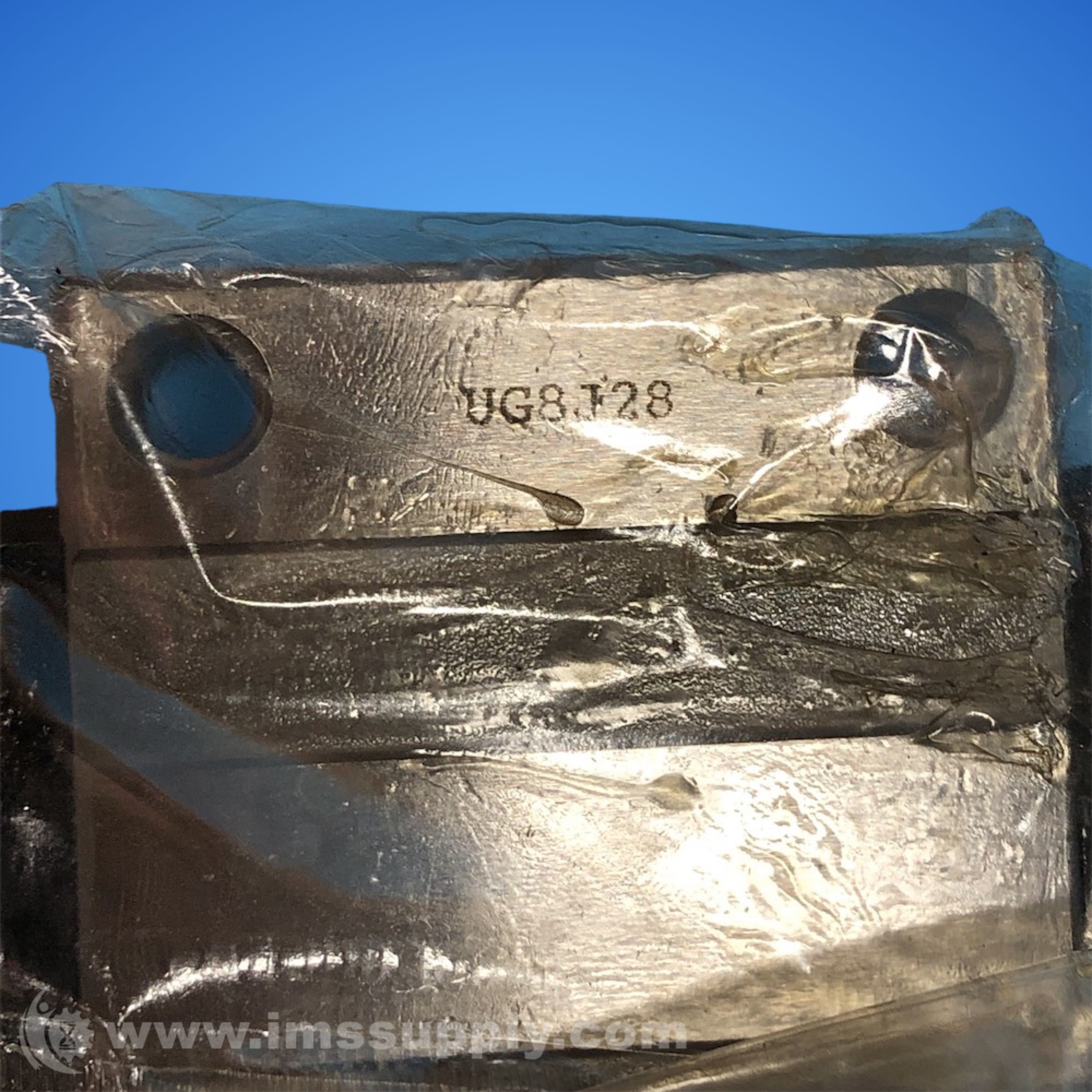

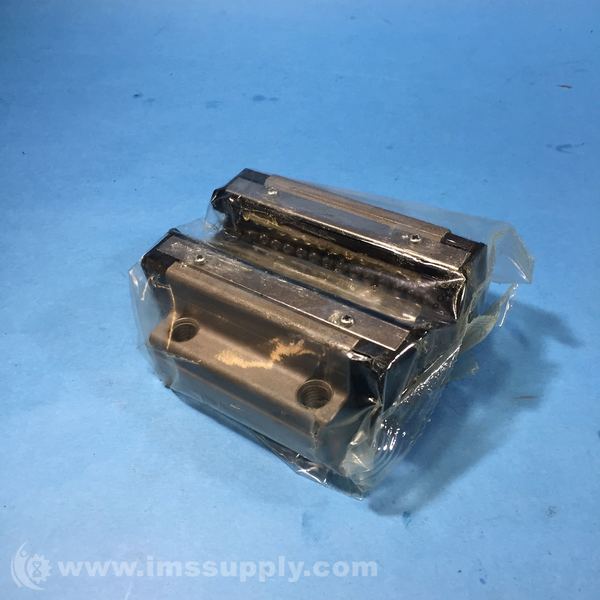

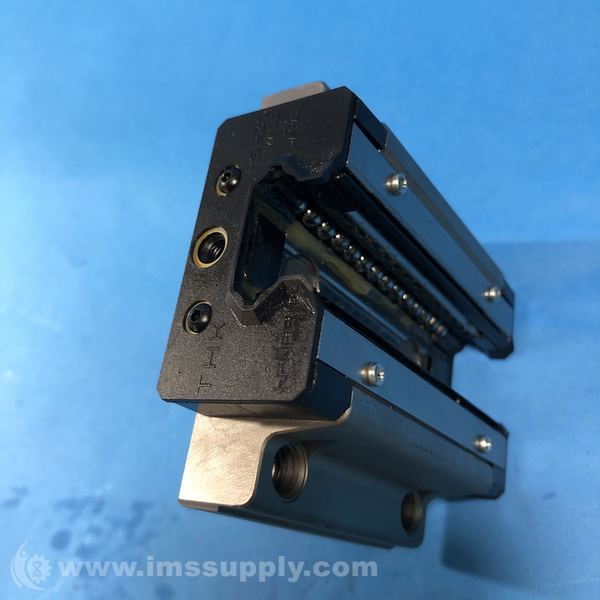

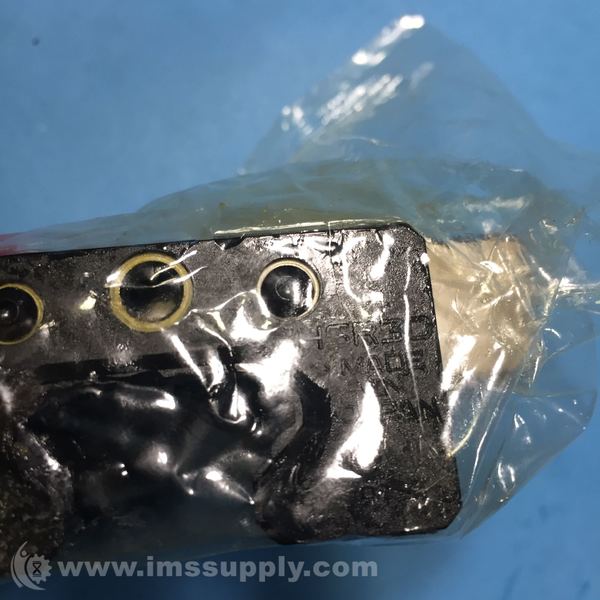

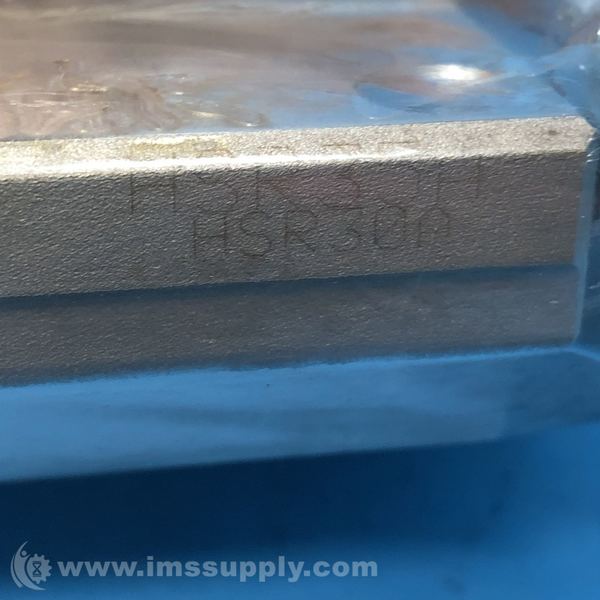

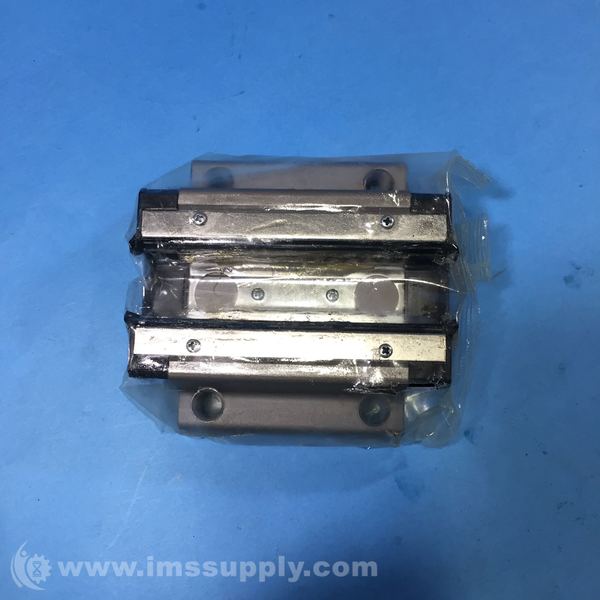

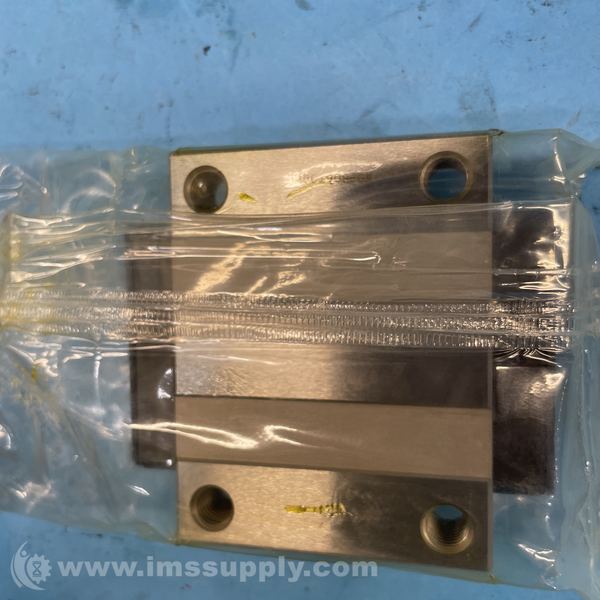

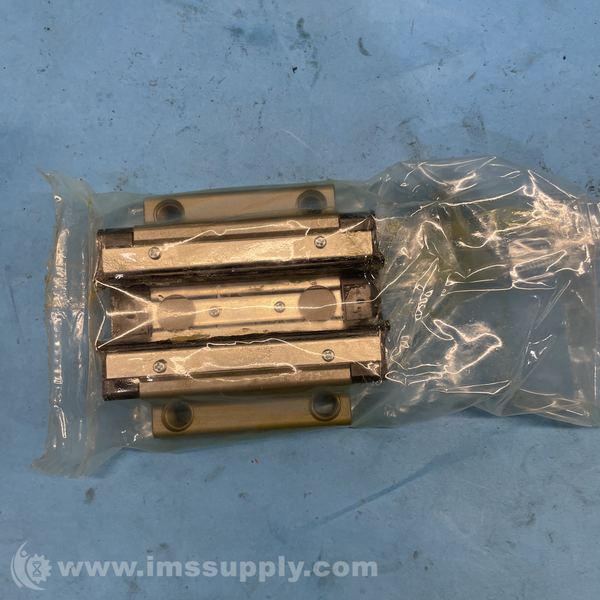

THK HSR30A LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR30A
IMS Product Code: 1862946
Packaging: Sold Individually
Description:
THK HSR30A Linear Motion Guide
Linear Motion Ball Guide
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount
- Block mounting direction: Yes
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows, LM Cover
- Seal Resistance Value (N): 7.80
- Seal types for seal resistance value: UU
- Dedicated cap for the LM rail mounting hole: C8
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: B-M6F
- Standard seal: UU, SS
- Whether it is possible to change to a high temperature type: Can be supported
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade°C): -15
- Minimum service temperature(Fahrenheit°F): 5
- Maximum service temperature(Centigrade°C): 80
- Maximum service temperature(Fahrenheit°F): 176
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- Rolling Element: Balls
- Block Type: A
- Overall(mm) Height M: 42
- Width W: 90
- Length L: 98
- Block(mm) B: 72
- C: 52
- T: 9
- Rail(mm) Pitch F: 80
- d1xd2xh: 9*14*12
- Basic load rating(Radial) Dynamic C (kN): 28
- Static C0 (kN): 46.8
- Block Weight(KG/EA): 1.1KG
- Rail weight(KG/m): 4.8KG
- Materials: Bearing steel
- Outer dimensions: 90 mm
- Block dimensions: 98 mm
- Rail dimensions: 72 mm
- Height: 42
- Width: 90
- Length: 98
- Basic load rating Dynamic: 40.5 kN
- Basic load rating Static: 53.7 kN
- Type: HSR-A
- Model: HSR30
- Specification: Standard
- Origin: Japan
- S: M10
- L1: 70.4
- T1: 18
- K: 35
- N: 7
- E: 12
- Grease Nipple: B-M6F
- M: 7
- W1: 28
- W2: 31
- Pitch: 80
- d1×d2×h: 9×14×12
- C: 40.5
- Co: 53.7
- MA: 0.599
- MB: 3.1
- MC: 0.652
- Mass LM block: 1.1
- Mass LM rail: 4.8
- Weight: 1.1 kg
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 6 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
Missing small attachment piece it usually comes with.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Missing Box (Special):
Small attachment piece not included.
Availability: 2 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
