THK HSR30C1SS(GK) LINEAR GUIDE BLOCK
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR30C1SS(GK) BLOCK
IMS Product Code: 2106545
Packaging: Sold Individually
Description:

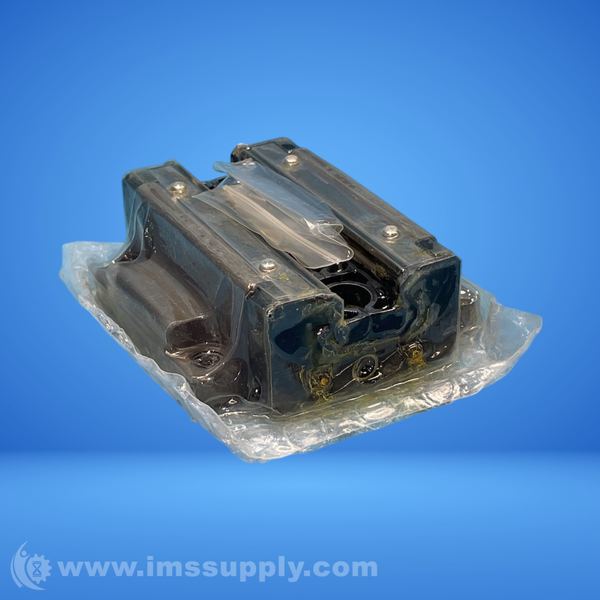

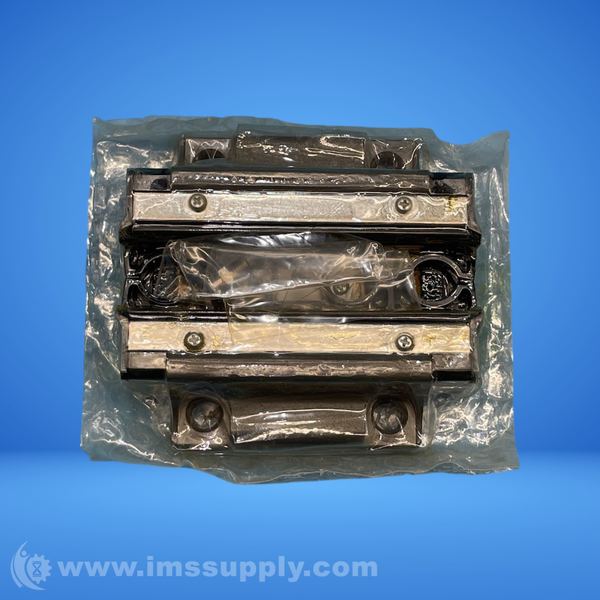

THK HSR30C1SS(GK) Linear Guide Block
Linear guide block interchangeable standard grade HSR series carbon steel radial clearance = C1 light preload flanged with tapped and thru holes
Specifications
- Accuracy Class: Normal Grade
- Bearing Material: Carbon Steel
- Block Type: Standard Block
- Dynamic Load Capacity: 40.5 kN
- Grease Type: THK AFB-LF Grease
- Load Capacity: 53.7 kN
- Measurement Standard: Metric
- Mount Hole Screw Size: M8
- Nominal Rail Size: 28 mm
- Overall Height: 42 mm
- Overall Length: 98 mm
- Overall Width: 90 mm
- Preload: Normal
- Seal Type: SS (end seal + side seal + inner seal)
- Series: HSR-C
- Static Load Capacity: 53.7 kN
- Weight: 1.1 kg
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 1 In Stock
Ships today if ordered in the next 50 minutes.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 50 minutes.
