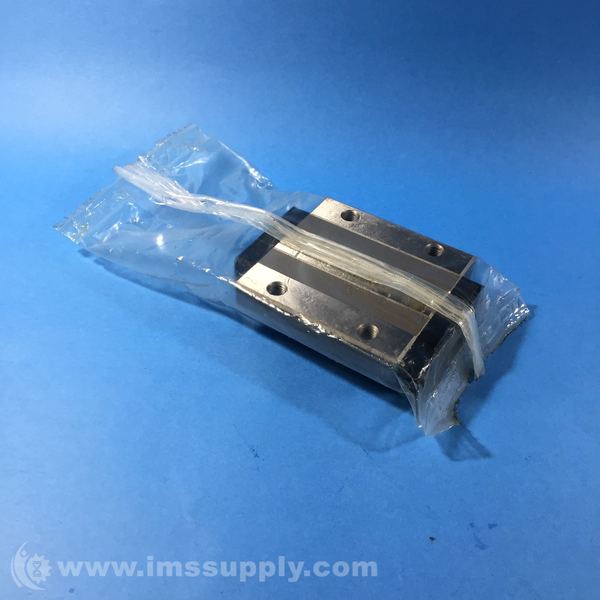

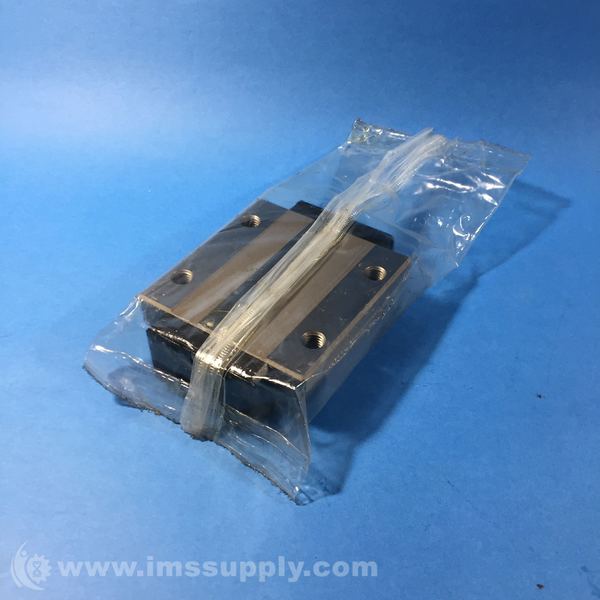

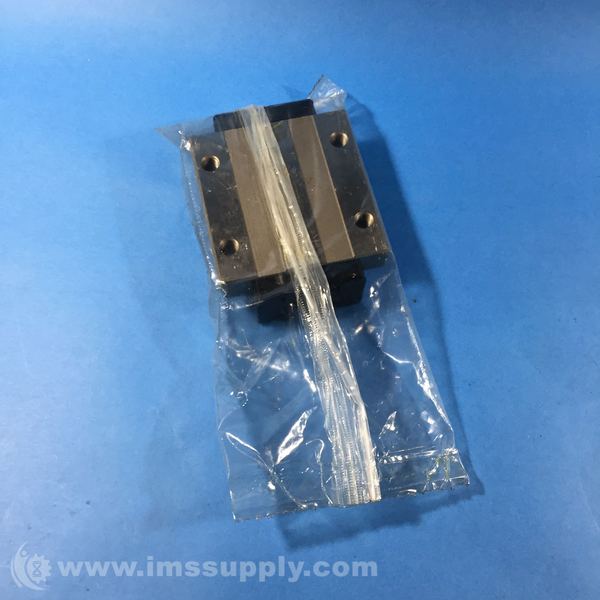

THK HSR30LA LINEAR GUIDE
Quick Overview

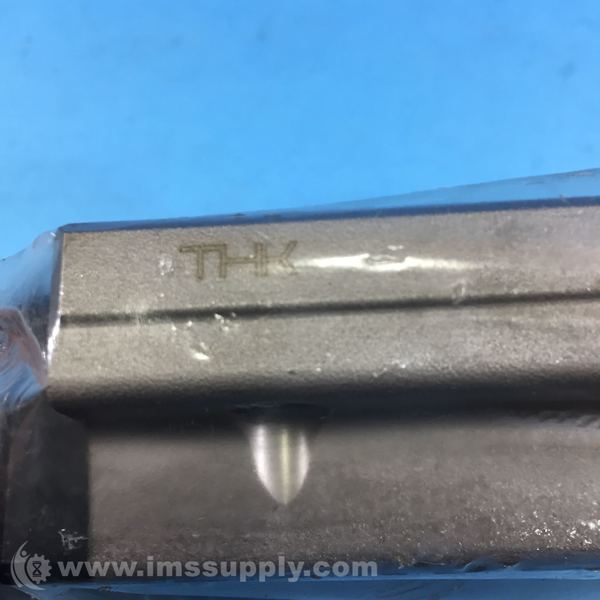

Manufactured By: THK

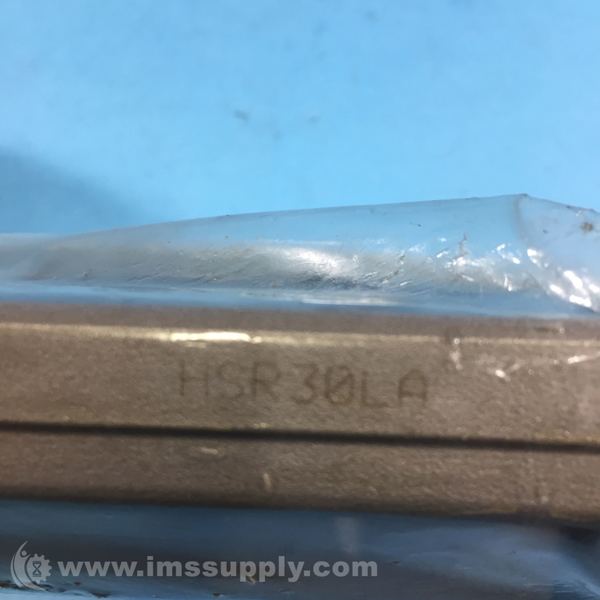

Manufacturer Part Number: HSR30LA
IMS Product Code: 1813211
Packaging: Sold Individually
Description:
THK HSR30LA Linear Guide
Linear guide slider with 4-way equal load type and top surface mount loading method.
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount
- Block mounting direction: Yes
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows, LM Cover
- Seal Resistance Value (N): 7.80
- Seal types for seal resistance value: UU
- Dedicated cap for the LM rail mounting hole: C8
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: B-M6F
- Standard seal: UU, SS
- Whether it is possible to change to a high temperature type: Can be supported
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade°C): -15
- Minimum service temperature(Fahrenheit°F): 5
- Maximum service temperature(Centigrade°C): 80
- Maximum service temperature(Fahrenheit°F): 176
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- Outer dimensions: 42
- Block dimensions: 90
- Rail dimensions: 120.6
- Height: 42
- M: M10
- Width: 90
- Length: 120.6
- B: 72
- C: 48.9 kN
- S: M10
- Pitch: 80
- d1×d2×h: 9×14×12
- C: 48.9 kN
- Co: 70.2 kN
- MA: 0.995 kN-m
- MB: 4.89 kN-m
- MC: 0.995 kN-m
- Mass LM block: 1.3 kg
- Mass LM rail: 4.8 kg/m
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 7 hours and 45 minutes.
