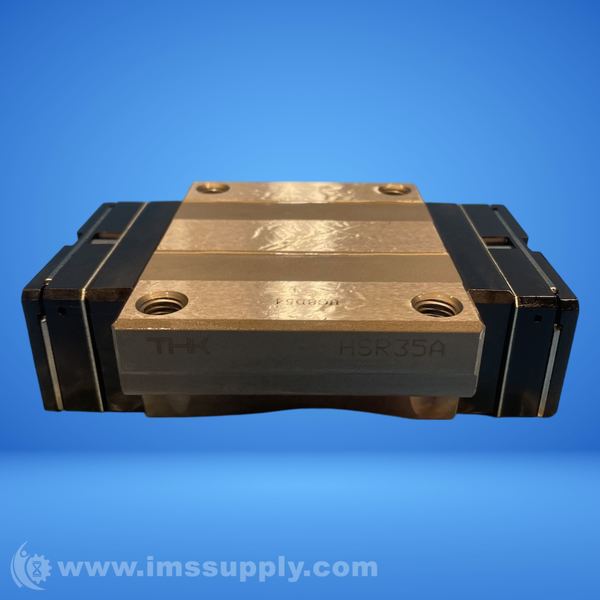

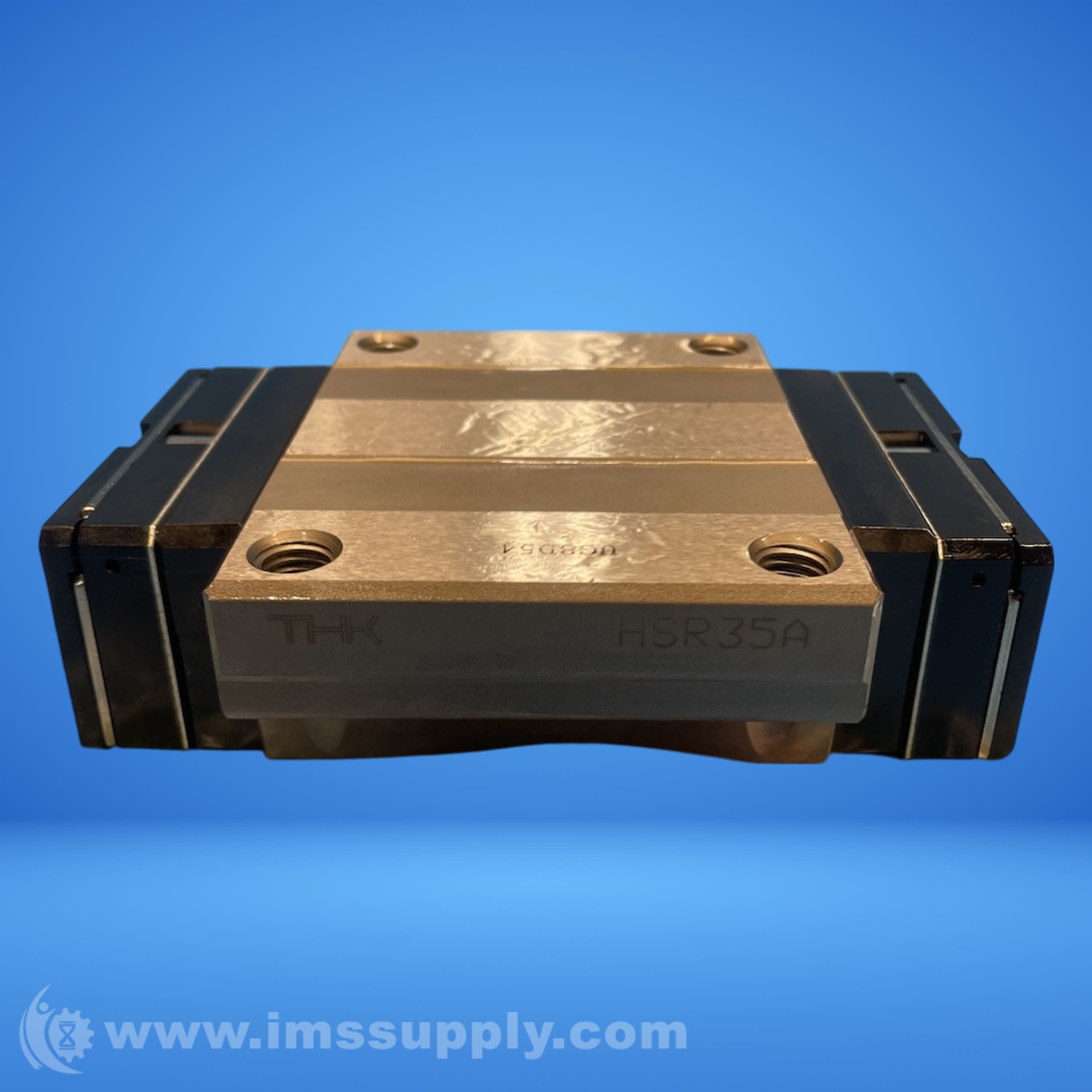

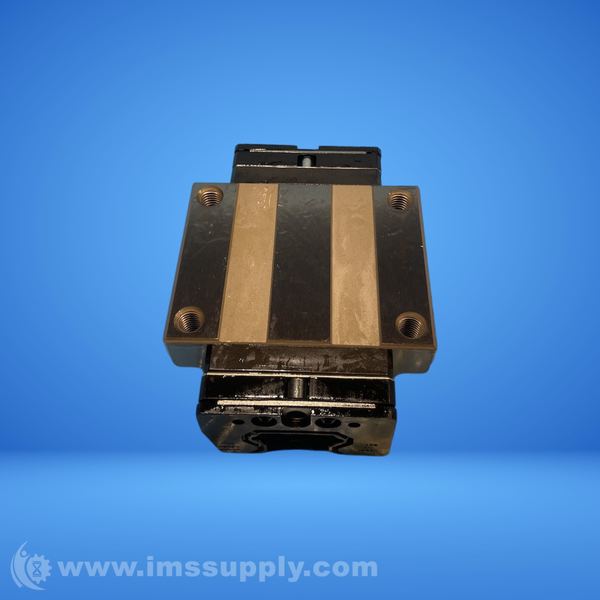

THK HSR35A LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR35A
IMS Product Code: 2122030
Packaging: Sold Individually
Description:
THK HSR35A Linear Motion Guide
Linear Motion Guide
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount
- Block mounting direction: Yes
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows, LM Cover
- Seal Resistance Value (N): 11.80
- Seal types for seal resistance value: UU
- Dedicated cap for the LM rail mounting hole: C8
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: B-M6F
- Standard seal: UU, SS
- Whether it is possible to change to a high temperature type: Can be supported
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade°C): -15
- Maximum service temperature(Centigrade°C): 80
- Long-term Maintenance-free Operation: Available
- Rail joint: Yes
- Rolling Element: Balls
- Block Type: A
- Overall(mm) Height M: 48
- Width W: 100
- Length L: 109.4
- Block(mm) B: 82
- C: 62
- T: 12
- Rail(mm) Pitch F: 80
- d1xd2xh: 9*14*12
- Basic load rating(Radial) Dynamic C (kN): 37.3
- Static C0 (kN): 61.1
- Block Weight(KG/EA): 1.6KG
- Rail weight(KG/m): 6.6KG
- Materials: Bearing steel

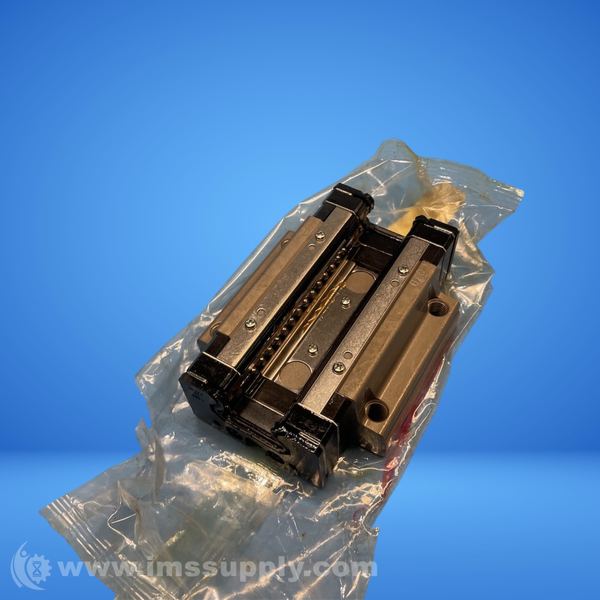

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 5 hours and 35 minutes.
