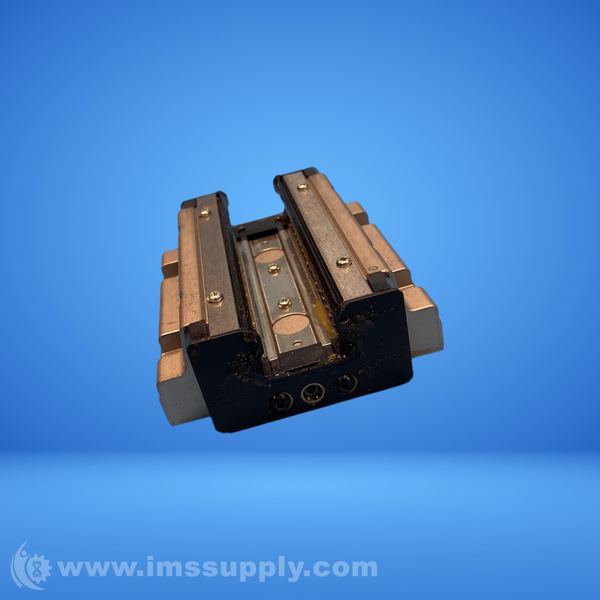

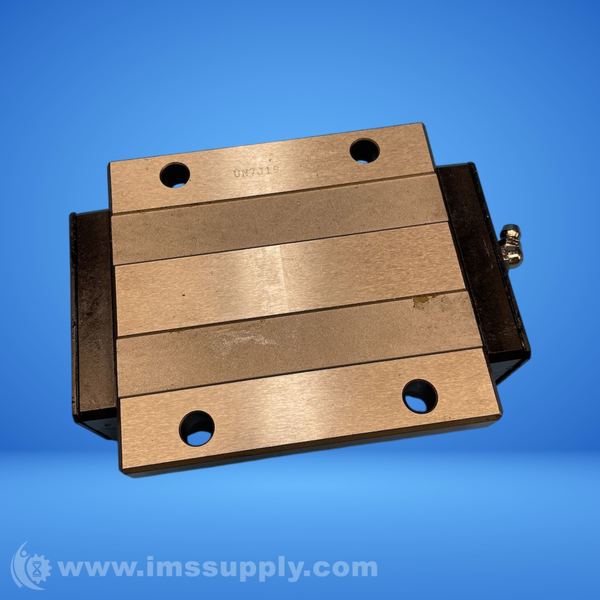

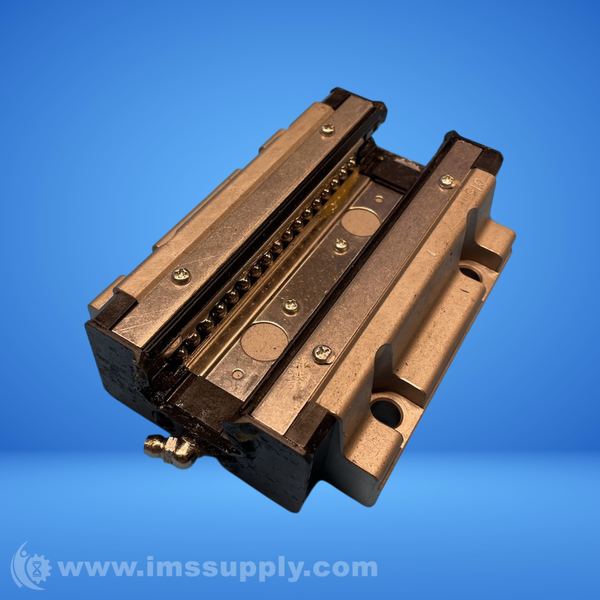

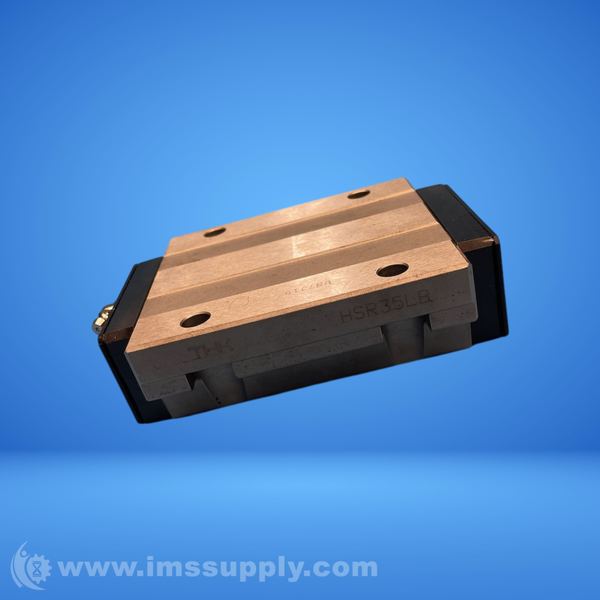

THK HSR35LB LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: HSR35LB
IMS Product Code: 2126848
Packaging: Sold Individually
Description:
THK HSR35LB Linear Motion Guide
Linear Motion Ball Guide
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Bottom surface mount
- Block mounting direction: Yes
- Ball (roller) retainer: None
- LaCS: Yes
- Dust cover type: Bellows, LM Cover
- Seal Resistance Value (N): 11.80
- Seal types for seal resistance value: UU
- Dedicated cap for the LM rail mounting hole: C8
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: B-M6F
- Standard seal: UU, SS
- Whether it is possible to change to a high temperature type: Can be supported
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: Yes
- Minimum service temperature(Centigrade°C): -15
- Maximum service temperature(Centigrade°C): 80
- Long-term Maintenance-free Operation: Available
- Rail joint: Yes
- Materials: Bearing steel
- Outer dimensions: 48
- Block dimensions: 100
- Rail dimensions: 134.8
- Basic load rating Dynamic: 65 kN
- Basic load rating Static: 91.7 kN
- Height M: 82
- Width W: 62
- Length L: 9
- B: 80
- C: 9x14x12
- Height: 48
- Width: 100
- Length: 134.8
- B: 82
- C: 62
- H: 9
- L1: 105.8
- t: 21
- T: 12
- T1: 13
- K: 40.5
- N: 8
- E: 12
- Grease Nipple: B-M6F
- M: 7.5
- W: 34
- W1: 33
- Height M1: 29
- Pitch F: 80
- d1×d2×h: 9×14×12
- Length Max: 3000 (2520)
- Basic load rating C: 65
- Co: 91.7
- Static permissible moment MA: 1.49
- MB: 7.13
- MC: 1.49
- Mass 1 block: 2
- Double blocks: 6.6
- LM rail: kg/m
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships today if ordered in the next 54 minutes.
New - Missing Box (Special):
Part has Unknown rail attached.
Availability: 1 In Stock
Ships today if ordered in the next 54 minutes.
