THK PHS16 ROD END BEARING
Quick Overview
Manufactured By: THK
Manufacturer Part Number: PHS16
IMS Product Code: 2122516
Packaging: Sold Individually
Description:

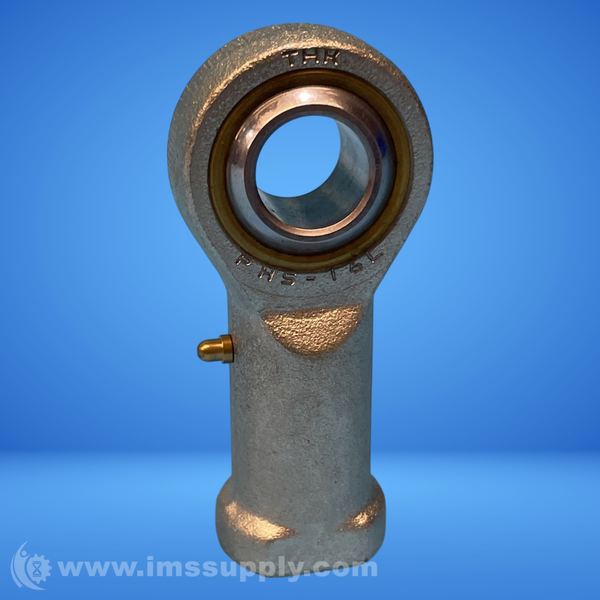

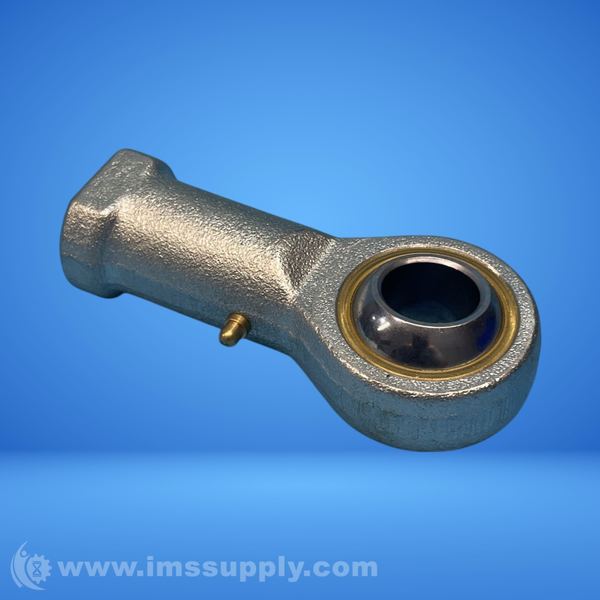

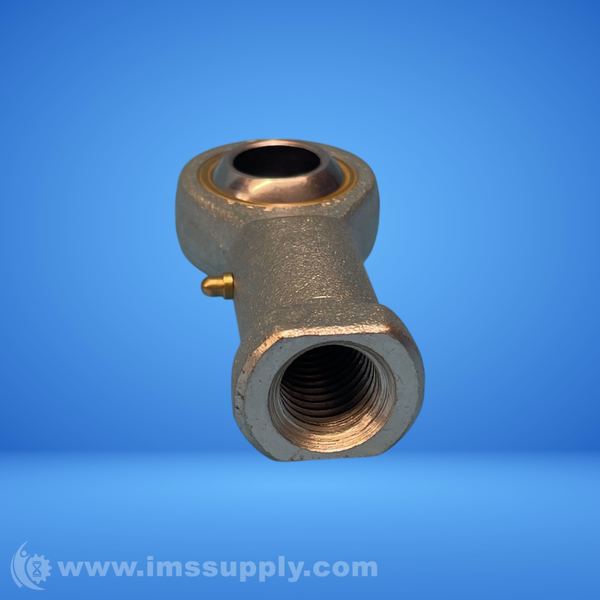

THK PHS16 Rod End Bearing
Rod end bearing with spherical plain bearing, steel-on-bronze sliding contact, right-hand female thread, M16x2.
Specifications
- type: Rod End Bearing
- inner ring material: Iron-based
- holder material: Iron-based
- bushing material: Special copper alloy
- standard lubrication method: Grease Lubrication
- standard grease nipples: PB107
- minimum service temperature: -15 degrees C
- maximum service temperature: 80 degrees C
- outer dimensions: 38 mm
- thread: M16x2
- mass: 210 g
- length: 83 mm
- diameter: 38 mm
- width: 21 mm
- permissible tilt angles: 8 degrees
- radial Cs: 25000 N
- contact material: Steel on Bronze
- seal: No Seal
