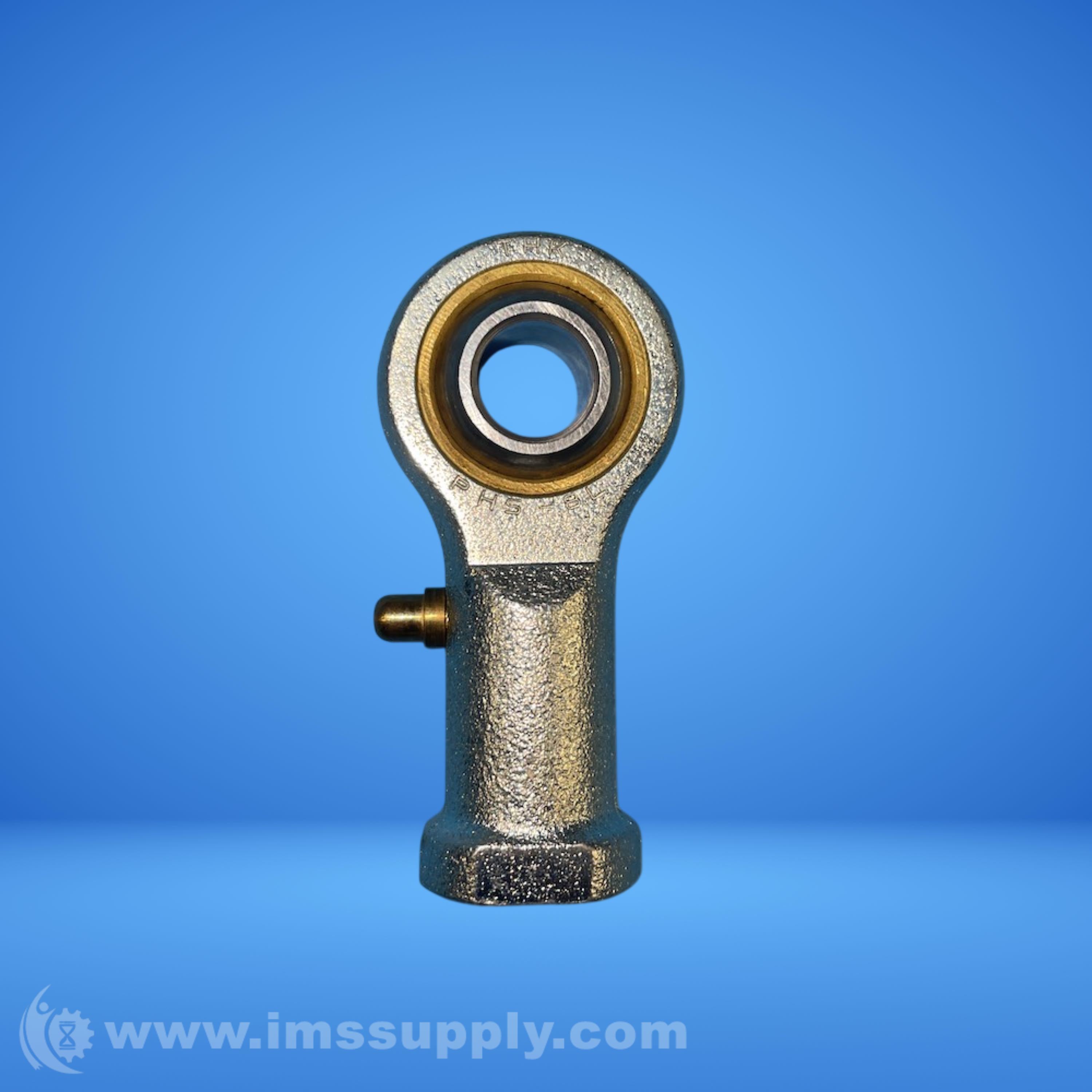

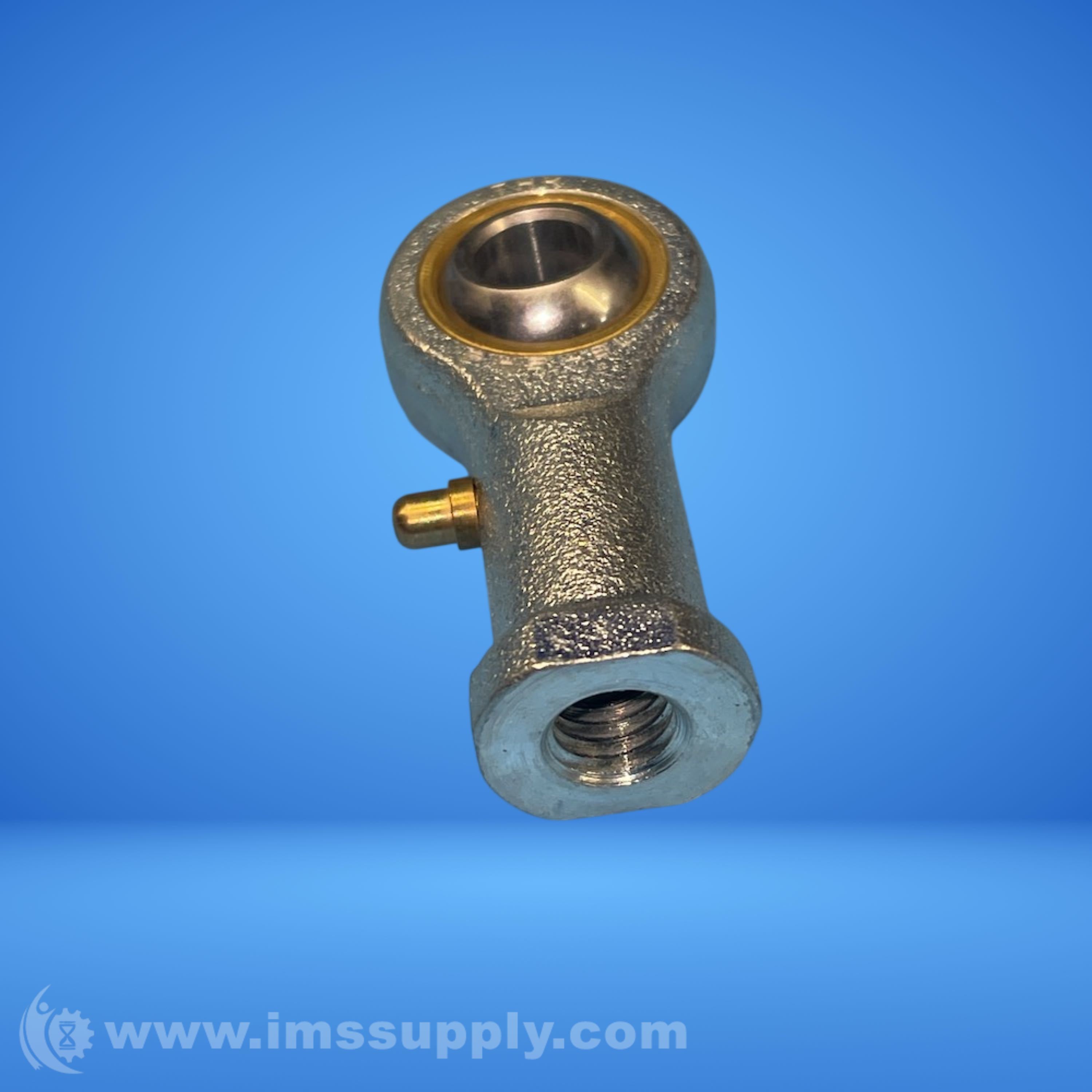

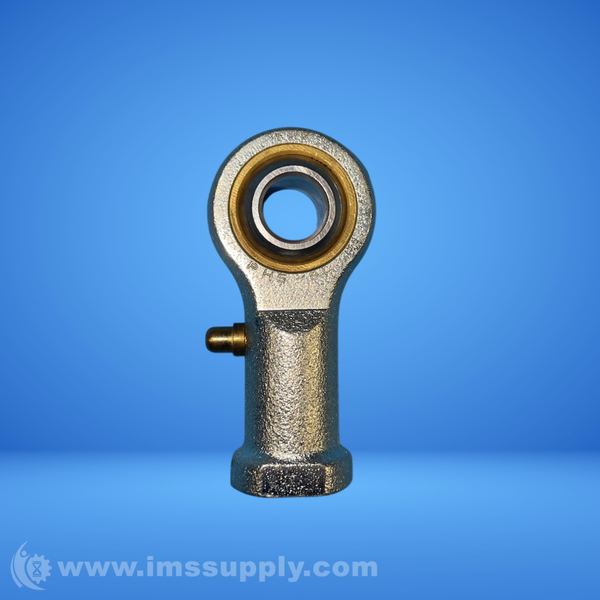

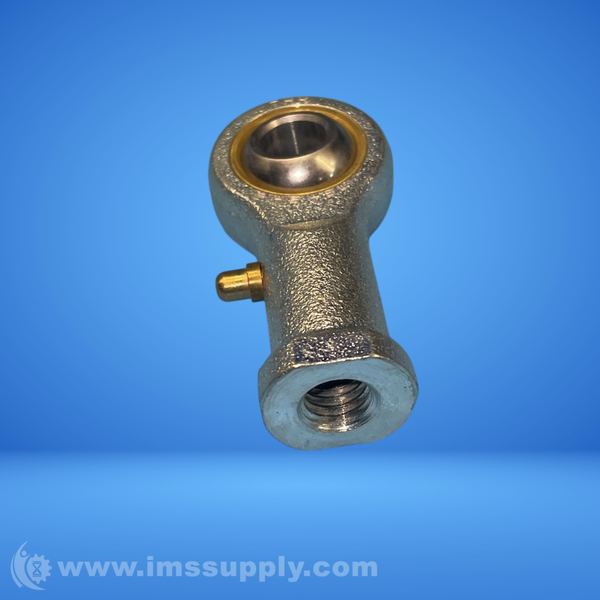

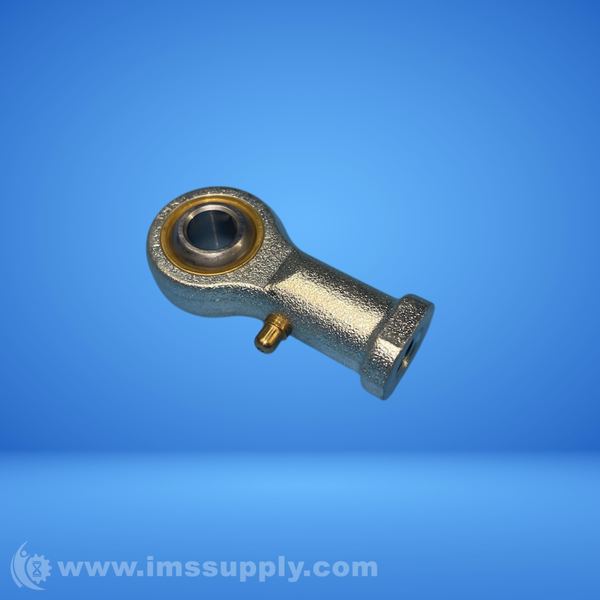

THK PHS8 ROD END BEARING
Quick Overview
Manufactured By: THK
Manufacturer Part Number: PHS8
IMS Product Code: 2155143
Packaging: Sold Individually
Description:
THK PHS8 Rod End Bearing
Rod end bearing with female thread and right-hand screw.
Specifications
- Body Material: Steel S35C (Chromate Treatment)
- Connection Screw Shape: Female Thread
- Connection Screw Direction: Right Screw
- The Material of a Ball: 52100 Steel
- Liner Material: Special Copper Alloy
- Operating Temperature Range: -20 to 80 degrees C
- Allowable Incline Angle: 8 degrees
- Thread Size: M8 x 1.25
- Inner Ring Diameter: 8 mm
- Outer Dimensions Diameter: 22 mm
- Outer Dimensions Length: 47 mm
- Weight: 43 g
- Permissible Tilt Angles: 8, 14, 25 degrees
- Applied Static Load: 9800 N
