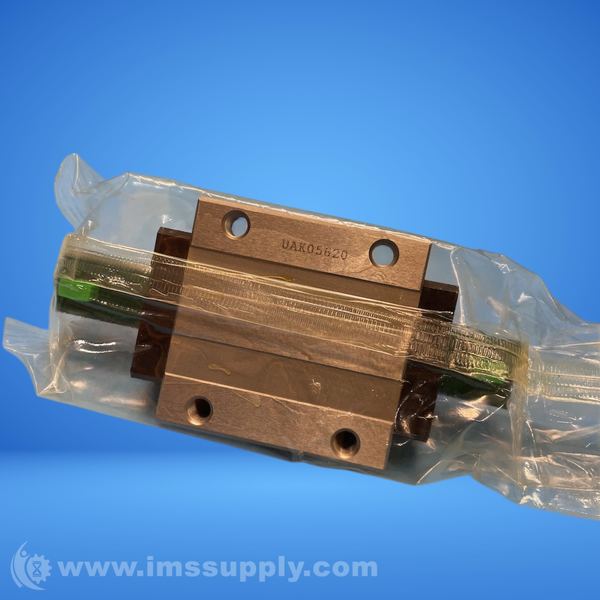

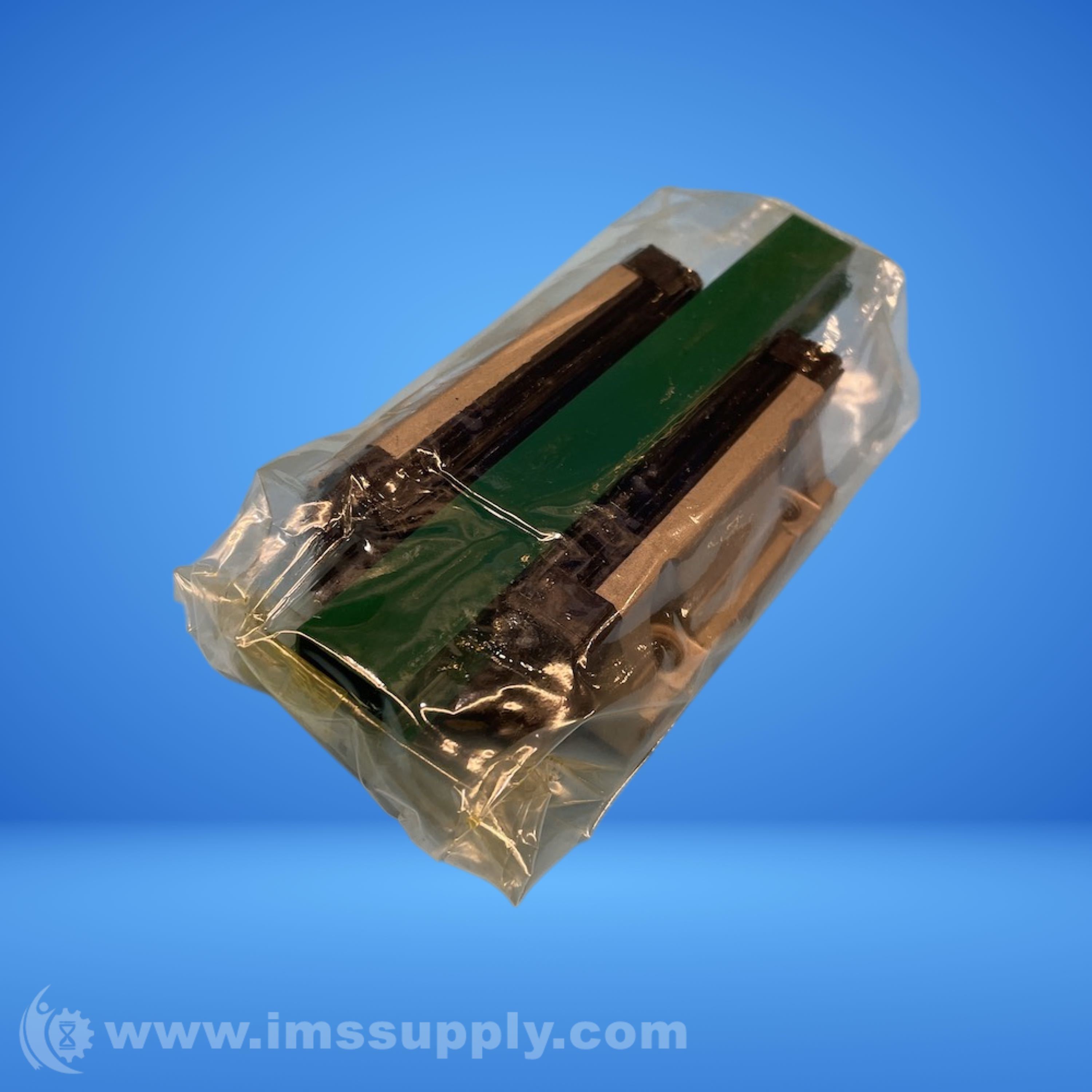

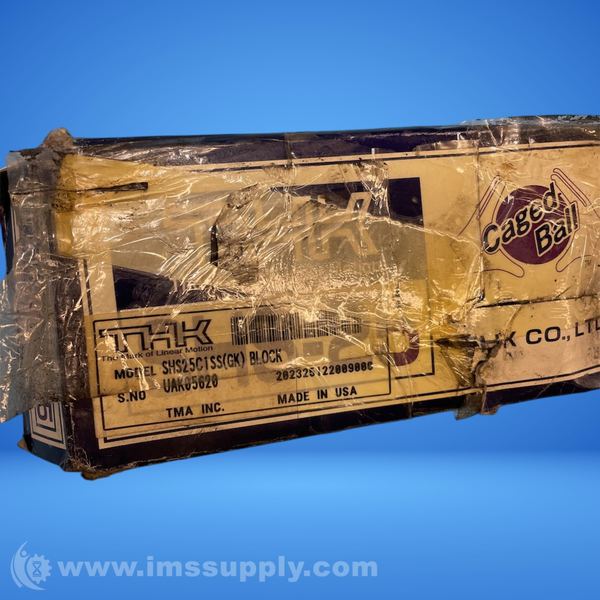

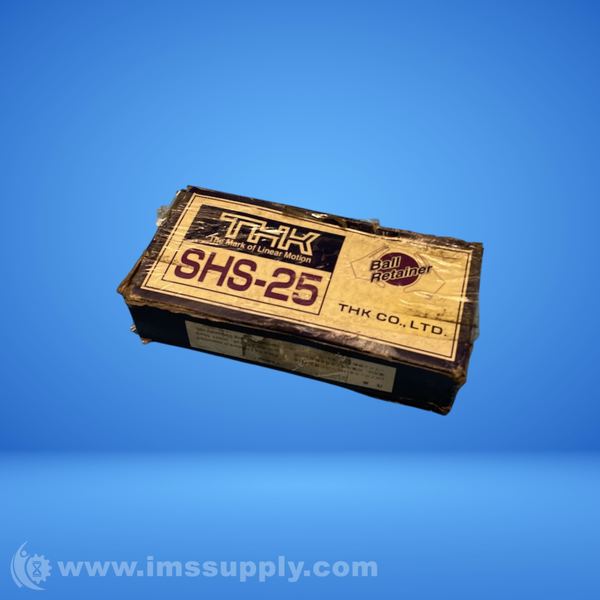

THK SHS25C1SS(GK) LINEAR GUIDE BLOCK
Quick Overview
Manufactured By: THK
Manufacturer Part Number: SHS25C1SS(GK)
IMS Product Code: 2141943
Packaging: Sold Individually
Description:
THK SHS25C1SS(GK) Linear Guide Block
Global Standard Interchangeable Linear Caged Ball Carriage for Profile Rail, SHS-C Series, Flanged Block Mounted from Top or Bottom, 23mm Rail, 70mm Wide x 92mm Long
Specifications
- Series: SHS-C
- Block Type: Standard Block
- Nominal Rail Size: 23 mm
- Static Load Capacity: 52.4 kN
- Dynamic Load Capacity: 31.7 kN
- Overall Height: 36 mm
- Overall Length: 92 mm
- Overall Width: 70 mm
- Seal Type: SS (end seal + side seal + inner seal)
- Accuracy Class: Normal Grade
- Preload: Normal
- Bearing Material: Carbon Steel
- Weight: 0.72 kg
- Measurement Standard: Metric
- Lubrication: THK AFB-LF Grease
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 4 In Stock
Ships today if ordered in the next 11 hours and 43 minutes.
