THK SHS30C LINEAR MOTION GUIDE
Quick Overview
Manufactured By: THK
Manufacturer Part Number: SHS30C
IMS Product Code: 1872760
Packaging: Sold Individually
Description:

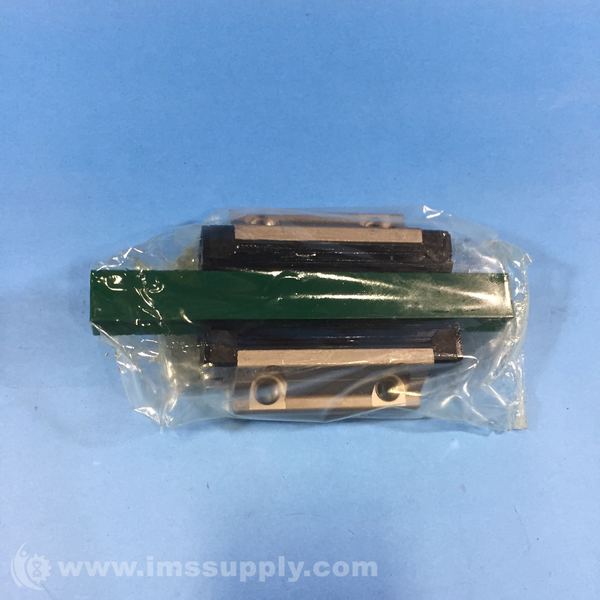

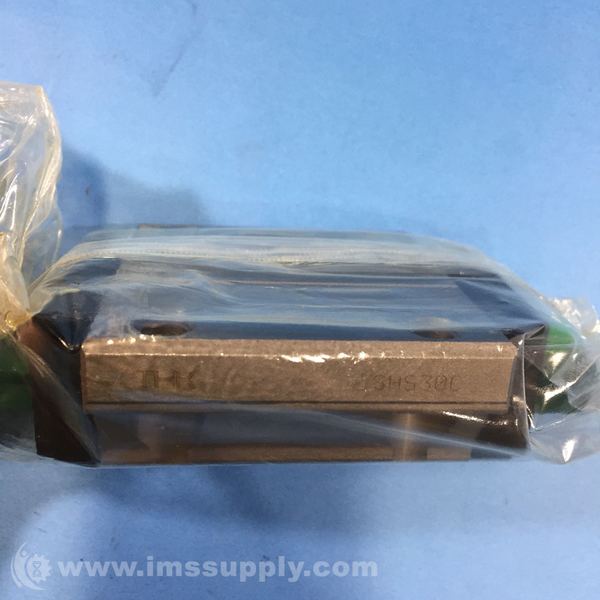

THK SHS30C Linear Motion Guide
Linear Motion Guide
Specifications
- Type of guide: 4-way Equal Load Type
- Loading method: Top surface mount, bottom surface mount
- Block mounting direction: None
- Ball (roller) retainer: Yes
- LaCS: Yes
- Dust cover type: Bellows
- Seal Resistance Value (N): 17.00
- Seal types for seal resistance value: SS
- Dedicated cap for the LM rail mounting hole: Yes
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Grease brand: AFA, AFB-LF, AFC, AFE, AFF, AFG, Other, Antirust oil only
- Nipple, plumbing fixture type: A-M6F, B-M6F, C-M6F, LF-A, LF-B, SF-A, SF-B
- Preload grade: Normal (no symbol), light preload (C1), medium preload (C0)
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard seal: UU, SS
- Block surface treatment: AP-CF, AP-C, AP-HC, other
- Rail surface treatment: AP-CF, AP-C, AP-HC, other
- Rail mounting method: Bolt fixed
- Minimum service temperature(Centigrade°C): -15
- Minimum service temperature(Fahrenheit°F): 5
- Maximum service temperature(Centigrade°C): 80
- Maximum service temperature(Fahrenheit°F): 176
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- Materials: Bearing steel
- Dimensions: 42
- Height M: 72
- Width W: 52
- Length L: 106
- B: 90
- C: 8.5
- S: 80
- H: 9x14x12
- Pitch F: Dynamic C (kN)
- 44.8: 66.6
- Material: Chrome steel
- Weight (kg): 1
- Place of origin: Japan

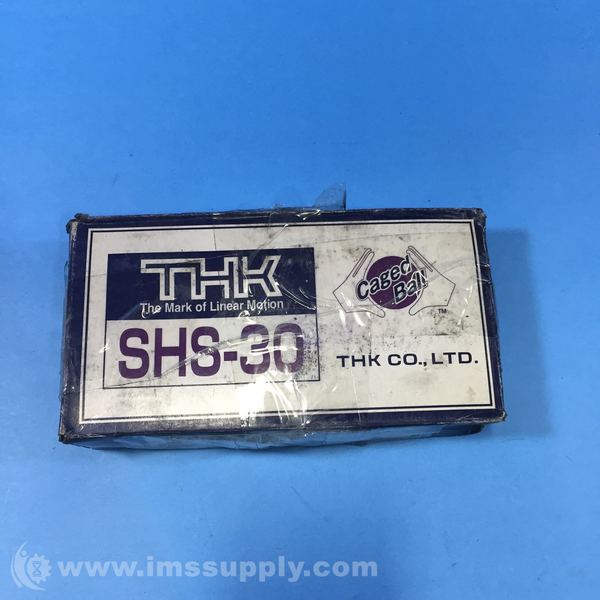

New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 3 In Stock
