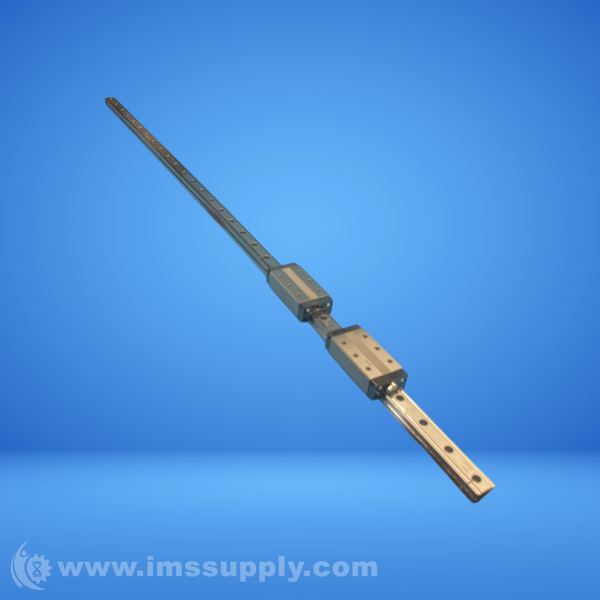

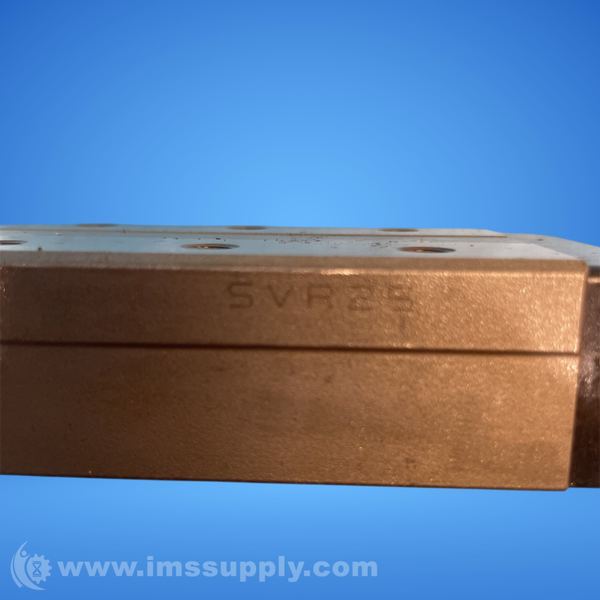

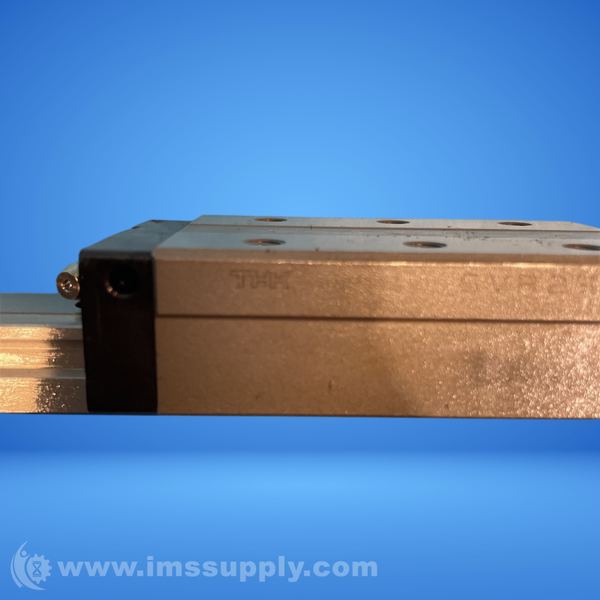

THK SVR25 LINEAR GUIDE BLOCK
Quick Overview
Manufactured By: THK
Manufacturer Part Number: SVR25
IMS Product Code: 2144100
Packaging: Sold Individually
Description:
THK SVR25 Linear Guide Block
Linear guide block with high rigidity and load-bearing capacity, featuring a caged-ball design and various options for dust control.
Specifications
- Type of guide: Radial type
- Loading method: Top surface mount
- Block mounting direction: None
- Ball (roller) retainer: Yes
- LaCS: Yes
- Dust cover type: Bellows
- Seal Resistance Value (N): 10
- Seal types for seal resistance value: SS
- Dedicated cap for the LM rail mounting hole: Yes
- Applicable to QZ Lubricator: Yes
- Lubrication method: Grease lubrication, oil lubrication, other
- Nipple, plumbing fixture type: PB1021B
- Accuracy Grades: Normal grade (No Symbol), high accuracy grade (H), precision grade (P), super precision grade (SP), ultra precision grade (UP)
- Type using standard material: Iron-based
- Standard grease: AFB-LF
- Standard grease nipples: PB1021B
- Standard seal: SS
- Block surface treatment: AP-CF, AP-C, AP-HC, Other
- Rail surface treatment: AP-CF, AP-C, AP-HC, Other
- With Rack: None
- Rail mounting method: Bolt fixed
- Guide clamper: None
- Minimum service temperature(Centigrade°C): -15
- Maximum service temperature(Centigrade°C): 80
- Long-term Maintenance-free Operation: Available
- Rail joint is available: Yes
- M: 31
- W: 50
- L: 82.8
- LM block size B: 32
- C: 35
- S×L: M6×8
- L1: 61.4
- T: 9.7
- K: 25.5
- N: 7.8
- f0: 5.1
- E: 12
- e0: 4.5
- D0: 3.9
- Weight LM Block KG: 0.4
- LM Rail KG/M: 2.9
- Basic rated load Dynamic rating(C) kN: 48.2
- Static rating(Co) kN: 68.1
- LM Rail size W1: 25
- W2: 12.5
- M1: 17
- F: 40
- d1×d2×h: 6×9.5×8.5
- Material: GCr15 or Stainless steel
- Block Type: Square
- Precision Rating: P0 P6 P5 P4
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
Ships today if ordered in the next 9 hours and 46 minutes.
