THOMSON A101824 STEEL BALL BUSHING BEARING
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: A101824
IMS Product Code: 1803048
Packaging: Sold Individually
Description:

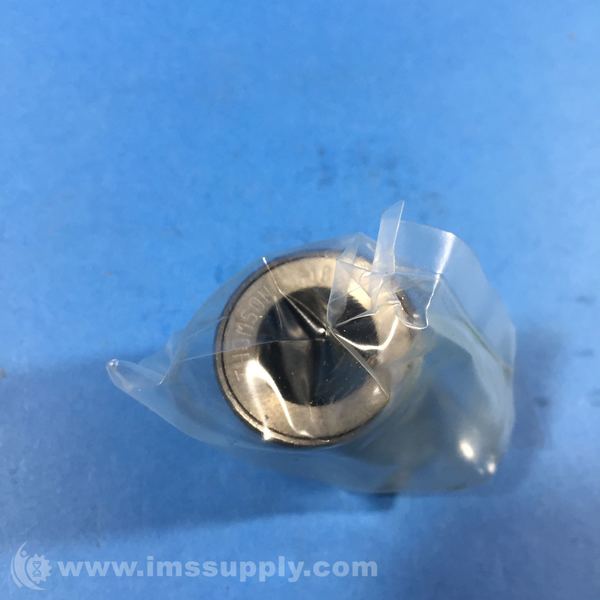

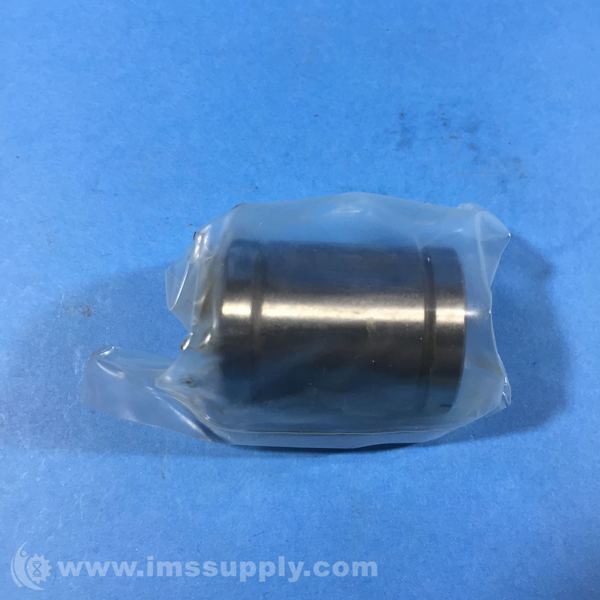

Thomson A101824 Steel Ball Bushing Bearing
Precision steel ball bushing bearing, 0.625 in inside diameter, not self-aligning, closed, not corrosion resistant. Made of steel with 4 ball circuits.
Specifications
- adjustable/not adjustable: Not Adjustable
- alignment style: Fixed
- bearing style: Closed
- bearing type: Ball Bushing
- bore diameter (decimal inch): 0.6250
- bore diameter (mm): 15.87
- bore type: Round
- closed dynamic load capacity: 150
- closed dynamic load capacity (lb.): 150
- closed number of ball circuits: 4
- dynamic load capacity: 150 lbf
- inside diameter: 5/8 in
- inside diameter tolerance: +/-0.001 in
- length: 1.5 in
- load capacity, dynamic: 667.233 N / 150 lbf
- material: Steel
- maximum operating temperature: 500 degrees F
- minimum operating temperature: 0 degrees F
- nominal diameter: 15.875 mm / 0.625 in
- nominal size (decimal inch): 1.5000
- not self-aligning: Not self-aligning
- number of ball circuits: 4
- open dynamic load capacity (lb.): 105
- open number of ball circuits: 3
- outer diameter: 1-1/8 in
- outer diameter (decimal inch - 4 decimals): 1.1250
- overall length: 1-1/2 in
- overall length (decimal inch): 1.4850
- self-alignment: Not self-aligning
- single/twin: Single
- temperature max: 260 °C / 500 °F
- use with shafting class: S
- weight: 0.073 kg / 0.16 lbs
New:
A brand-new, unused, unopened, undamaged item in its original packaging (where packaging is applicable).
Availability: 2 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships on Monday, November 24, 2025
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
