THOMSON FNYBUTWN24 BUSHING BEARING TWIN PILLOW BLOCK
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: FNYBUTWN24
IMS Product Code: 2123174
Packaging: Sold Individually
Description:

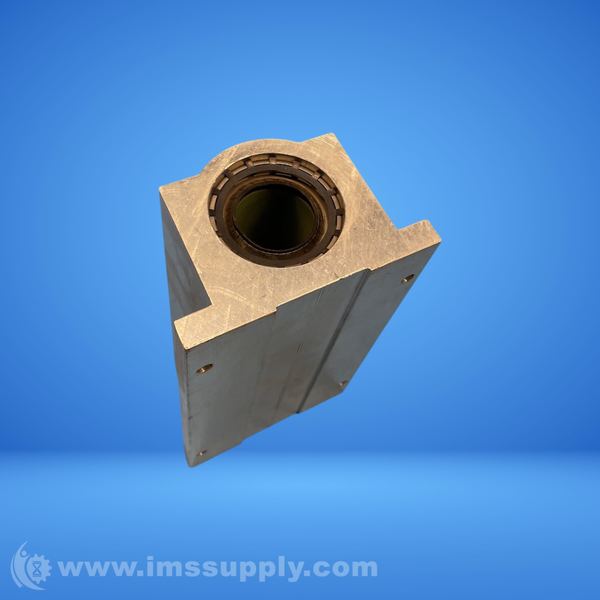

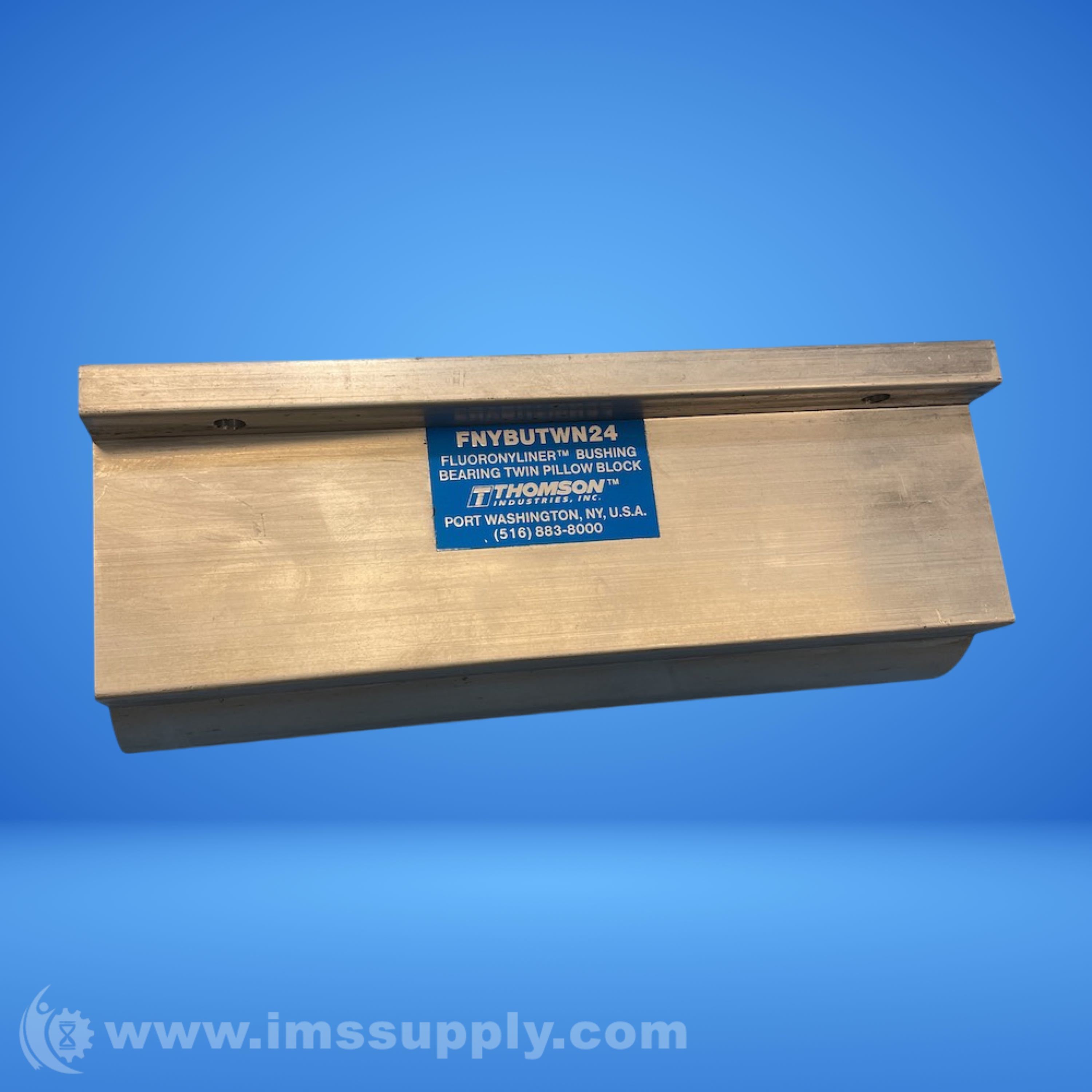

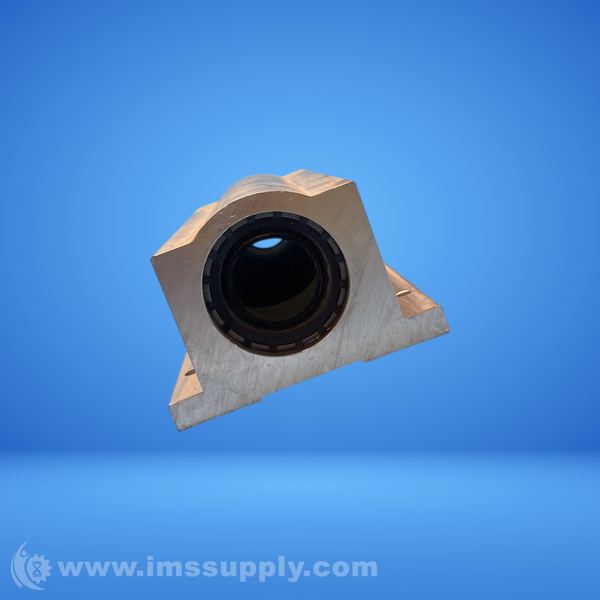

Thomson FNYBUTWN24 Bushing Bearing Twin Pillow Block
Bushing bearing twin pillow block with 1.5 inch nominal diameter, closed housing, and corrosion-resistant construction. Not self-aligning with seals included. Made with FluoroNyliner material.
Specifications
- Adjustable/Not Adjustable: Not Adjustable
- Bearing Material: Aluminum
- Bushing Type: Plain Bushing
- Center Shaft Height: 1.750 in
- Clearance Alignment Type: Standard
- Closed/Open: Closed
- Finish Coating: PTFE
- Food Grade Rated: Not Food Grade
- Housing Type: Closed
- Length: 228.600 mm / 9 in
- Lubrication: Self Lubricating
- Measurement Standard: Inch
- Nominal Diameter: 38.100 mm / 1.5 in
- Operating Temperature Range: -400°F to 550°F (-240°C to 288°C)
- Overall Height: 3.250 in
- Overall Length: 4.750 in
- Overall Width: 4.000 in
- Pillow Block Type: Standard Block - Twin / Tandem Bearings
- Resistance Features: Corrosion Resistant
- Roll Pack: No Roll Pack
- Self Alignment: Not self-aligning
- Series: FluoroNyliner TWN
- Shaft Diameter: 1.500 in
- Single/Twin: Twin
- Static Load Capacity: 14000 lbf
- Static Load Rating: 62,275.103 N / 14000 lbf
- Temperature Max: 85 °C / 185 °F
- Use with shafting class: L SS316
- Weight: 3.538 kg / 7.8 lbs
New - Missing Box:
A new, unused item with no signs of wear. The item may be missing the original packaging.
Availability: 1 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
