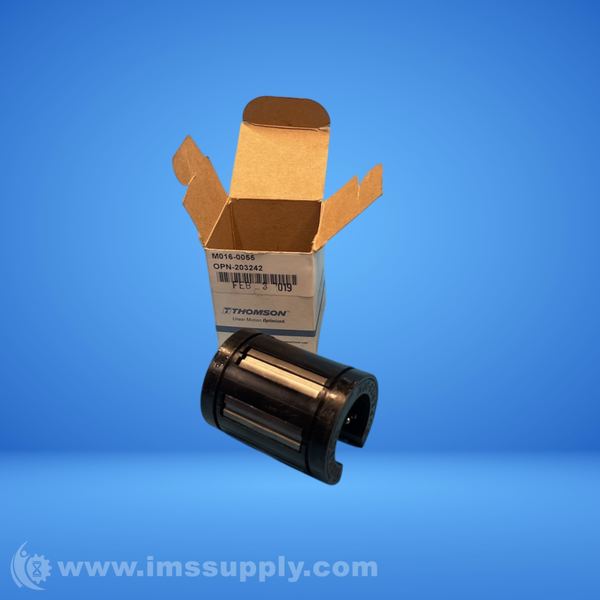

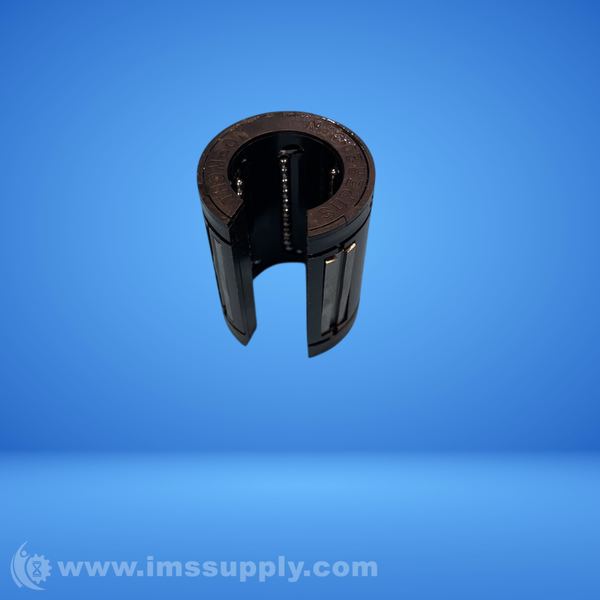

THOMSON OPN203242 OPEN ROUND RAIL BALL BUSHING
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: OPN203242
IMS Product Code: 2161126
Packaging: Sold Individually
Description:
Thomson OPN203242 Open Round Rail Ball Bushing
Precision Steel Series, 1.2500 in Shaft Diameter, 2.0010 in Outside Diameter, 2.605 / 2.625 in Overall Width, 400 lbf Load Capacity
Specifications
- Series: Precision Steel
- Shaft Diameter: 1.2500 in
- Outside Diameter: 2.0010 in
- Overall Length: 2.6250 in
- Closure Type: Open
- Bushing Type: Ball Bushing
- Material: Steel
- Dynamic Load Capacity: 400 lbf
- Operating Temperature Range: Maximum of +500 �F
- Precision Rating: Not Rated
- Self-Alignment: Not Self-Aligning
- Number of Ball Circuits: 5
- Temperature Max: 260 �C / 500 �F
- Use with shafting class: L
- Weight: 0.408 kg / 0.9 lbs
- Nominal Diameter: 31.750 mm / 1.25 in
- Length: 66.675 mm / 2.625 in
- Inner Ring Width: 2.009 in
- Retaining Ring Groove Diameter: 1.991 / 2.009 in
- Wiper Type: No Wiper
- Inside Diameter Tolerance: +/-0.001 in
- Outside Diameter Tolerance: +/-0.00045 in
- Slot Width: 0.63 in
- Accelerated Speed: 450 fps
- Minimum Operating Temperature: 0 �F
- Maximum Operating Temperature: 500 �F
- Slot Angle (Degrees): 50 Degrees
- Steady State Speed: 10 fps

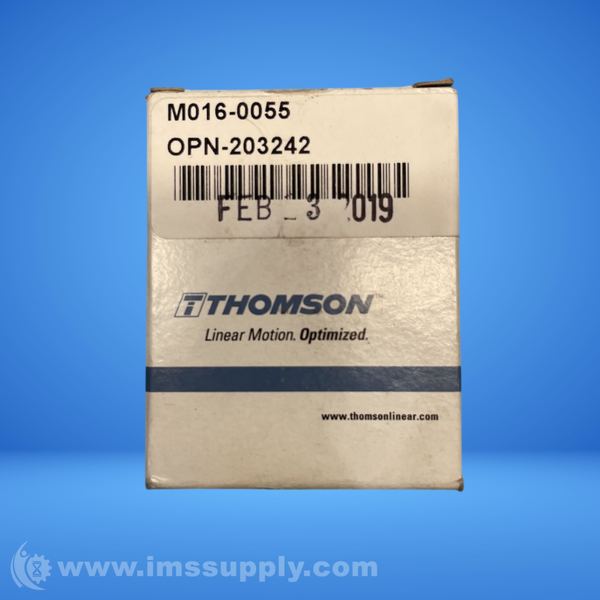

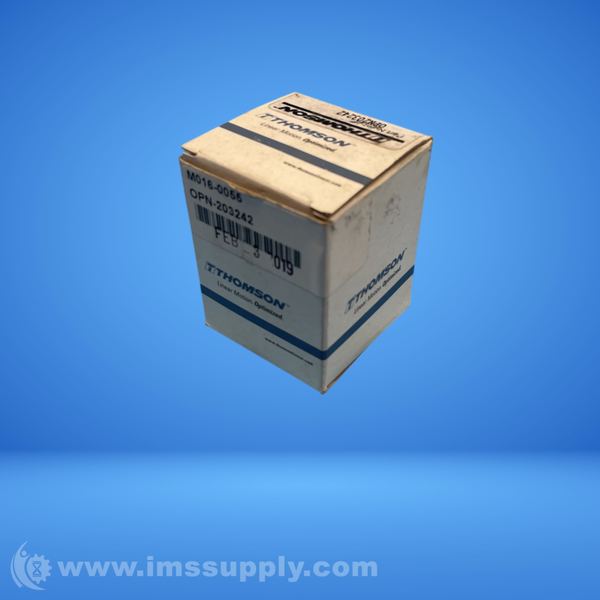

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 10 In Stock
Ships Tomorrow
Emergency after hours shipping may be available.
Call (888) 437-6645 for more information.
