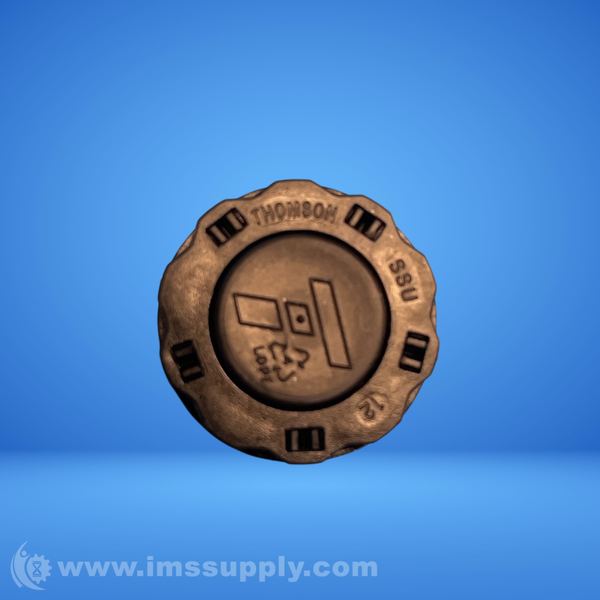

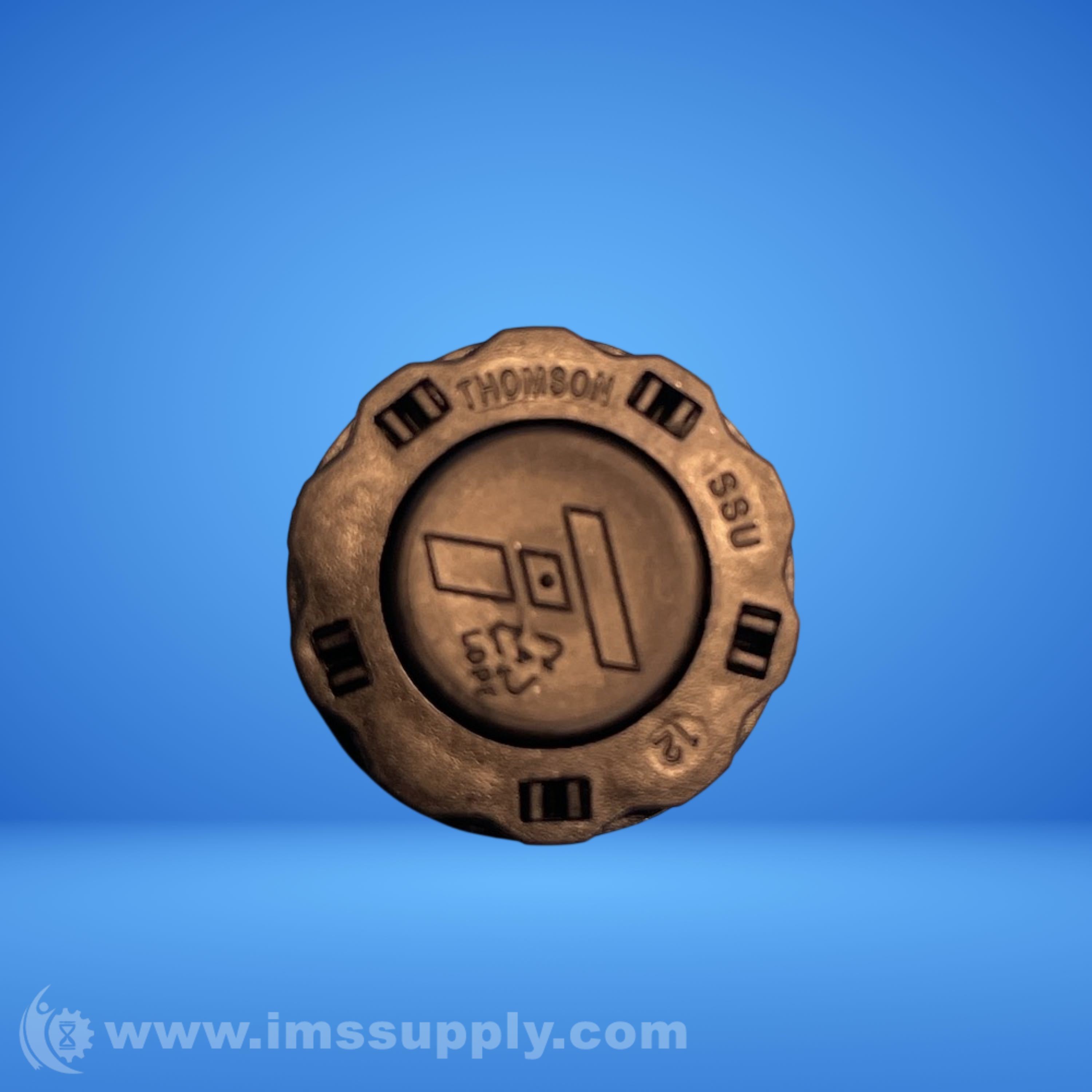

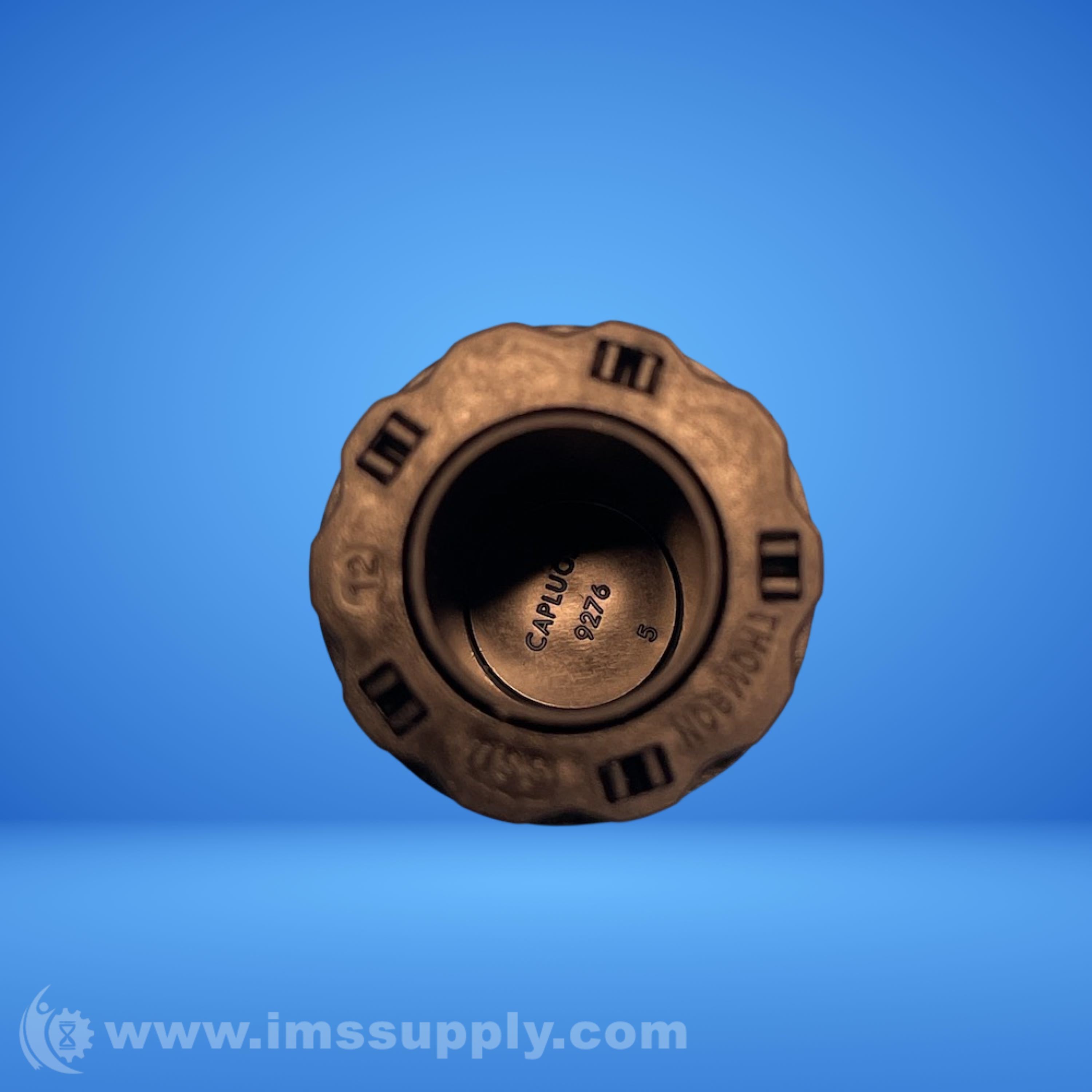

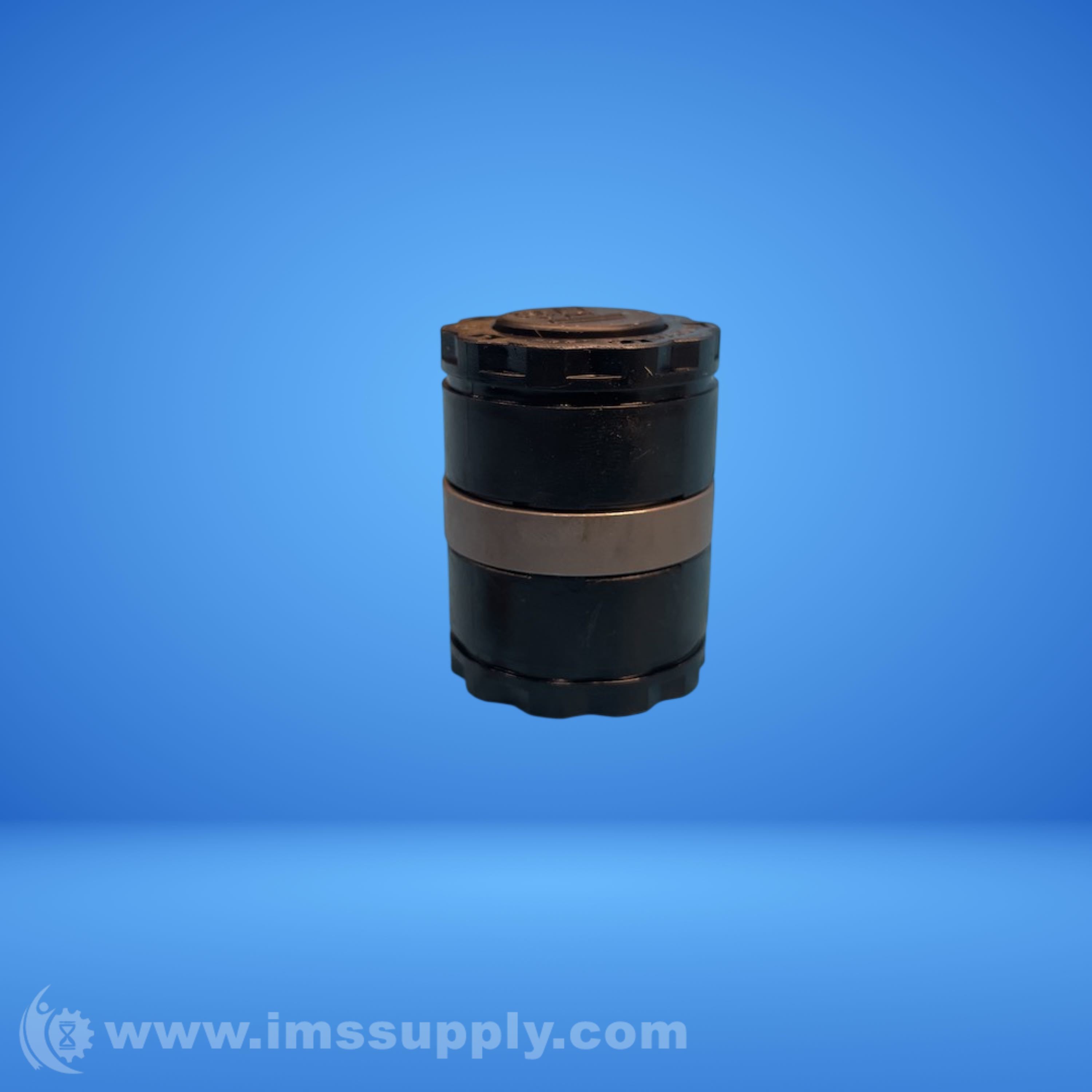

THOMSON SSU12 CLOSED ROUND RAIL BALL BUSHING
Quick Overview
Manufactured By: THOMSON
Manufacturer Part Number: SSU12
IMS Product Code: 2161797
Packaging: Sold Individually
Description:
Thomson SSU12 Closed Round Rail Ball Bushing
0.7500 in Shaft Diameter, 1.2510 in Outside Diameter, 1.605 / 1.625 in Overall Width, 1130 lbf Load Capacity
Specifications
- Bushing Type: Ball Bushing
- Shaft Diameter: 0.7500 in
- Measurement Standard: Inch
- Outside Diameter: 1.2510 in
- Overall Length: 1.6250 in
- Closure Type: Closed
- Overall Width: 1.605 / 1.625 in
- Inner Ring Width: 1.285 in
- Bearing Material: Steel Plastic
- Clearance Alignment Type: Self-Aligning
- Dynamic Load Capacity: 1130 lbf
- Operating Temperature Range: Maximum of +185 �F
- Precision Rating: Not Rated
- Retaining Ring Groove Diameter: 1.255 / 1.285 in
- Wiper Type: No Wiper
- Series: Super Smart
- Inside Diameter Tolerance: -0.0005 in
- Static Load Capacity: 1130 lbf
- Material: Delrin
- Accelerated Speed: 450 fps
- Maximum Operating Temperature: 185 �F
- Minimum Operating Temperature: 0 �F
- Bore Diameter (mm): 19.05
- Bore Type: Round
- Alignment Style: Self
- Open Number of Ball Circuits: 8
- Closed Dynamic Load Capacity: 1130
- Overall Length (Decimal Inch): 1.6050
- Minimum Slot Width: 0.4400
- Closed Number of Ball Circuits: 10
- Distance Between Retain Ring Grooves: 1.285
- Retain Ring Groove Minimum: 0.0550
- Nominal Size (Decimal Inch): 1.6250

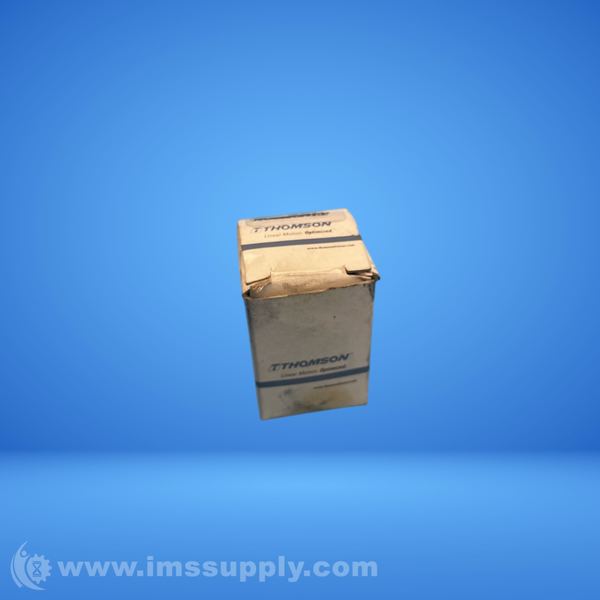

New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 2 In Stock
