TIMKEN 3732 TAPERED ROLLER BEARING CUP
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: 3732
IMS Product Code: 1838676
Packaging: Sold Individually
Description:

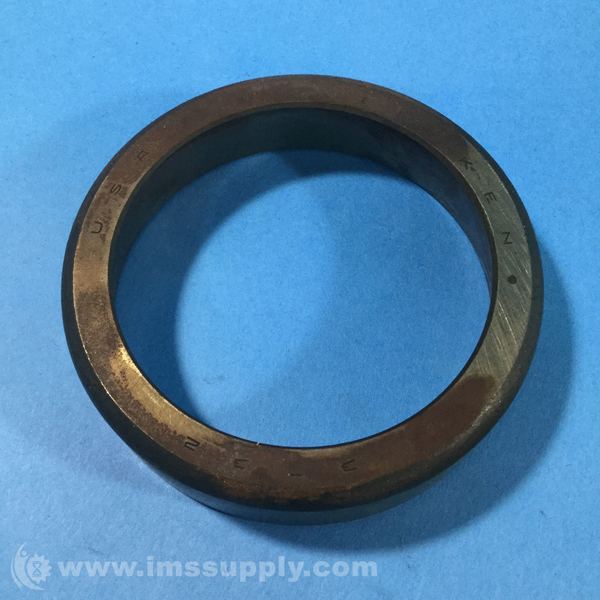

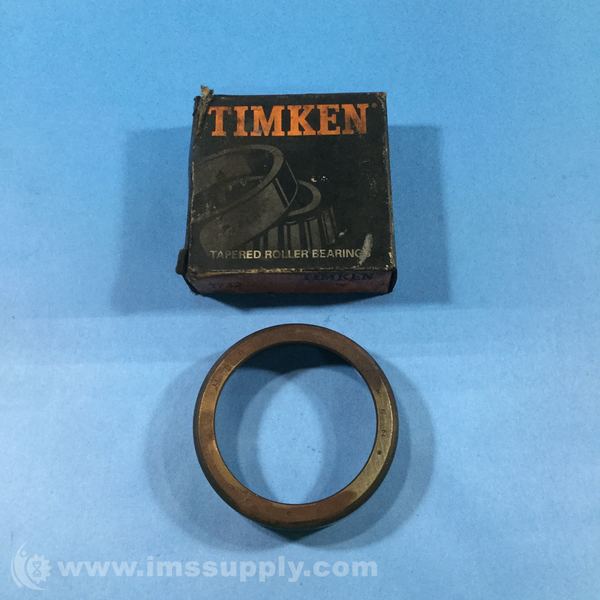

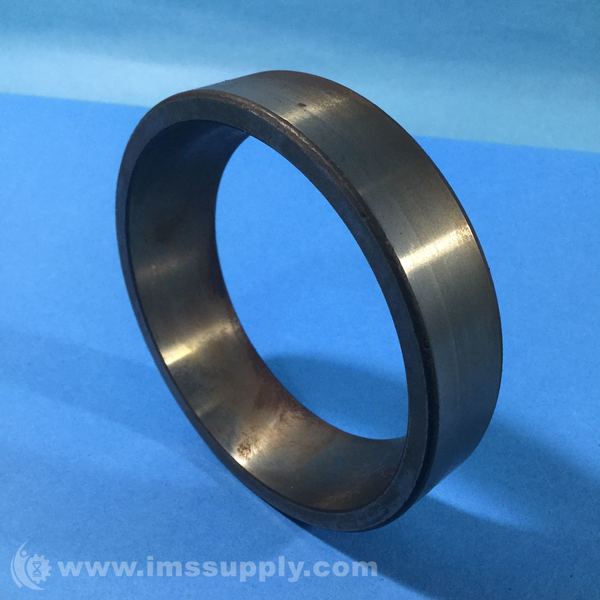

Timken 3732 Tapered Roller Bearing Cup
Tapered roller bearing cup with imperial design units. Part of the series 3700, this component is designed for smooth and quiet wheel rotation, minimizing friction and supporting vehicle weight.
Specifications
- C - Cup Width: 0.9375 in / 23.813 mm
- D - Cup Outer Diameter: 3.8750 in / 98.425 mm
- Da - Cup Frontface Backing Diameter: 3.56 in / 90.42 mm
- Db - Cup Backface Backing Diameter: 3.31 in / 84.07 mm
- Design Units: Imperial
- r - Cup Backface "To Clear" Radius1: 0.130 in / 3.30 mm
- Series: 3700
- Outer ring width C (inch): 0.9375
- Outer ring width C (mm): 23.812
- Outside Diameter (inch): 3.875
- Outside Diameter (mm): 98.425
- Precision Level: Class 2 (Standard) Tolerance
- Max Housing Fillet Radius r (inch): 0.13
- Max Housing Fillet Radius r (mm): 3.3
- Factor K: 1.73
- Factor e: 0.34
- Factor Y: 1.77
- Cg - Geometry Factor4: 0.0903
- e - ISO Factor2: 0.34
- Y - ISO Factor3: 1.77
- Weight: 455g
Used:
A previously used, fully functional product that may have some signs of cosmetic wear.
Availability: 1 In Stock
Ships today if ordered in the next 15 hours and 19 minutes.
