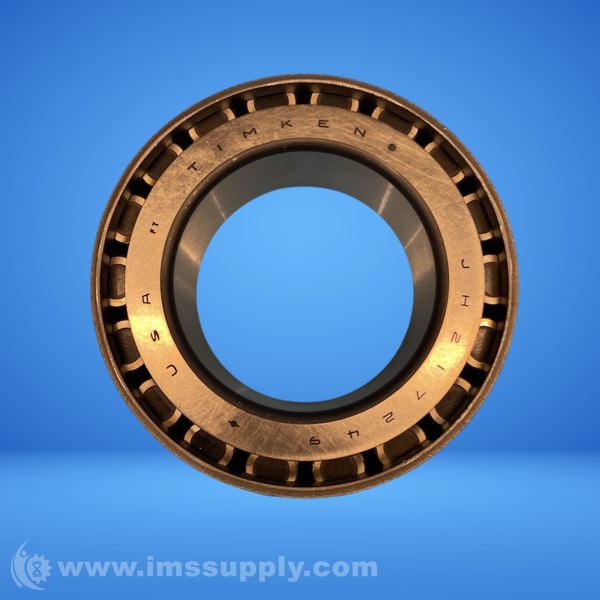

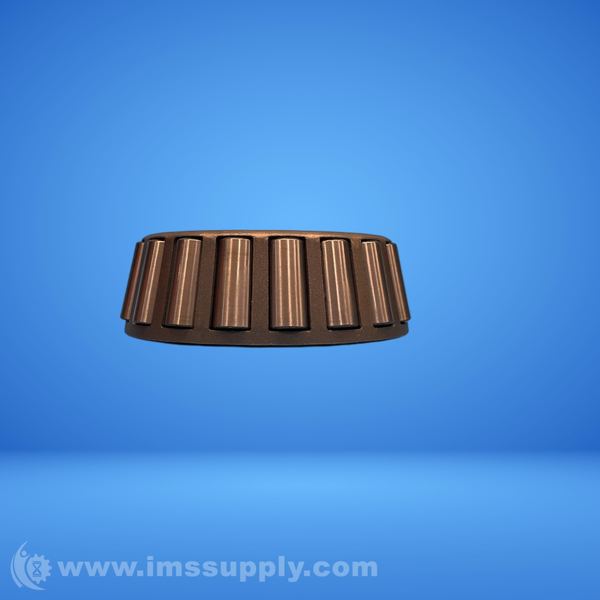

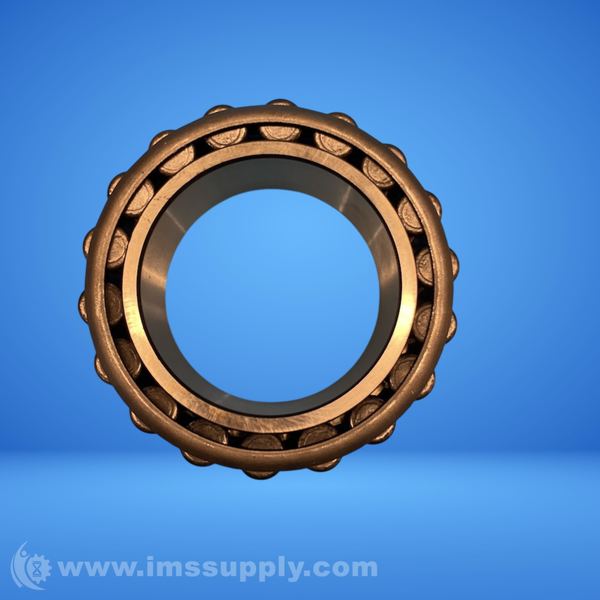

TIMKEN JH217249 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: JH217249
IMS Product Code: 2163310

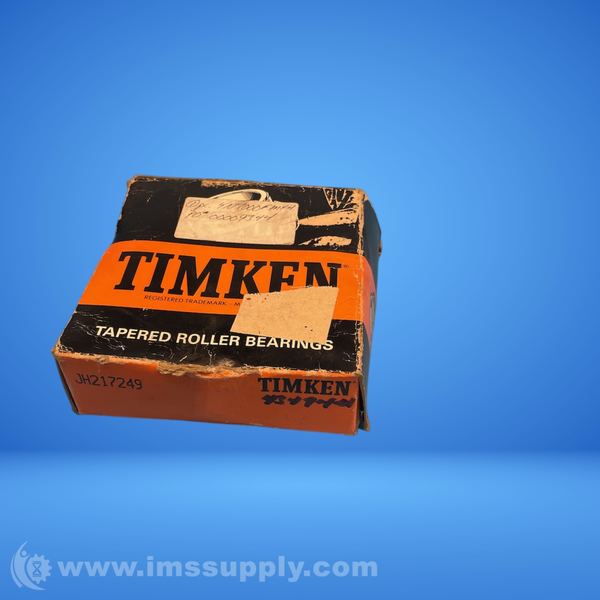

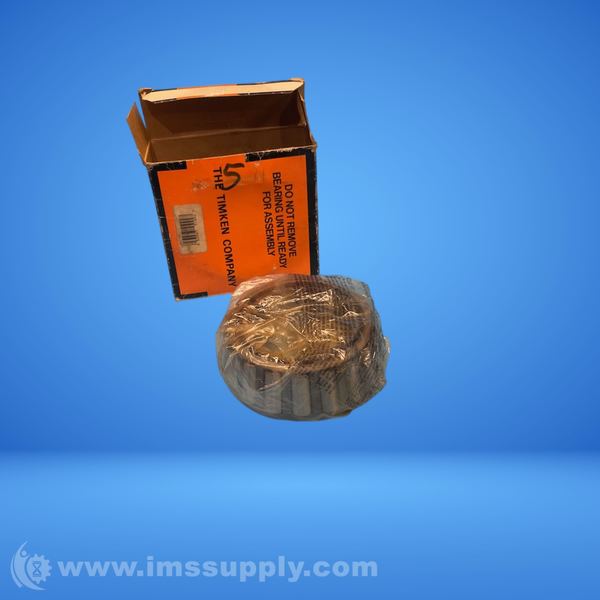

Packaging: Sold Individually
Description:
Timken JH217249 Tapered Roller Bearing
Tapered roller bearing consisting of inner ring assembly and outer ring, typically mounted in opposing pairs on a shaft.
Specifications
- Series: H217200
- Cone Part Number: JH217249
- Bore: 85 mm
- Inner Ring Width: 46 mm
- Dynamic Radial Load Rating - 90M Revs (C90): 102000 N
- Dynamic Radial Load Rating - 1M Revs (C1): 393000 N
- C1 - Dynamic Radial Rating (Two-Row, 1 million revolutions): 685000 N
- Static Radial Load Rating (C0): 446000 N
- Ca90 - Dynamic Thrust Rating (90 million revolutions): 58100 N
- K Factor: 1.76
- G1 Factor: 169
- G2 Factor: 33.3
- Geometry Factor (Cg): 0.0924
- Weight: 3.3 kg
- Max Shaft Fillet Radius: 3.050 mm
- Shaft Backing Shoulder Diameter - Frontface: 95 mm
- Shaft Backing Shoulder Diameter - Backface: 101 mm
- Cage Location Relative to Frontface: 4.1 mm
- Cage Location Relative to Backface: 0.5 mm
- Effective Center Location: -11.9 mm
- Cage Type: Steel
- Seals Or Shields: Open Type
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 1 In Stock
Ships today if ordered in the next 10 hours and 24 minutes.
