TIMKEN JM624649 TAPERED ROLLER BEARING
Quick Overview
Manufactured By: TIMKEN
Manufacturer Part Number: JM624649
IMS Product Code: 1923659

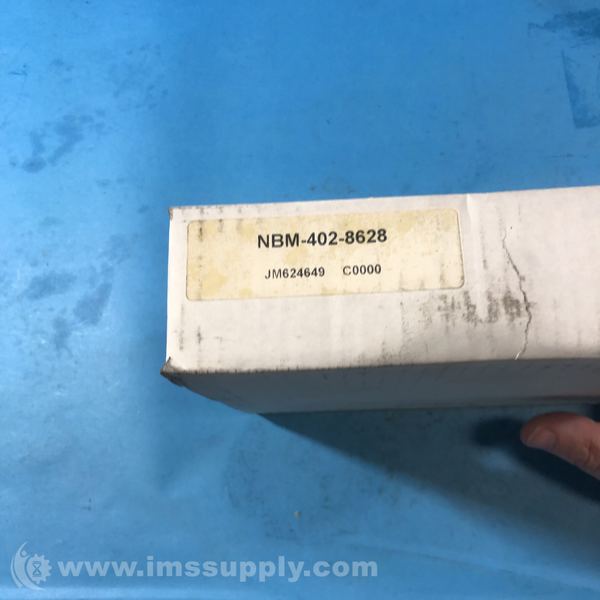

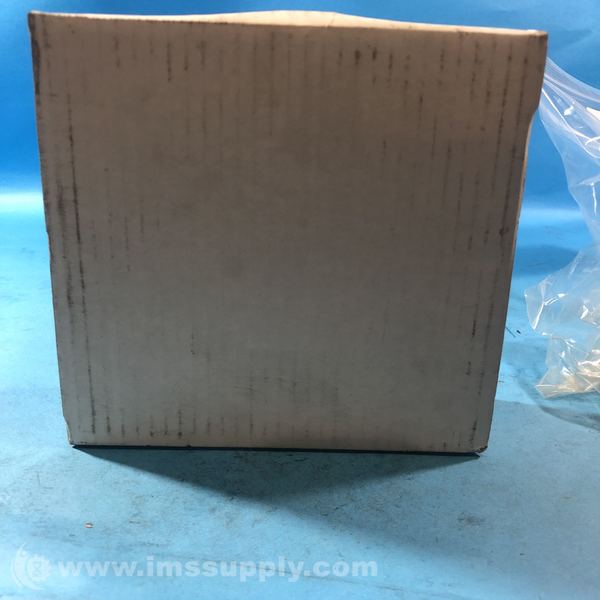

Packaging: Sold Individually
Description:

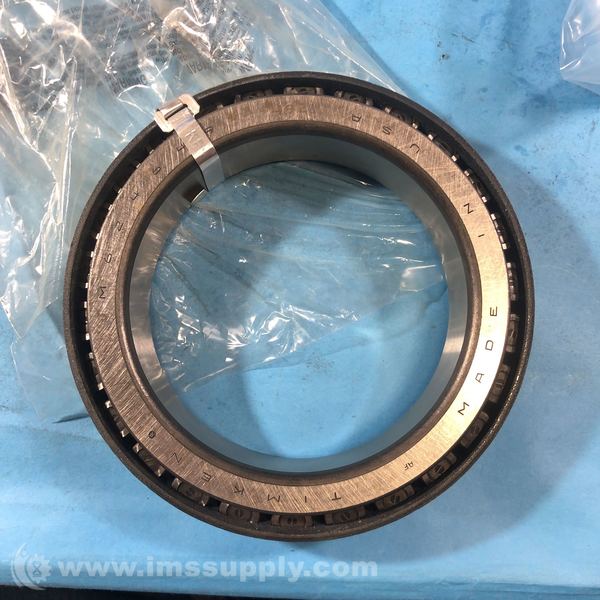

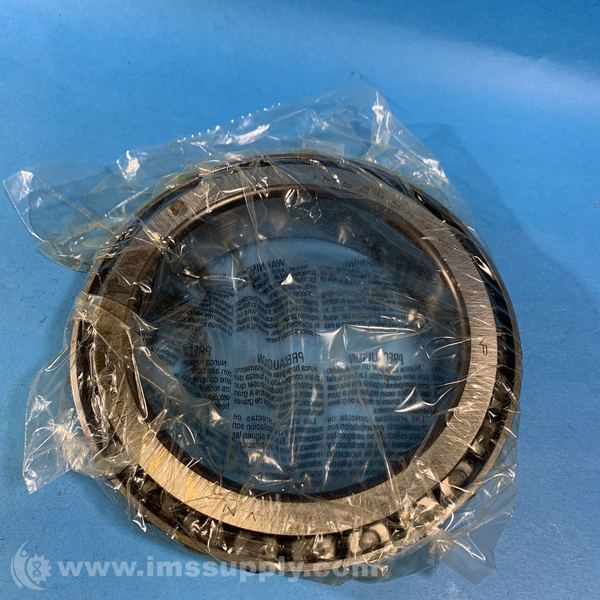

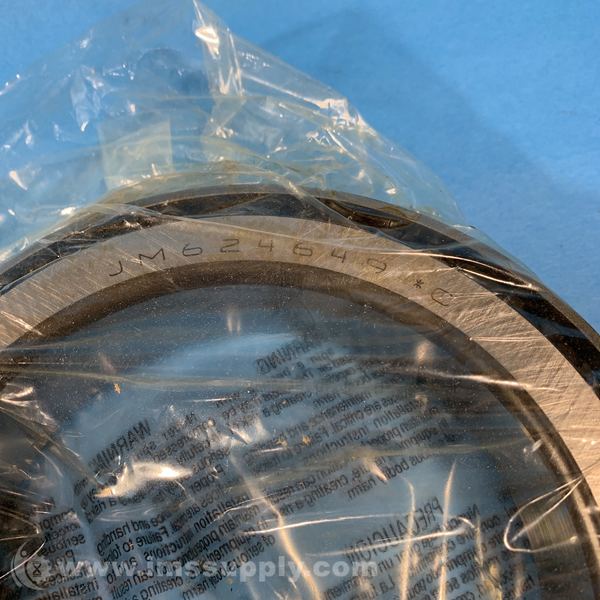

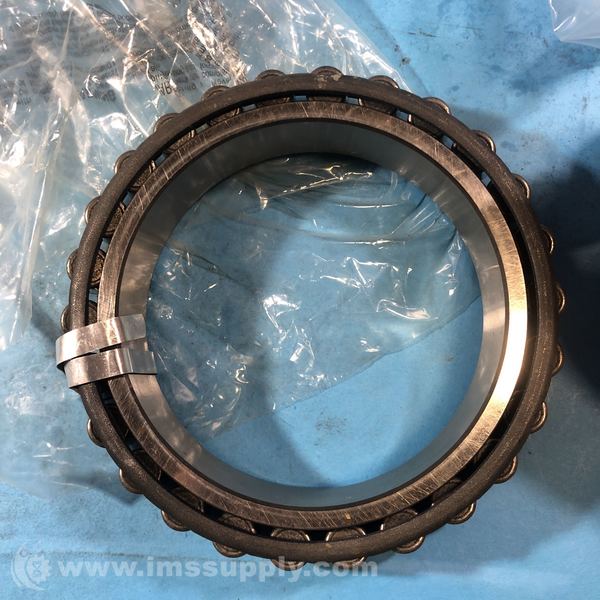

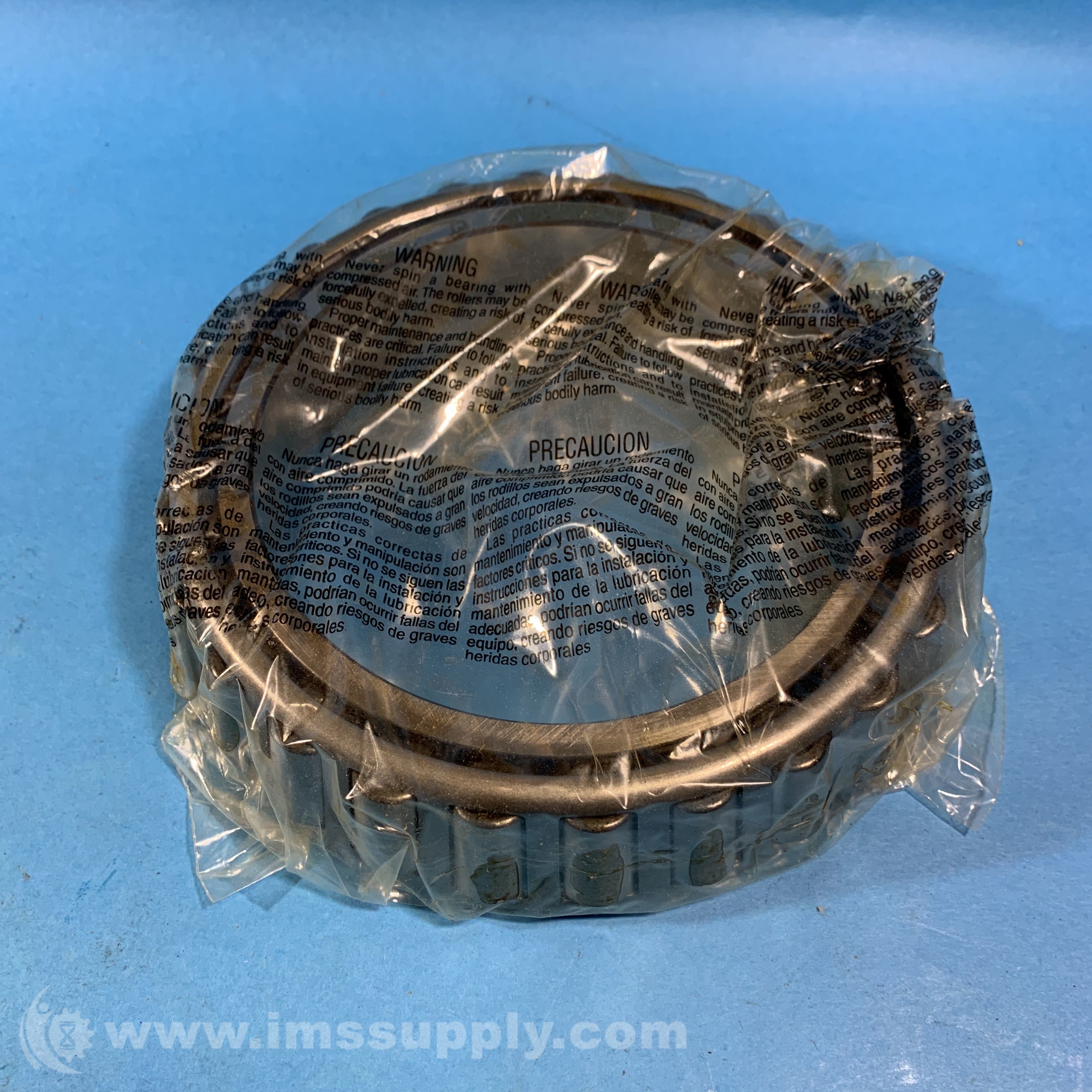

Timken JM624649 Tapered Roller Bearing
Single Tapered Roller Bearing Cone
Specifications
- Series: M624600
- Cone Part Number: JM624649
- Design Units: METRIC
- Cage Type: Stamped Steel
- d - Cone Bore: 120 mm
- B - Cone Width: 36 mm
- R - Cone Backface "To Clear" Radius: 3.560 mm
- da - Cone Frontface Backing Diameter: 128 mm
- db - Cone Backface Backing Diameter: 135 mm
- Ab - Cage-Cone Frontface Clearance: 3.3 mm
- Aa - Cage-Cone Backface Clearance: 3.3 mm
- a - Effective Center Location: 0 mm
- C90 - Dynamic Radial Rating (90 million revolutions): 64000 N
- C1 - Dynamic Radial Rating (1 million revolutions): 247000 N
- C0 - Static Radial Rating: 377000 N
- Ca90 - Dynamic Thrust Rating (90 million revolutions): 45300 N
- K - Factor: 1.41
- G1 - Heat Generation Factor (Roller-Raceway): 227
- G2 - Heat Generation Factor (Rib-Roller End): 61.6
- Cg - Geometry Factor: 0.108
- Internal Diameter (d): 4.724"
- Width Through Bore (B): 1.417"
- Weight: 4.62lbs
- Bearing Type: Single Tapered Roller Bearing Cone
New - Open Box:
A new, unused item with no signs of wear. The item has its original packaging but it is not sealed.
Availability: 6 In Stock
Ships today if ordered in the next 11 hours and 33 minutes.
